Sennheiser XSW 1-ME2 B-Band
Garantujemo najnižu cenu!
The XSW 1-ME2 UHF Lavalier Microphone Set from Sennheiser is an easy to use all-in-one wireless system for presenters and moderators. It can be used to capture audio for speech, interviews, and presentations.

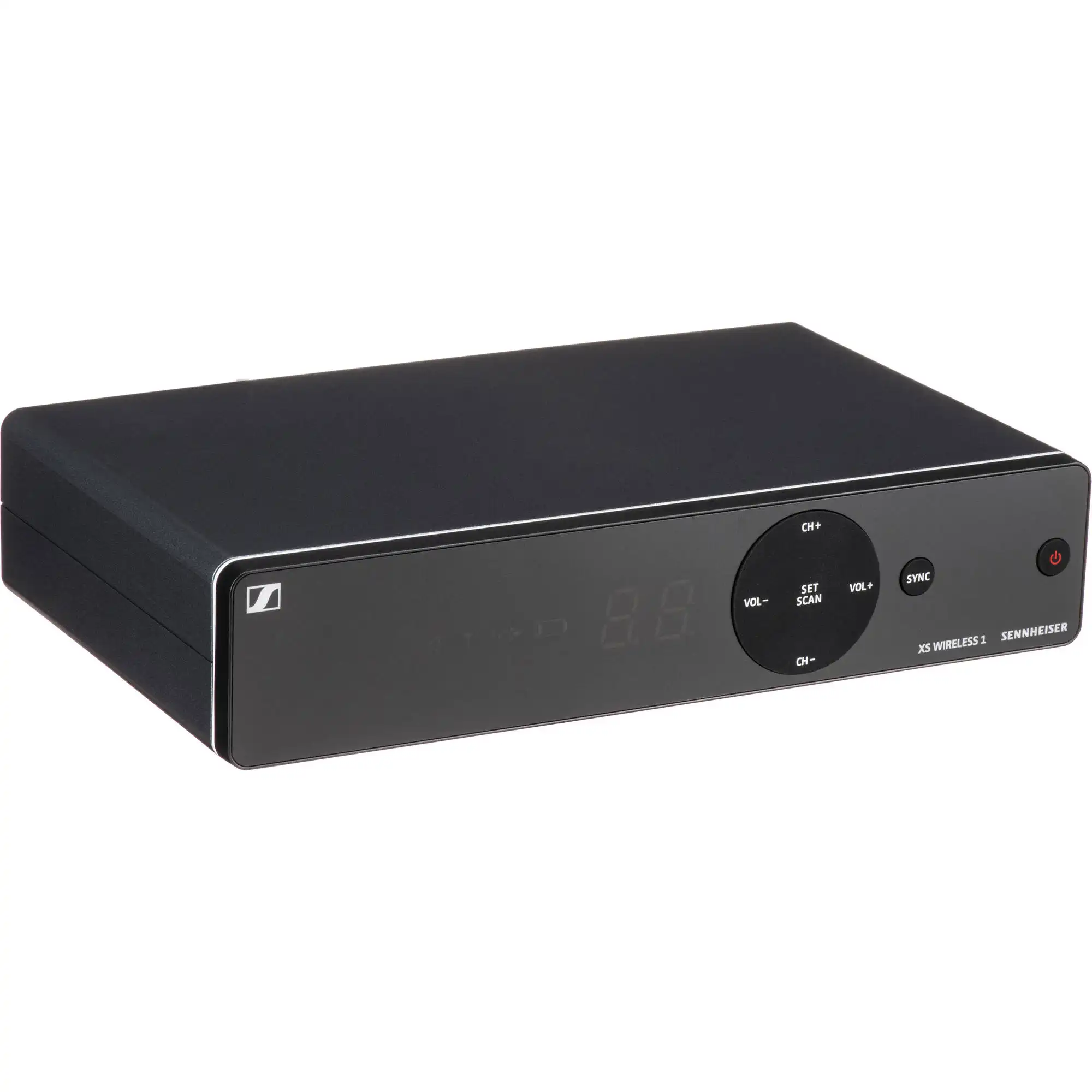

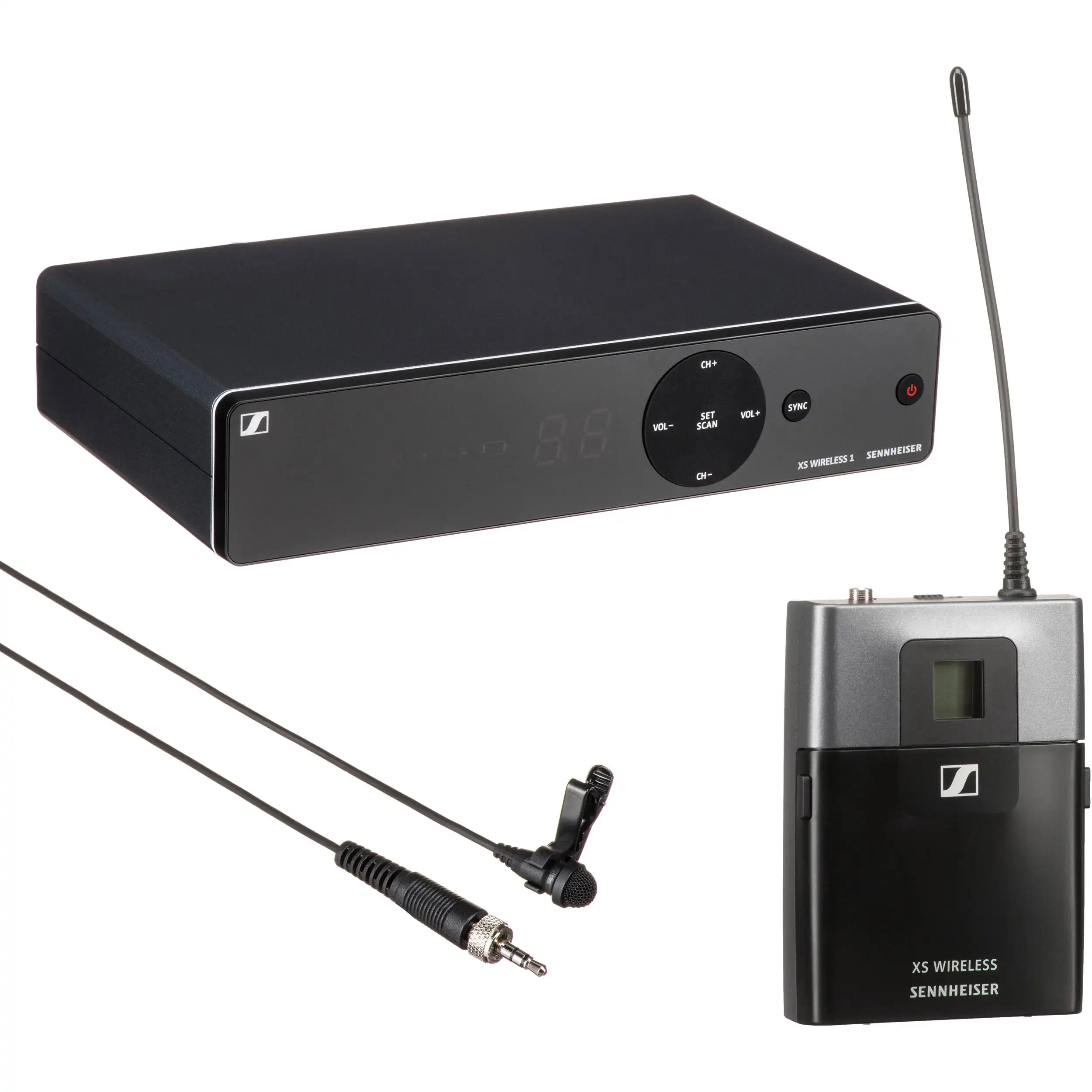

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a bodypack transmitter and a lavalier microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
Featuring Sennheiser's evolution Lavalier ME 2-II
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception
Sennheiser XSW 1-ME2 Specs
System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Signal to Noise Ratio ≥ 103 dBA
Total Harmonic Distortion ≤ 0.9%
Temperature Range Operation: 32 to 104°F (0 to +40°C)
Storage -4 to 158°F (-20 to 70°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

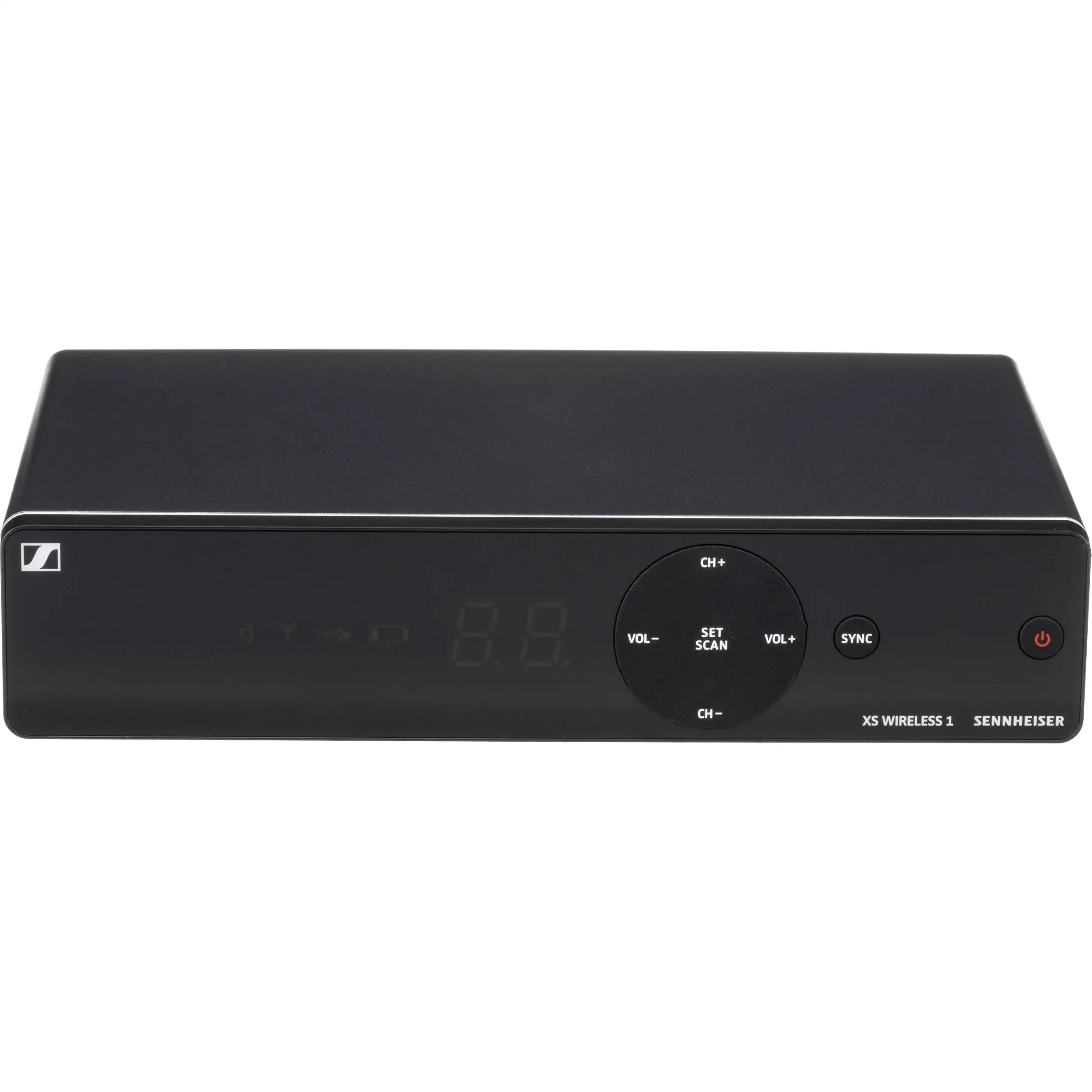

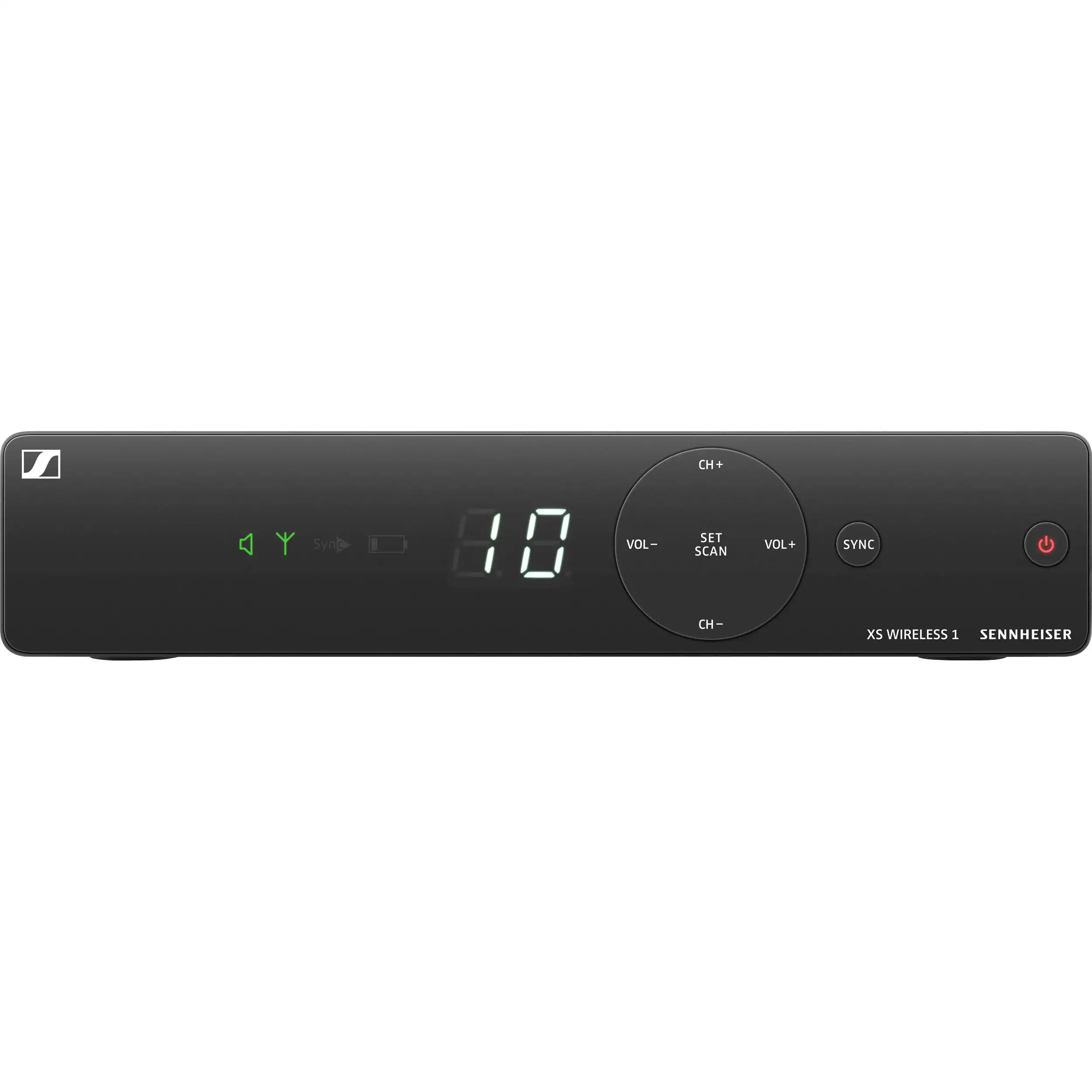

Receiver
Principle Double superheterodyne
Diversity Antenna switching diversity via internal antennas
Sensitivity < 3 μV at 52 dBA RMS S/N (at peak deviation)
Frequency Response 50 Hz to 16 kHz (-3 dB)

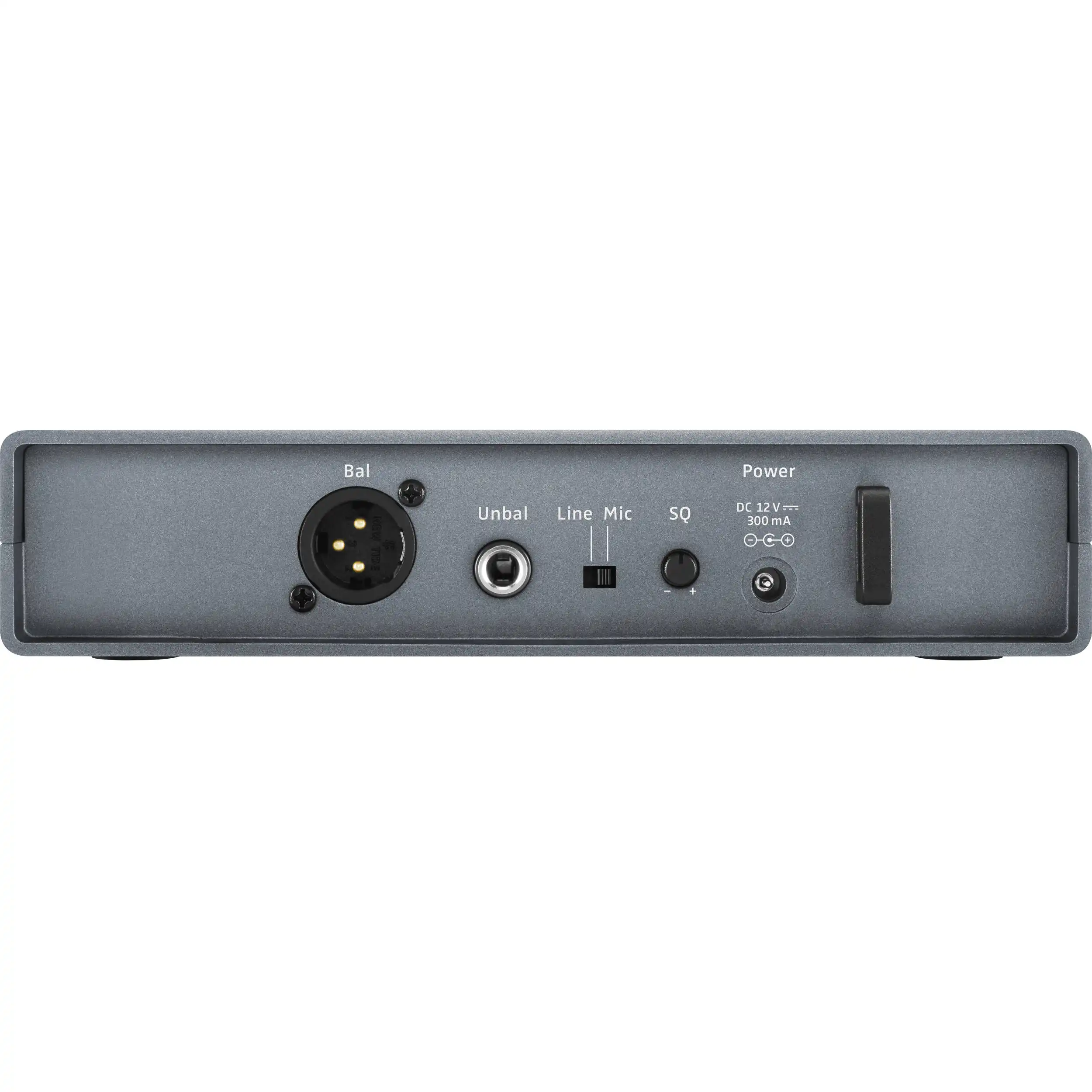

Max Output Voltage At Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range Audio: 45 dB, adjustable in 5-dB steps
Power Supply 12 VDC nominal, 300 mA
Squelch Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Material of Construction ABS housing
Dimensions 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight 12 oz (340 g)

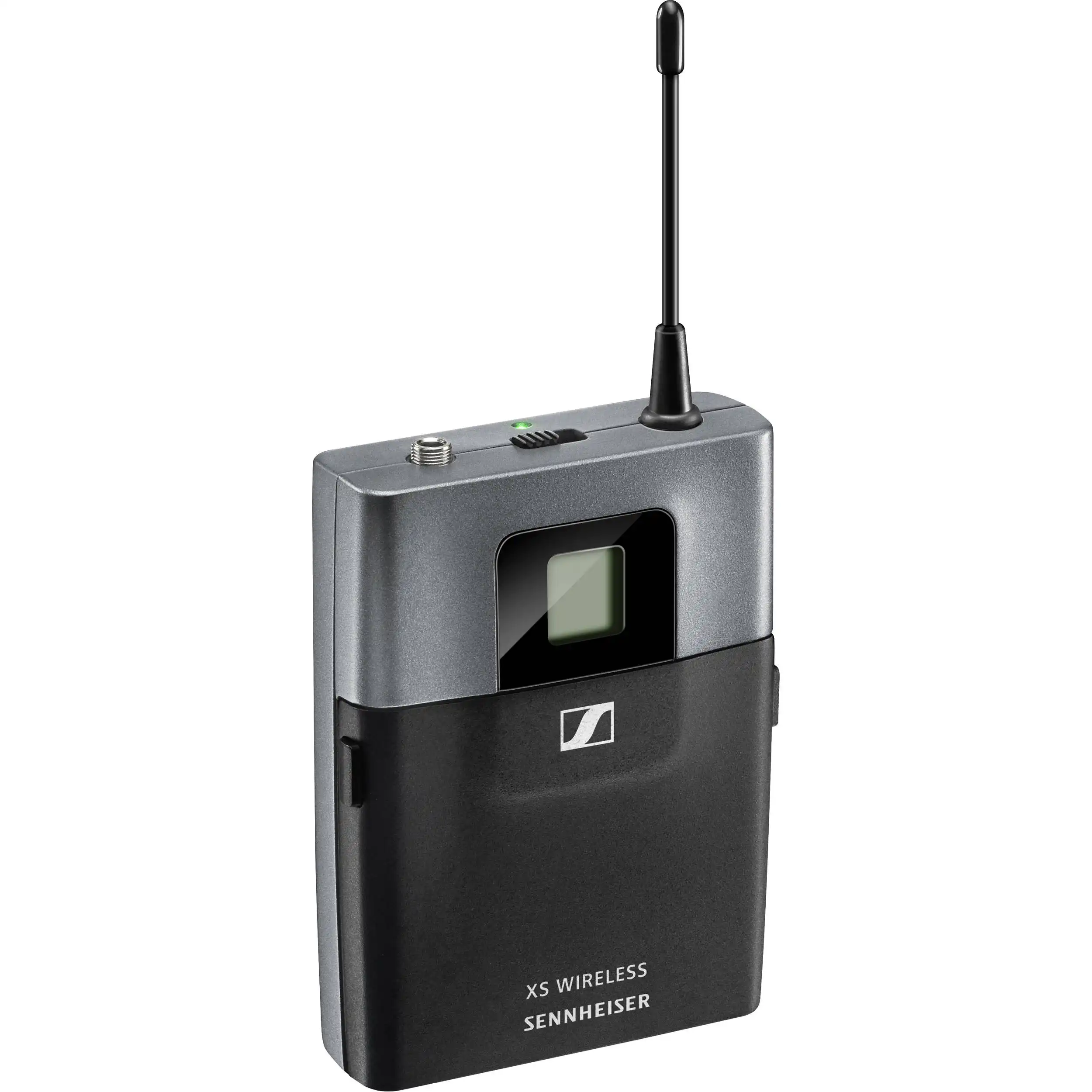

Bodypack Transmitter
Output Power 10 mW
Frequency Response Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input 1/8" (3.5 mm) jack socket
Input Voltage Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply 2 x AA batteries, 1.5 V
Operating Time Approximately 10 hours
Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction Rugged ABS housing
Dimensions 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
Weight 3.4 oz (95 g)
Lavalier Microphone Specs
Microphone Type Condenser, pre-polarized
Sensitivity 20 mV/Pa
Polar Pattern Omnidirectional
Max SPL 130 dB
