The WO518 is an omni lavaliere clip-on condenser microphone with a frequency response tailored to give accurate, intelligible speech recognition. It is ideally suited for the interview programs of TV
broadcasting and video production. The extended bass frequency range of this mic makes it the best choice for cello and double bass sound pick-up.

WO518DXLR TA3F connector for PS418D preamp (either phantom power or battery)

Features

• Boosted wire mesh grille increases the HF response
• Wind screen foam to reduce those unwanted "pop" sounds
• Flat and wide frequency response, high SPL, high dynamic range, low distortion
• WO518TQG is for wireless systems

Application

• TV Broadcasting
• Speech
• Cello
• Double Bass
• Eastern Strings

Type: Back electret, Ø6 mm (Ø0.24")
Polar Pattern: Omni

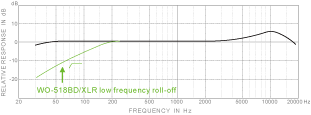

Frequency Response: 60-15,000 Hz



Low Frequency Filter: WO518DXLR 80Hz, 12 dB/oct/(PS418D)
Sensitivity:
                WO518TQG -32 dBV/Pa (25.1 mV)
                WO518XLR  -44 dBV/Pa (6.3 mV)
                WO518DXLR Phantom: -40 dBV/Pa (10 mV) Battery: -43 dBV/Pa (7.1 mV)

Output Impedance:  200 Ω
                              EA0ADXLR Phantom: 200 Ω; Battery: 600 Ω

Minimun Load Impedance: 1,000 Ω
                                       WO518DXLR Phantom:1,000 Ω;Battery:2,000 Ω

S/N Ratio: WO518XLR 72 dB
                WO518DXLR Phantom: 76 dB; Battery: 75 dB

Equivalent Output Noise: WO518XLR 22 dB
                                    WO518DXLR  Phantom: 18 dB; Battery: 19 dB

Max. SPL: WO518XLR 132 dB SPL
               WO518DXLR Phantom:130 dB SPL;Battery: 126 dB SPL

Dynamic Range: WO518XLR 110 dB SPL
                        WO518DXLR  Phantom:112 dB;Battery:107 dB

Power Requirements: WO518TQG 1.5~9V DC
                               WO518XLR 12~52V DC, 3.5 mA
                               WO518DXLR Phantom: 12~52V DC, 3.5 mA;Battery: 1.5VDC AA/UM3

Finish: Black
Connector: WO518TQG TA4F, 1.5-meter cable
                WO518XLR TA3F, 1.5-meter cable
                WO518DXLR TA3F, 1.5-meter cable

Dimensions: Microphone: Ø8 × 12 mm (Ø0.31" × 0.47")
                   WO518XLR PS418S: Ø21 × 106 mm (Ø0.83" × 4.18");
                   WO518DXLR PS418D: H × W × D 84 × 63 × 22.5 mm (3.3" × 2.48" × 0.89")

Net Weight: Microphone: 20 g (0.7 oz);
                  PS418S: 118 g (4.2 oz)(Only WO518XLR);
                  PS418D: 245 g (8.6 oz)(Only WO518DXLR)
Accessories Furnished: WO518TQG S12 HF boost windscreen,S13 windscreen, clip,;
                                 WO518XLR S12 HF boost windscreen,S13 windscreen, clip,PS418S preamp
                                 WO518DXLR S12 HF boost windscreen,S13 windscreen, clip, 1.5V AA;alkaline battery, PS418D preamp

Packaging: Colorful outer packaging
