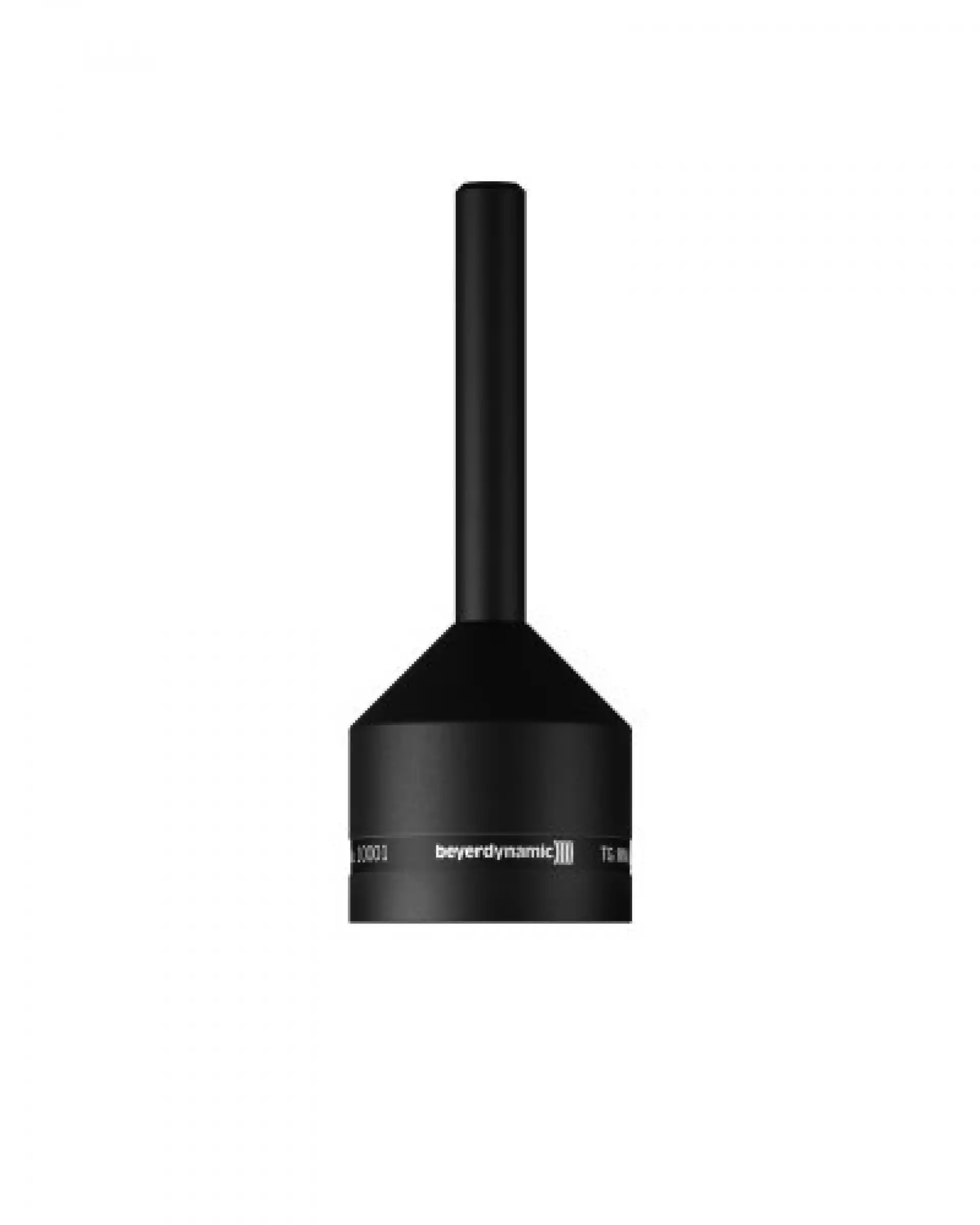

With the TG MM1w, the TG 1000 digital wireless system presents an all-in-one solution. The wireless system can now be used not only to mike speaking and singing voices and musical instruments, but also to calibrate ELA and PA systems in the theatre, at live concerts or at festivals.

Due to the linear frequency response of TG 1000 the TG MM1w behaves in the same way as the wired version MM1. The interchangeable microphone capsule can be easily fitted on the TG 1000 handheld transmitter and makes it possible to calibrate simply, without needing to lay meters of cable.

Each microphone is supplied with a printout of an individually measured 0° frequency response curve. The measured data can be requested by sending the serial number of the microphone head to AudioSystems@beyerdynamic.de.

Features:

Omnidirectional polar pattern
linear frequency response
Compact and robust housing
Made in Germany

Specifications:

Transducer type . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle . . . . . . . . . . . . Pressure
Frequency response . . . . . . . . . . . . 30 - 20,000 Hz
Polar pattern . . . . . . . . . . . . . . . . . Omnidirectional, diffuse field equalised
Open circuit voltage at f = 1 kHz . . . . . . 15 mV/Pa (= -36.5 dBV) ± 1 dB* Sound pressure level . . . . . . . . . . . 120 dB*
S/N ratio rel. to 1 Pa. . . . . . . . . . . . 56 dB* A-weighted equivalent
SPL . . . . . . 27 dB
Dimensions
Head diameter. . . . . . . . . . . . . . . . 9 mm
Shaft diameter. . . . . . . . . . . . . . . . 36 mm
Length. . . . . . . . . . . . . . . . . . . . . . 94 mm
Weight . . . . . . . . . . . . . . . . . . . . . 96 g
