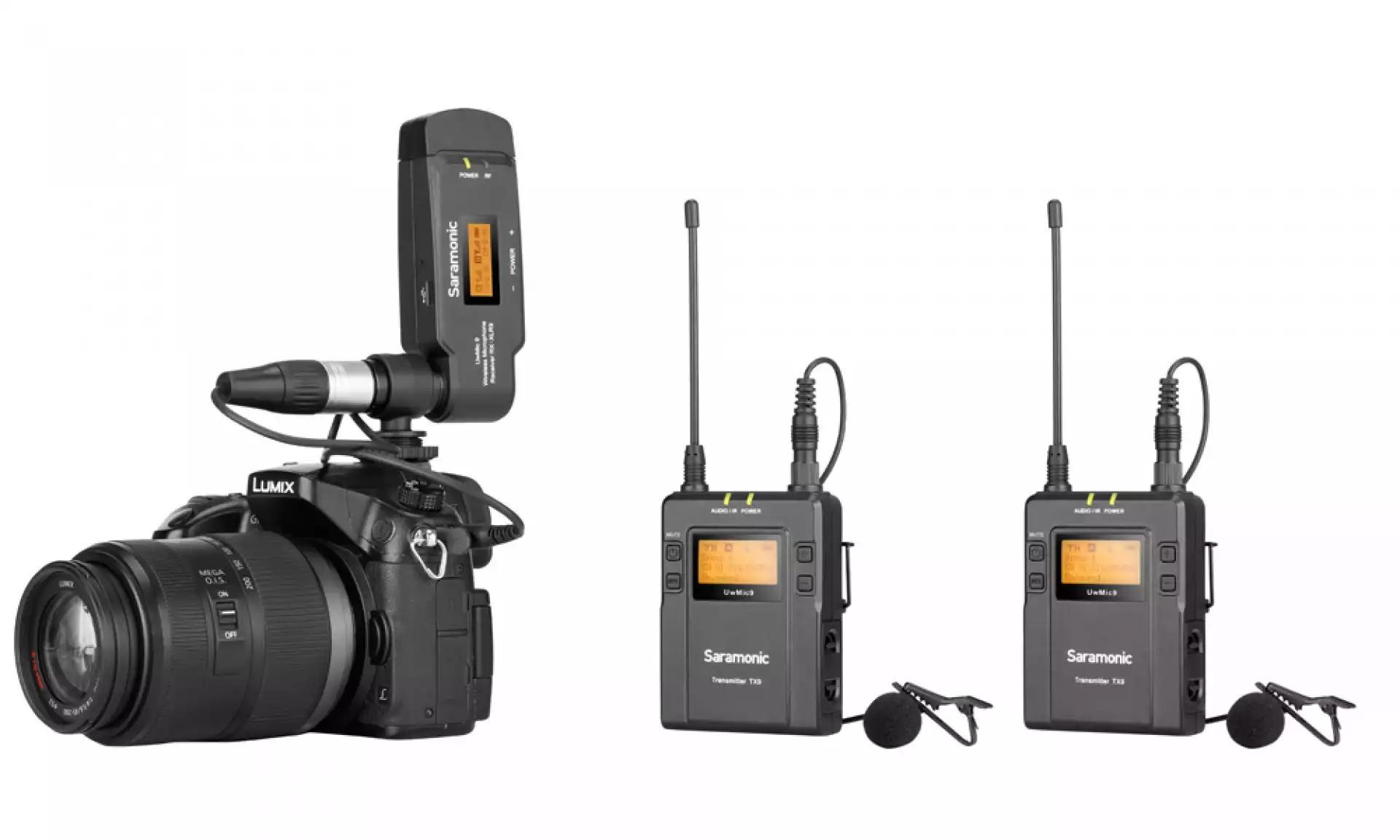

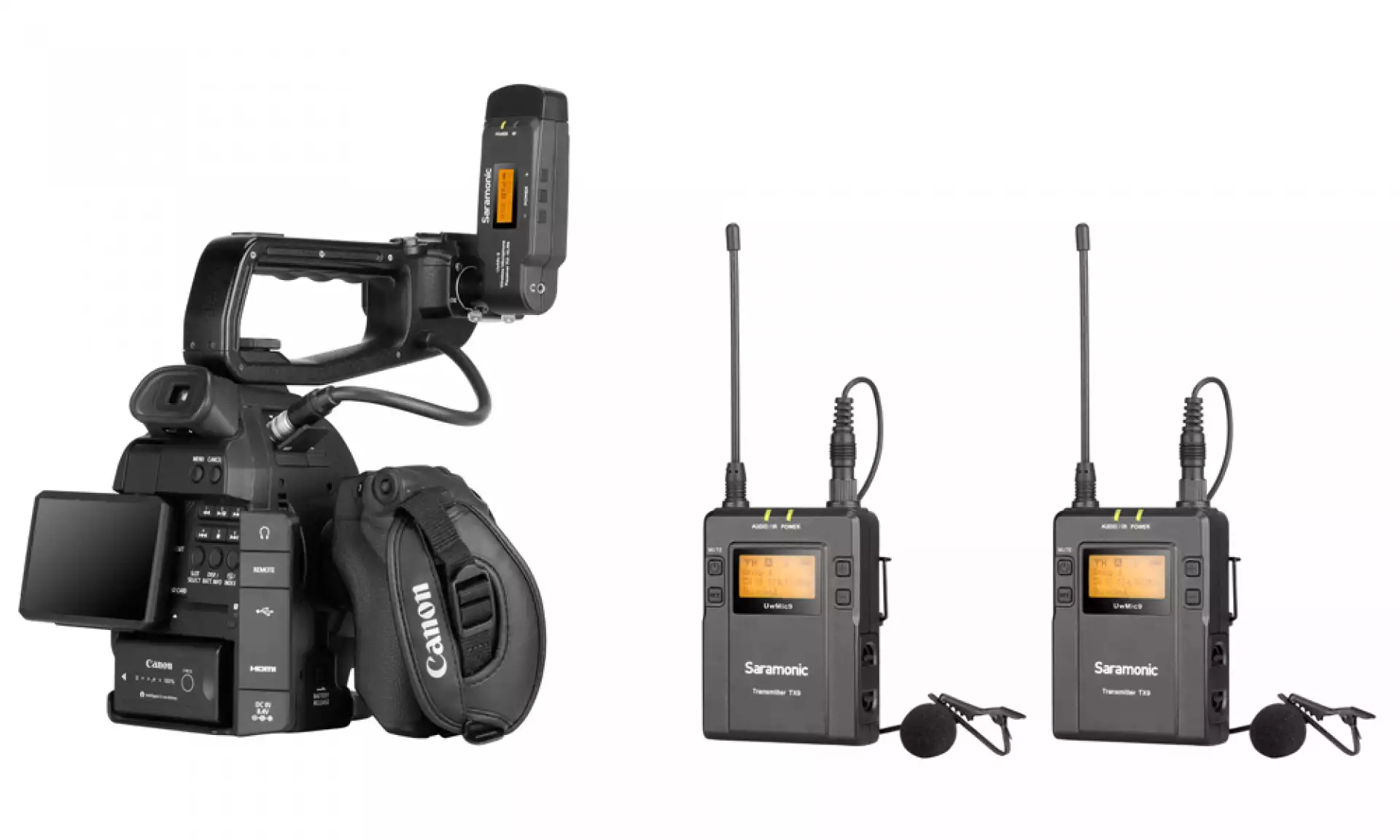

UwMic9 Kit8 TX9+TX9+RX-XLR9
UHF Wireless Lavalier Microphone System
The Saramonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more.
Body-pack Transmitter UwMic9-TX9
This transmitter is a compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a locking type microphone input connector. The RF power output can be switched among high, middle and low.
Plug-on Receiver UwMic9 RX-XLR9
The Saramonic UwMic9 RX-XLR9 is a compact XLR plug-on wireless receiver. It plugs directly into a video camera or recorder’s XLR microphone input without getting in the way of other accessories. The XLR connector rotates both clockwise and counter clockwise.
The receiver can be powered by two AA batteries or DC power via the USB Type-C jack. It features a wide switching RF bandwidth, an easy-to-read LCD screen, a 3.5mm headphone jack and infrared synchronization between transmitter and receiver.
• Reliable, broadcast-quality audio
• Compact XLR receiver
• 514 MHz – 596 MHz
• 96 selectable channels
• Easy-to-read LCD displays
• Infrared detector
• Power lock switch
Specifications：
Transmitter
| Channels: | 96 |
| Groups: | A or B |
| Oscillator Type: | PLL synthesizer |
| Frequency Range: | 514 MHz – 596 MHz |
| Reference Deviation: | +/- 5 kHz (-60dBV, 1kHz input) |
| Signal to Noise Ratio: | 70 dB or more |
| Spur Suppression: | -60 dB |
| Voice Delay: | 12 ms |
| Antenna: | 1/4λ wire antenna |
| Audio input connector: | TX9:3.5mm mini jack
HU9: none TX-XLR9: XLR-3-11C type (female) |
| Reference audio input level: | -60dBV (MIC input, 0dB attenuation) |
| Distortion: | 0.5% or less |
| Weight: | TX9: 170.9 x 63.5 x 30.0 mm
HU9: 254.0 x 52.0 x 52.0 mm TX-XLR9: 105.5 x 43 x 34.7 mm |
| Operating temperature: | 0℃ to 50℃ |
| Storage temperature: | -20℃ to +55℃ |
Receiver:
| Channels: | 96 |
| Groups: | A or B |
| Oscillator Type: | PLL synthesizer |
| Audio output connector: | XLR-3-11C type (male) |
| Antenna: | 1/4λ wire antenna |
| Audio output level: | –60 dBV |
| Spur Suppression: | -60 dB |
| Headphone output level: | 30mW (16 Ω) |
| Receive frequencies: | 514 MHz – 596 MHz |
| Receive sensitivity: | -95 dBm |
| Signal to noise ratio: | 70 dB or more |
| Voice delay: | 12 ms |
| Reference deviation | ±5 kHz (–60 dBV, 1 kHz input) |
| Frequency response: | 40 Hz to 18 kHz (+/-3dB) |
| Distortion: | 0.5% or less |
| Spur suppression: | -60 dB |
| Reference audio input level: | –60 dBV (MIC input, 0 dB attenuation) |
| Weight (excluding batteries): | Approx. 96g |
| Battery: | Two AA size batteries |
| DC input connector: | Type-C jack |
| Dimensions: | 112 × 63 × 26 mm |
| Operating temperature: | 0 °C to 50 °C |
| Storage temperature: | –20 °C to +55°C |
