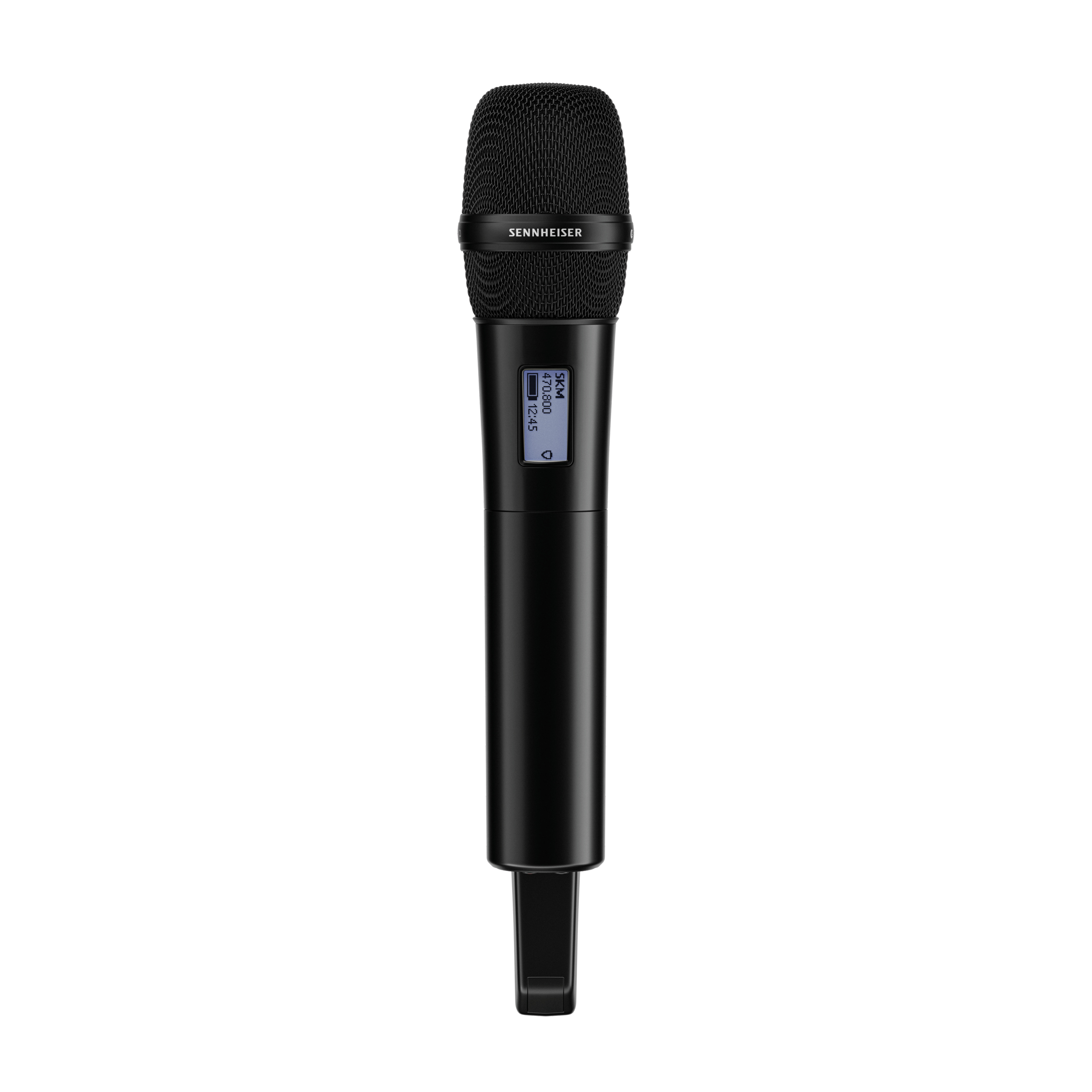

Sennheiser EW-DX SKM (Q1-9) - Bežični vokalni mikrofon
Digital wireless handheld transmitter without switch compatible with Evolution Wireless Digital systems. Rugged metal housing with standard capsule interface for a wide range of Sennheiser and Neumann microphone modules. Up to 12 hours of runtime, persistent E-Ink display and charging contacts for in-device charging.
Features
• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
• Function buttons - control all the transmitter settings directly from the handheld including button lock function
• Digital audio trim
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)
• Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
Tech Specs
Product
Total harmonic distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level
Frequency Specifications
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Acoustic Properties
Dynamic range (>): 134 dB
Ambient Conditions
Operating relative humidity (≤ %): 5 - 95 % (non-condensing)
Operating temperature (C): -10 °C - +55 °C (14 °F - 131 °F)
Electrical Properties
Input voltage: 2.0 - 4.35 V
Dimensions
Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
Height (mm): 73
Length (mm): 350
Master carton height (mm): 115
Master carton length (mm): 420
Master carton weight (g): 361.558
Master carton width (mm): 426
Weight (g): 450
Width (mm): 81
Package Depth (mm): 81
Package Height (mm): 73
Package Weight (g): 440
Package Width (mm): 350
