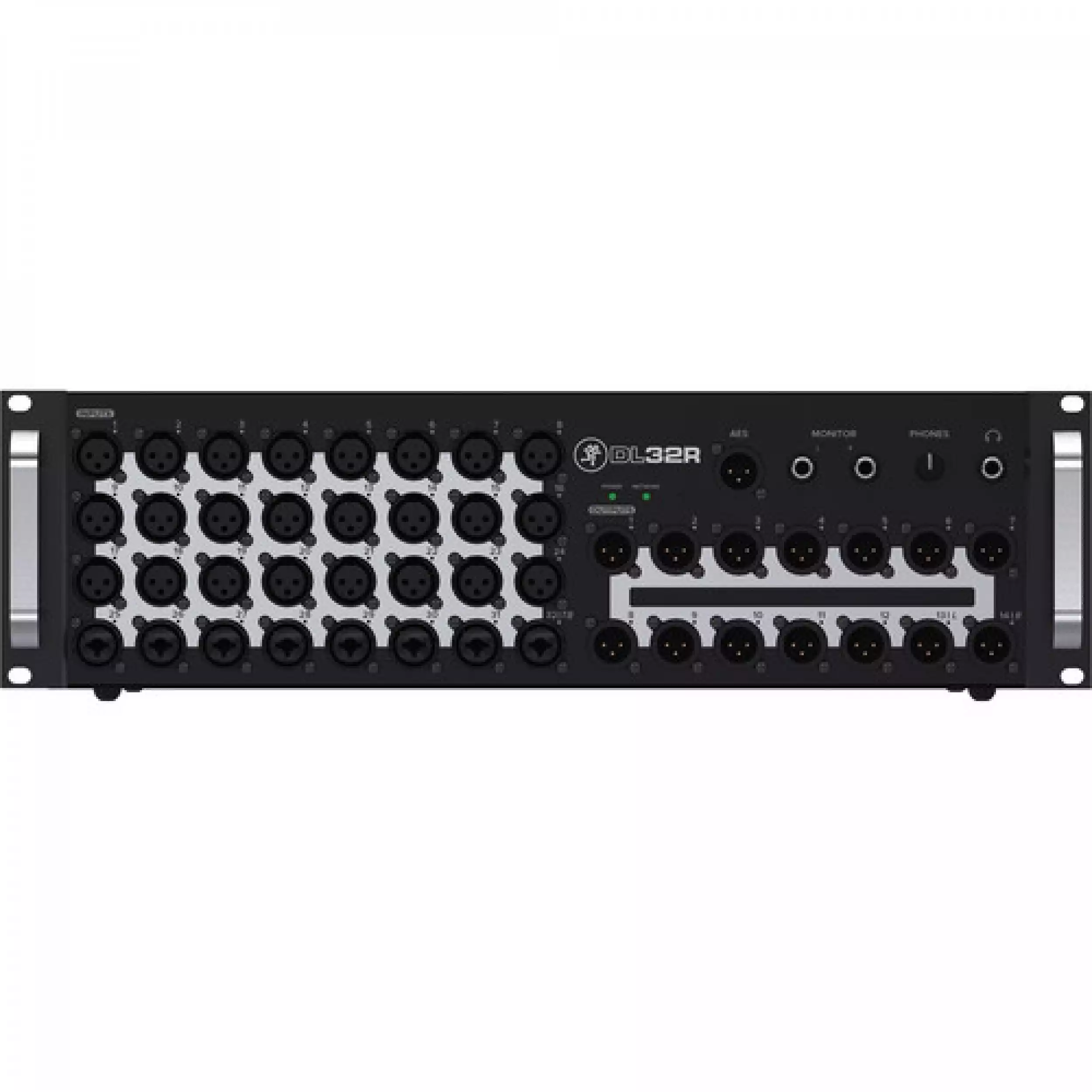

The DL32R features 32 microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps, capable of handling full bands that include guitars, full drum sets, vocals, and much more. It also has 14 fully assignable XLR outputs for connection to amplifiers, powered speakers, wireless transmitters for in-ear monitoring. The DL32R also allows up to 10 performing musicians to mix their own monitors using their iPhone, iPad or iPod touch.

In addition to sound reinforcement, the unit also provides 24-bit/48 kHz audio capture and playback for recording in live situations or in the studio. As an audio interface, the DL32R can be paired with your Mac or PC computer, or you can record directly to a USB 2.0 hard drive without a computer. Featuring three stereo FX processors with reverbs and delays, and dedicated sends & returns, the DL32R can function as a versatile, all-in-one mixing and recording solution.

The DL32R features a download for ProTools I First and Waveform software and The Musician's Collection plug-in package including 23 high-quality plugins with BBD Delay, Level Lite, 304E EQ, and 304C Compressor. To authorize the software, simply input the mixer's serial number on the website.

Features at a Glance:

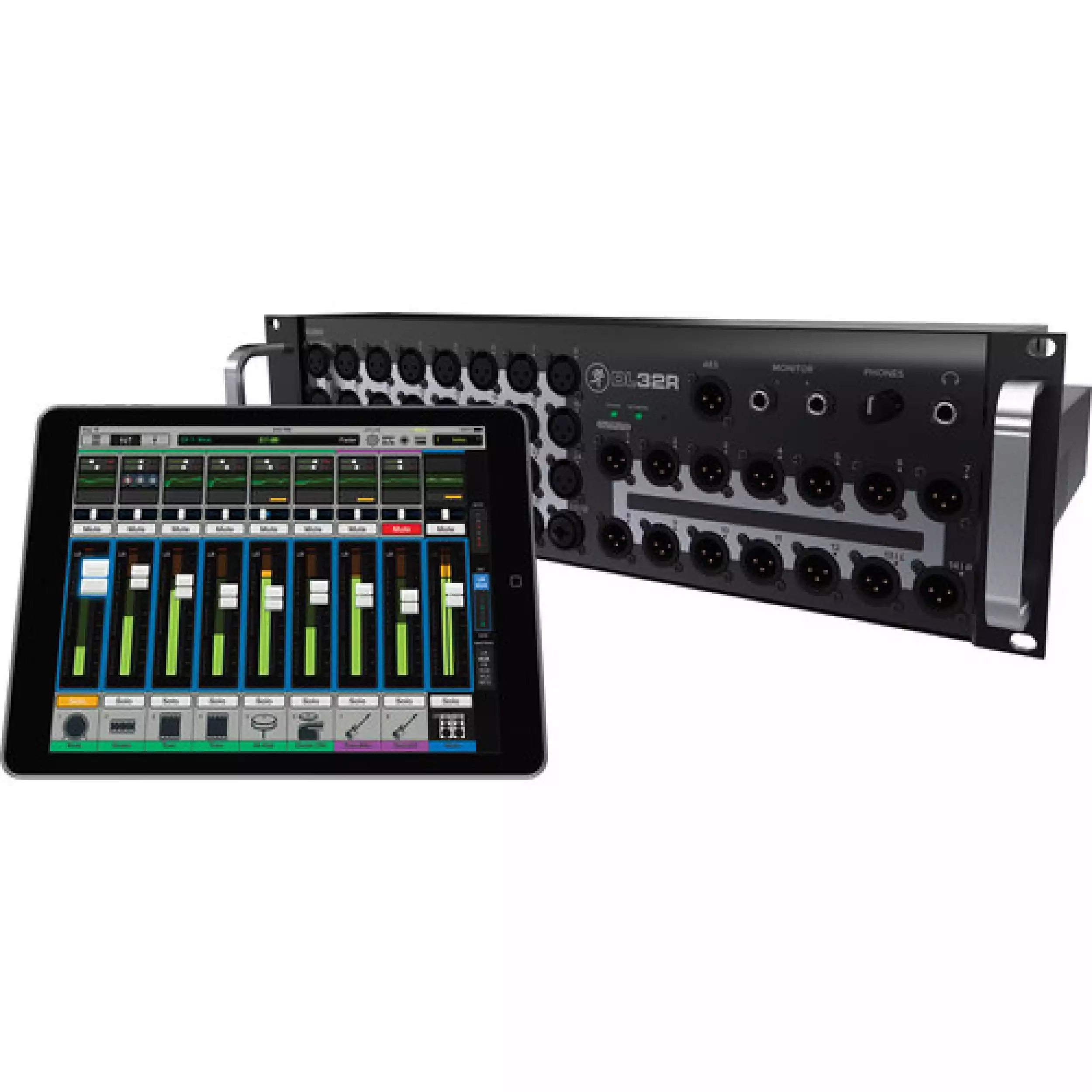

Master Fader iPad app for complete wireless control and frequent updates via App Store
Supports up to 10 separate iOS devices at once
32 Microphone inputs (24 XLR + 8 XLR/TRS combo) with high-quality Onyx+ recallable preamps
14 Fully assignable XLR outputs
36 Input channels with 4-band PEQ + HPF, gate and compression
28 Output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay
3 Stereo FX processors with tons of great-sounding reverbs and delays plus dedicated sends & returns
6 VCAs
6 Mute groups
Stereo AES digital output
Card slot for Dante expansion
Total recall for all settings
Professional Production Content
Content
Pro Tools | First and Waveform OEM professional software and plugin packages included
The DAW Essentials Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8, and Limiter
Included Software from Avid, including Pro Tools | First
An industry standard for decades, Pro Tools | First is easy enough for beginners yet sophisticated enough for experienced musicians. Get many of the same tools used by your favorite artists and recording studios. And now you can collaborate online with anyone, anywhere, and create at the speed of your imagination. Available for macOS and Windows operating systems.
In addition to the powerful plug-ins within Pro Tools | First, this mixer comes with the exclusive Mackie Musician Collection featuring 23 fantastic plug-ins, including:
Avid 304E EQ: Add musical warmth with a treble and bass equalizer with sweepable mid control
Avid 304C Compressor: Tweak the clarity, balance, and rhythmic feel of music with this optical-modeled compressor
BBD Delay: Create delay, chorus, and vibrato effects based on a classic guitar pedal
Black Op Distortion: Add rich distortion based on a classic distortion pedal
Black Shiny Wah: Achieve the famous classic tones of a respected wah wah pedal
Black Spring Reverb: Get the twang and space of a vintage amplifier
C1 Chorus: Emulates a classic chorus pedal
DC Distortion: Dial up a range of overdriven tones with this Avid custom distortion effect
Eleven Lite: Get the sound of popular guitar amps and speaker cabinets
Flanger: Create esoteric sounds with this homage to vintage and modern flangers
Graphic EQ: Sculpt frequencies with ease
Gray Compressor: Add warmth to tracks based on a vintage Ross compressor
Green JRC Overdrive: Get the coveted sounds of a classic IC overdrive pedal
In-Tune: Keep your instruments in tune with this digital tuner
Orange Phaser: Create interesting effects with this phase shifter based on a classic design
Roto Speaker: Recreate the sounds of a Leslie rotary speaker cabinet
Sci-Fi: Add analog synth-type ring and frequency modulation
Studio Reverb: Create natural-sounding reverb and ambient effects
Tape Echo: Add vintage analog delay and chorus effects
Tri Knob Fuzz: Get the Hendrix tone with this fuzz box based on one of the first fuzz pedals
Vari-Fi: Create the effect of audio changing tape speed
Vibe Phaser: Add phase-shift and rotary speaker effects
White Boost: Boost gain without coloring tone

Mackie DL32R Specs
Mixer
Number of Analog Input Channels 36
Number of Mic Preamps 32
Number of Analog Output Channels 12
Max I/O Capacity 32 x Input / 12 x Output
Mix Routing 14 x Aux Send
6 x Matrix
6 x Subgroup
Groups 6 x VCA Group
6 x Mute Group
Faders None
Signal Processing
Gain/Trim Range Mic:
0 dB to 60 dB (in 3 dB Steps)
Line:
-20 dB to 40 dB (in 3 dB Steps)
Dynamic Processing Input Channels:
Compressor, Gate
Buses, Master:
Compressor, Limiter
EQ FX Returns:
4-Band Parametric
Input Channels:
4-Band Parametric
Output Buses:
4-Band Parametric
31-Band Graphic
Graphic EQ 31-Band
Filters High-Pass
Outputs:
High-Pass
Low-Pass
Built-In Effects 2 x Reverb
1 x Delay
Audio Delay Yes
Digital Audio
Sample Rates 48 kHz
AES3 Output:
48 kHz
Multitrack Record:
48 kHz
Audio Streaming:
48 kHz
Bit Depth AD/DA Conversion:
24-Bit
AES3 Output:
24-Bit
Record:
16 / 24-Bit
Audio Streaming:
16 / 24-Bit
Latency 1.5 ms (Analog Input to Analog Output)
Performance
dBFS Reference Level +22 dBu = 0 dBFS
Frequency Response 20 Hz to 20 kHz -1 dB
Max Input Level XLR Input:
+21 dBu
1/4" Input:
+30 dBu
Output Level Headphone Output:
+18 dBu (2901653168)
Output:
+21 dBu (2901653168)
Analog Dynamic Range Input to Output:
109 dBA at Unity Gain
Output:
111 dBA
I/O Impedance AES3 Output:
110 Ohms
XLR Mic Input:
3 Kilohms
1/4" Input:
30 Kilohms
XLR Output:
600 Ohms
Monitor Output:
240 Ohms (Balanced)
120 Ohms (Unbalanced)
Crosstalk Adjacent Inputs:
< -105 dB at 1 kHz (Min Gain)
< -80 dB at 1 kHz (Max Gain)
Adjacent Outputs:
< -100 dB at 1 kHz
EIN -128 dBu (2901653041)
Noise Floor -90 dBu A-Weighted
SNR 92 dBA at Unity Gain (+4 dBu Reference)
THD Mic Input to Main Output:
< 0.005% (-1 dBFS)

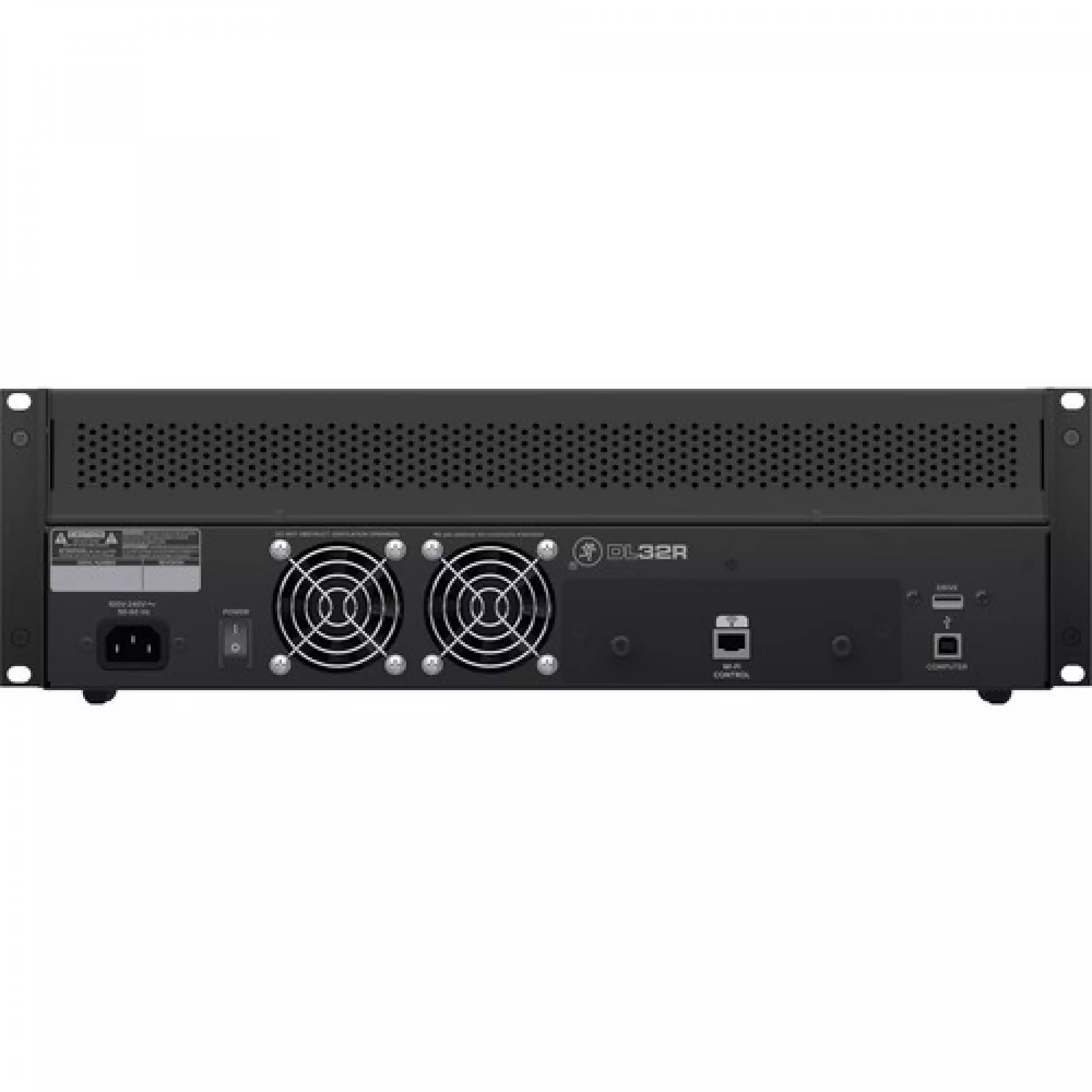

Connectivity
Analog Inputs 24 x XLR Balanced Input
8 x Combo XLR-1/4" TRS Balanced Input
Analog Outputs 14 x XLR Balanced Output
2 x 1/4" TRS Balanced Output (1 Stereo Pair)
1 x 1/4" TRS Headphone Output
Phantom Power +48 V
Digital I/O 1 x RJ45 (Wi-Fi Router, 100 Mb/s)
1 x XLR AES3 Output
MIDI I/O None
USB 1 x USB Type-A (USB 2.0, External Memory)
1 x USB Type-B (USB 2.0, Host Connection)
Wireless Connectivity None
External Display Connection None
Recording
Max Multitrack Recording 24 Tracks
Media Support HDD
File Format Support WAV
File System Support Hard Disk Drive: FAT32
Compatibility
OS Compatibility Windows 7
Windows 8
macOS 10.8.4
macOS 10.9
iOS 7.1 or Later
*As of July, 2019: check with manufacturer for the most up-to-date compatibility
Mobile Device Compatibility iPad 3rd Gen., 4th Gen., 2
iPad Mini with Retina
iPad Air
iPhone
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector IEC
Power Consumption 100 W (Maximum)
Physical
Rackmount Size 3 RU
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 5.4 x 19 x 17.5" / 138 x 483 x 443 mm
Weight 18 lb / 8.2 kg
Packaging Info
Package Weight 23.5 lb
Box Dimensions (LxWxH) 21.6 x 21.5 x 9.3"
