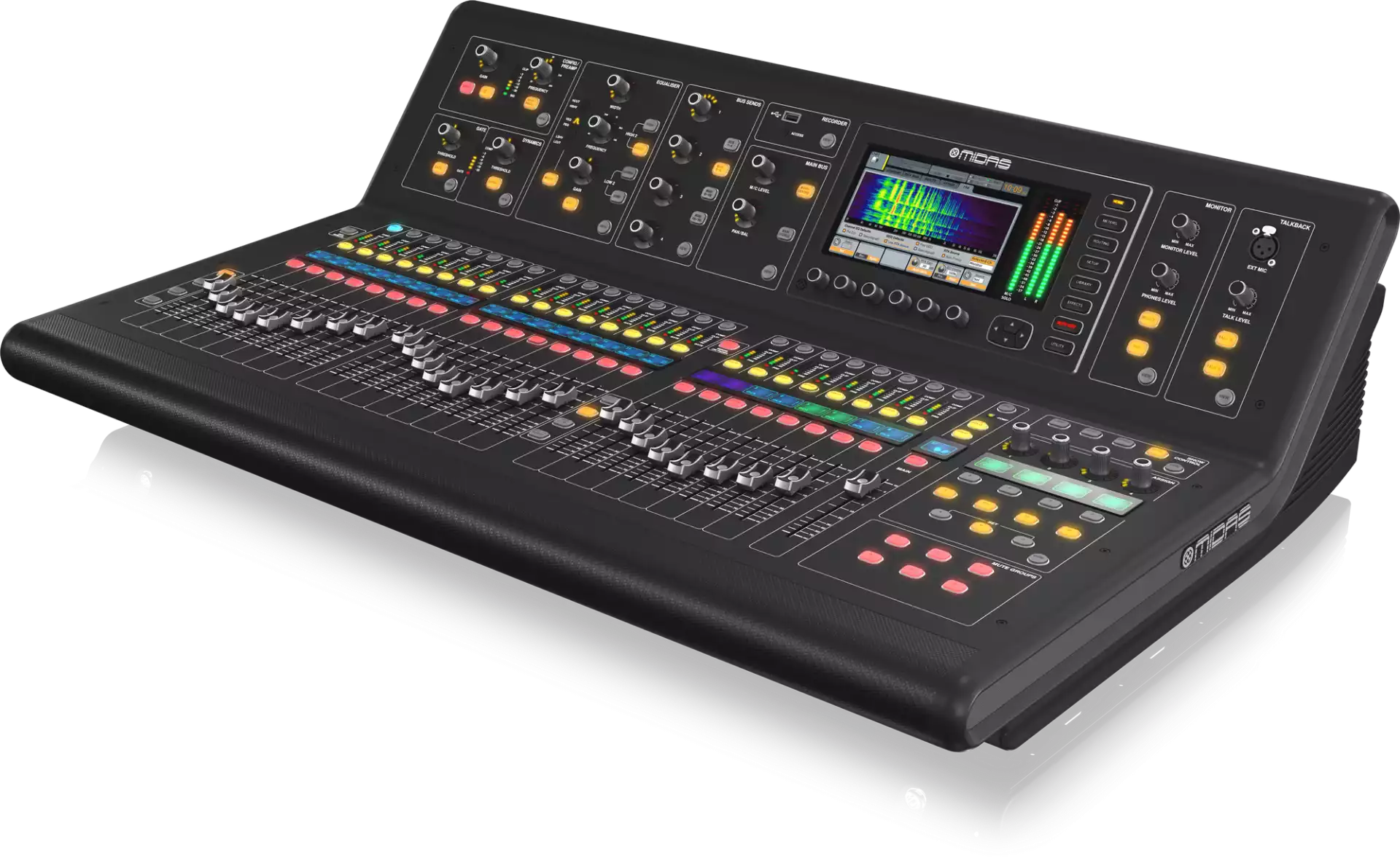

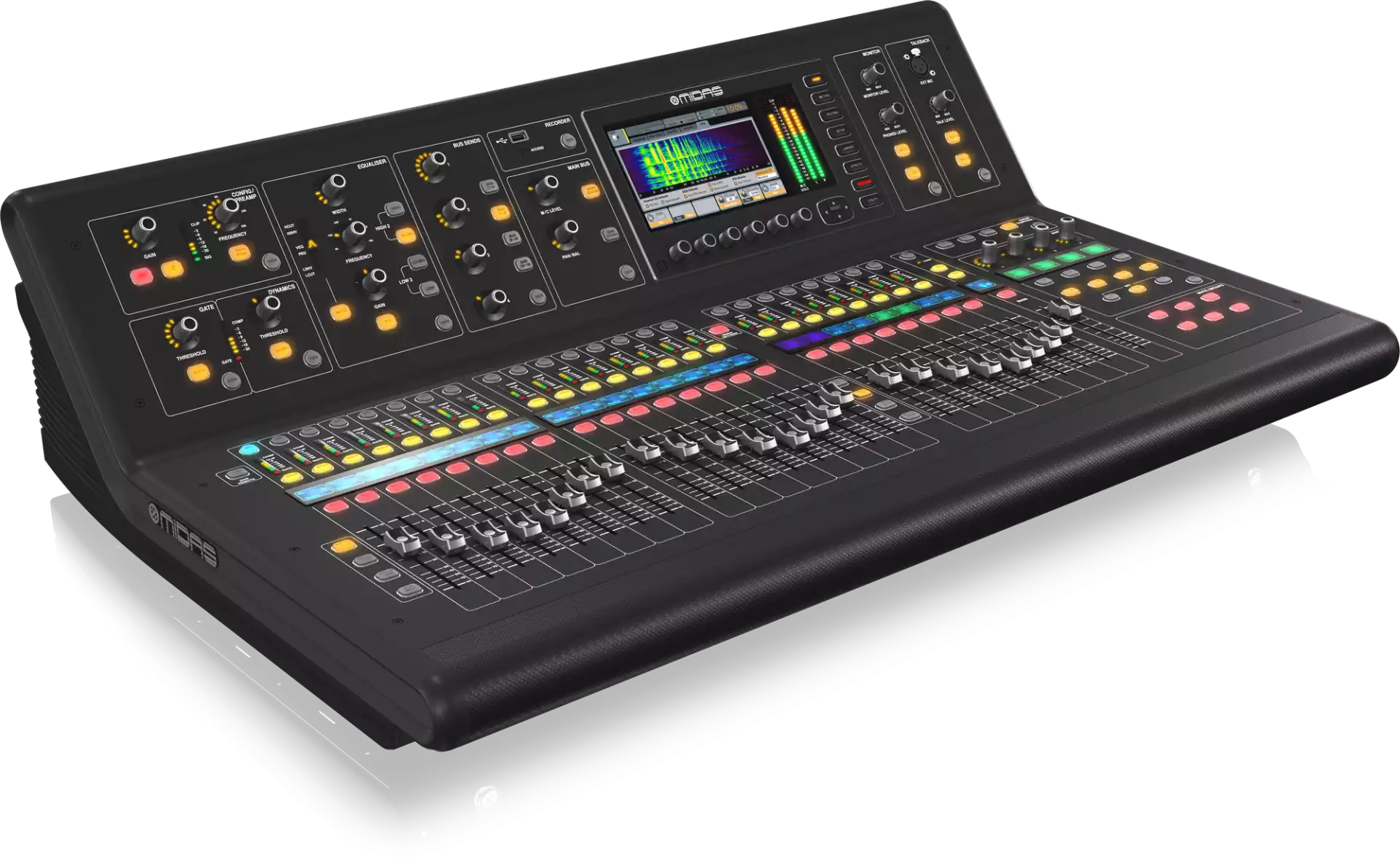

MIDAS M32 - Digitalna mikseta
Digital Console for Live and Studio with 40 Input Channels, 32 Midas Microphone Preamplifiers and 25 Mix Buses
Processing
| Input Processing Channels |
32 Input Channels, 8 Aux Channels, 8 FX Return Channels |
| Output Processing Channels |
16 |
| 16 aux buses, 6 matrices, main LRC |
100 |
| Internal Effects Engines (True Stereo / Mono) |
16 |
| Internal Show Automation (structured Cues / Snippets) |
500 / 100 |
| Internal Total Recall Scenes (incl. Preamplifiers and Faders) |
100 |
| Signal Processing |
40-Bit Floating Point |
| A/D Conversion (8-channel, 96 kHz ready) |
114 dB Dynamic Range (A-weighted*) |
| D/A Conversion (stereo, 96 kHz ready) |
120 dB Dynamic Range (A-weighted*) |
| I/O Latency (Console Input to Output) |
0.8 ms |
| Network Latency (Stage Box In > Console > Stage Box Out) |
1.1 ms |

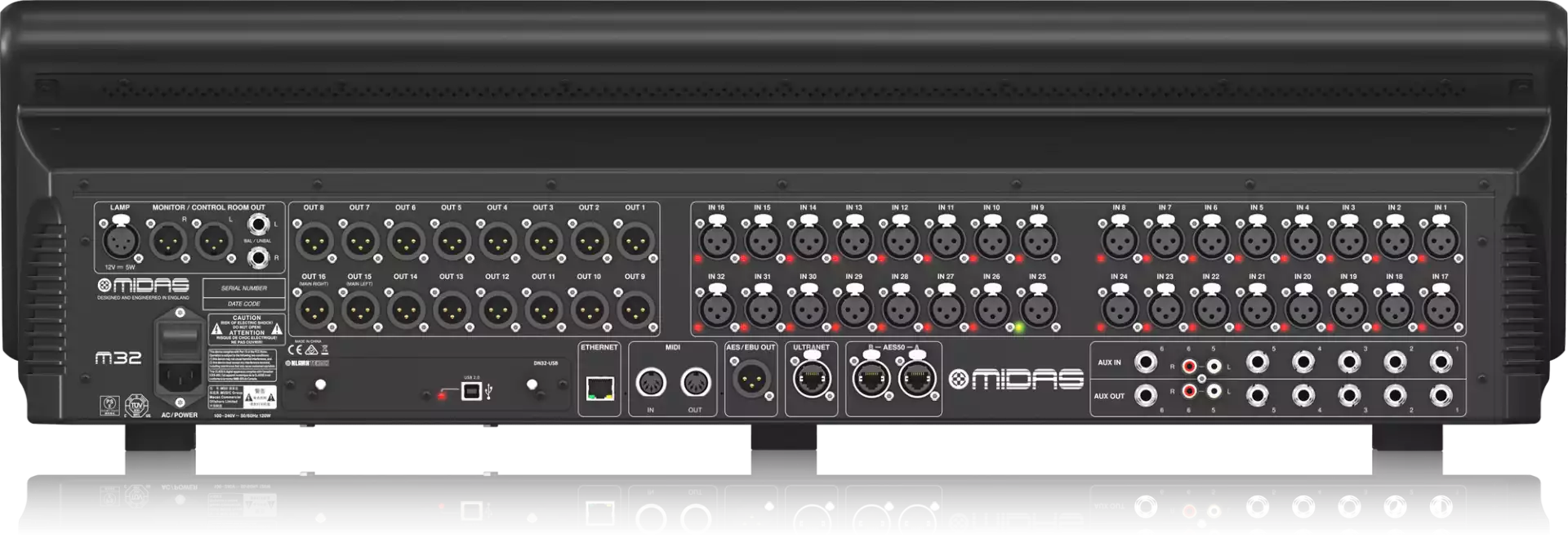

Connectors
| MIDAS PRO Series Microphone Preamplifier (XLR) |
32 |
| Talkback Microphone Input (XLR) |
1 |
| RCA Inputs / Outputs |
2 |
| XLR Outputs |
16 |
| Monitoring Outputs (XLR / ¼" TRS Balanced) |
2 |
| Aux Inputs/Outputs (¼" TRS Balanced) |
6 |
| Phones Output (¼" TRS) |
2 (Stereo) |
| Digital AES/EBU Output (XLR) |
1 |
| AES50 Ports (KLARK TEKNIK SuperMAC) |
2 |
| Expansion Card Interface |
32 Channel Audio Input / Output |
| ULTRANET P-16 Connector (No Power Supplied) |
1 |
| MIDI Inputs / Outputs |
1 |
| USB Type A (Audio and Data Import / Export) |
1 |
| USB Type B, rear panel, for remote control |
1 |
| Ethernet, RJ45, rear panel, for remote control |
1 |
Mic Input Characteristics
| Design |
MIDAS PRO Series |
| THD+N (0 dB gain, 0 dBu output) |
<0.01% (unweighted) |
| THD+N (+40 dB gain, 0 dBu to +20 dBu output) |
<0.03% (unweighted) |
| Input Impedance (Unbalanced / Balanced) |
10 kO / 10 kO |
| Non-Clip Maximum Input Level |
+23 dBu |
| Phantom Power (Switchable per Input) |
+48 V |
| Equivalent Input Noise @ +45 dB gain (150 ? source) |
-125 dB (22 Hz-22 kHz, unweighted) |
| CMRR @ Unity Gain (Typical) |
>70 dB |
| CMRR @ 40 dB Gain (Typical) |
>90 dB |
Input/Output Characteristics
| Frequency Response @ 48 kHz Sample Rate |
0 dB to -1 dB (20 Hz-20 kHz) |
| Dynamic Range, Analogue In to Analogue Out |
106 dB (22 Hz-22 kHz, unweighted) |
| A/D Dynamic Range, Preamplifier and Converter (Typical) |
109 dB (22 Hz-22 kHz, unweighted) |
| D/A Dynamic Range, Converter and Output (Typical) |
109 dB (22 Hz-22 kHz, unweighted) |
| Crosstalk Rejection @ 1 kHz, Adjacent Channels |
100 dB |
| Output level, XLR Connectors (Nominal / Maximum) |
+4 dBu / +21 dBu |
| Output Impedance, XLR Connectors (Unbalanced / Balanced) |
50 O / 50 O |
| Input impedance, TRS Connectors (Unbalanced / Balanced) |
20 kO / 40 kO |
| Non-Clip Maximum Input Level, TRS Connectors |
+21 dBu |
| Output Level, TRS (Nominal / Maximum) |
+4 dBu / +21 dBu |
| Output Impedance, TRS (Unbalanced / Balanced) |
50 O / 50 O |
| Phones Output Impedance / Maximum output Level |
40 O / +21 dBu (Stereo) |
| Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain |
-85 dBu 22 Hz-22 kHz unweighted |
| Residual Noise Level, Out 1-16 XLR Connectors, Muted |
-88 dBu 22 Hz-22 kHz unweighted |
| Residual Noise Level, TRS and Monitor out XLR Connector |
-83 dBu 22 Hz-22 kHz unweighted |
Display
| Main Screen |
7" TFT LCD, 800 x 480 Resolution, 262k Colours |
| Channel LCD Screen |
128 x 64 LCD with RGB Colour Backlight |
| Main Meter |
24 Segment (-57 dB to Clip) |
Power
| Switch-Mode Power Supply |
Auto-Ranging 100-240 VAC (50/60 Hz) ± 10% |
| Power Consumption |
120 W |
Physical
| Standard Operating Temperature Range |
5°C – 40°C (41°F – 104°F) |
| Dimensions |
891 x 612 x 256 mm (35.1 x 24.1 x 10.1") |
| Weight |
25 kg (55 lbs) |
