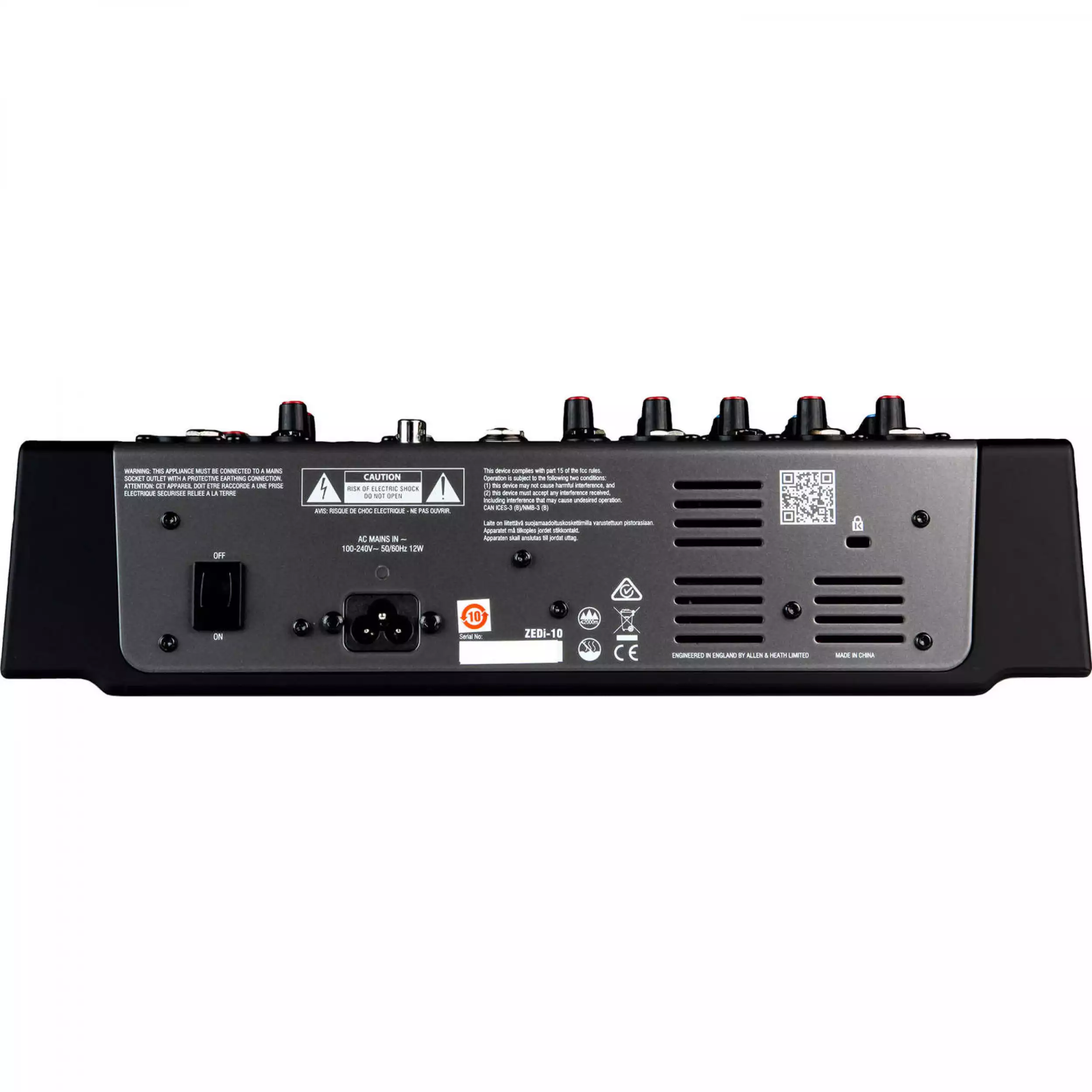

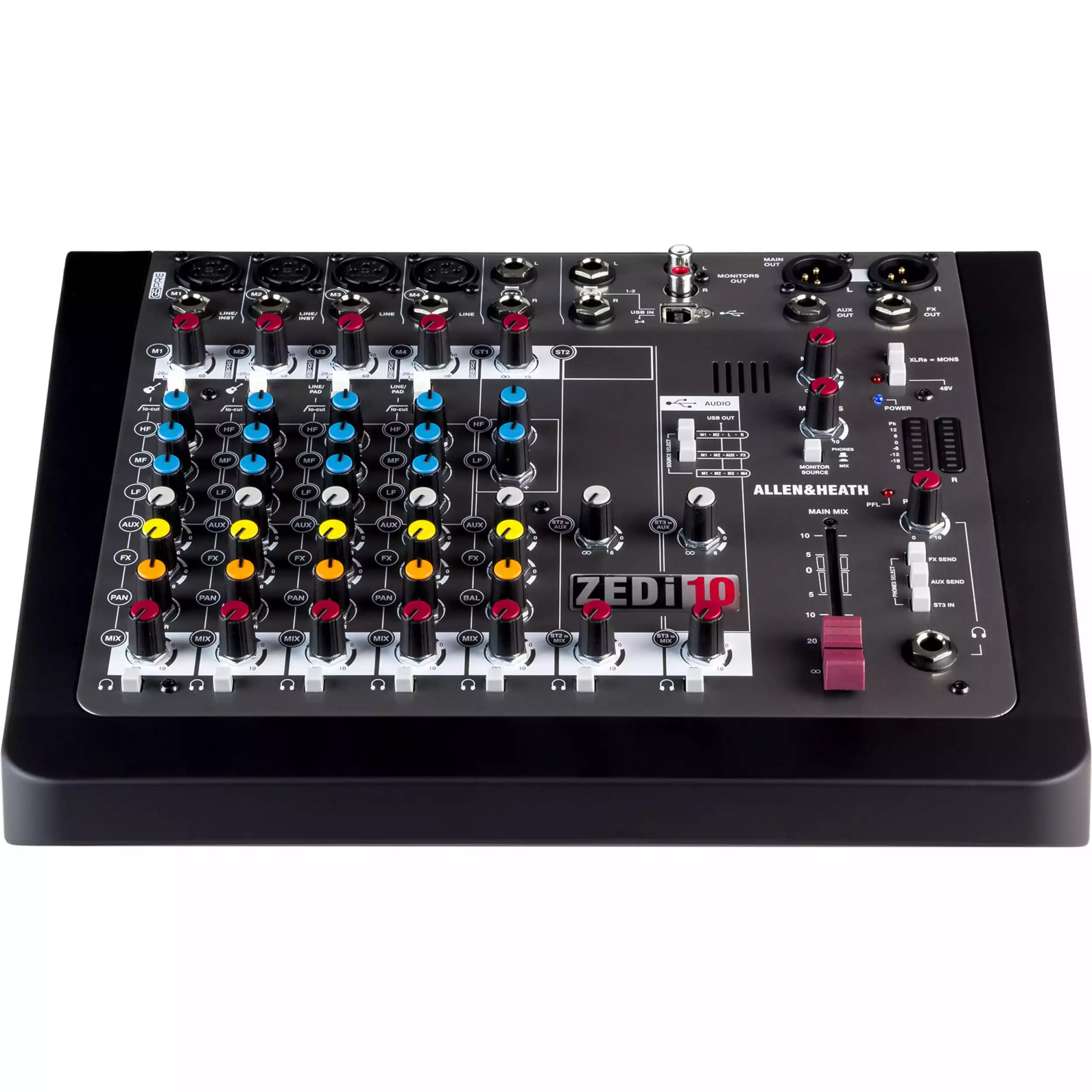

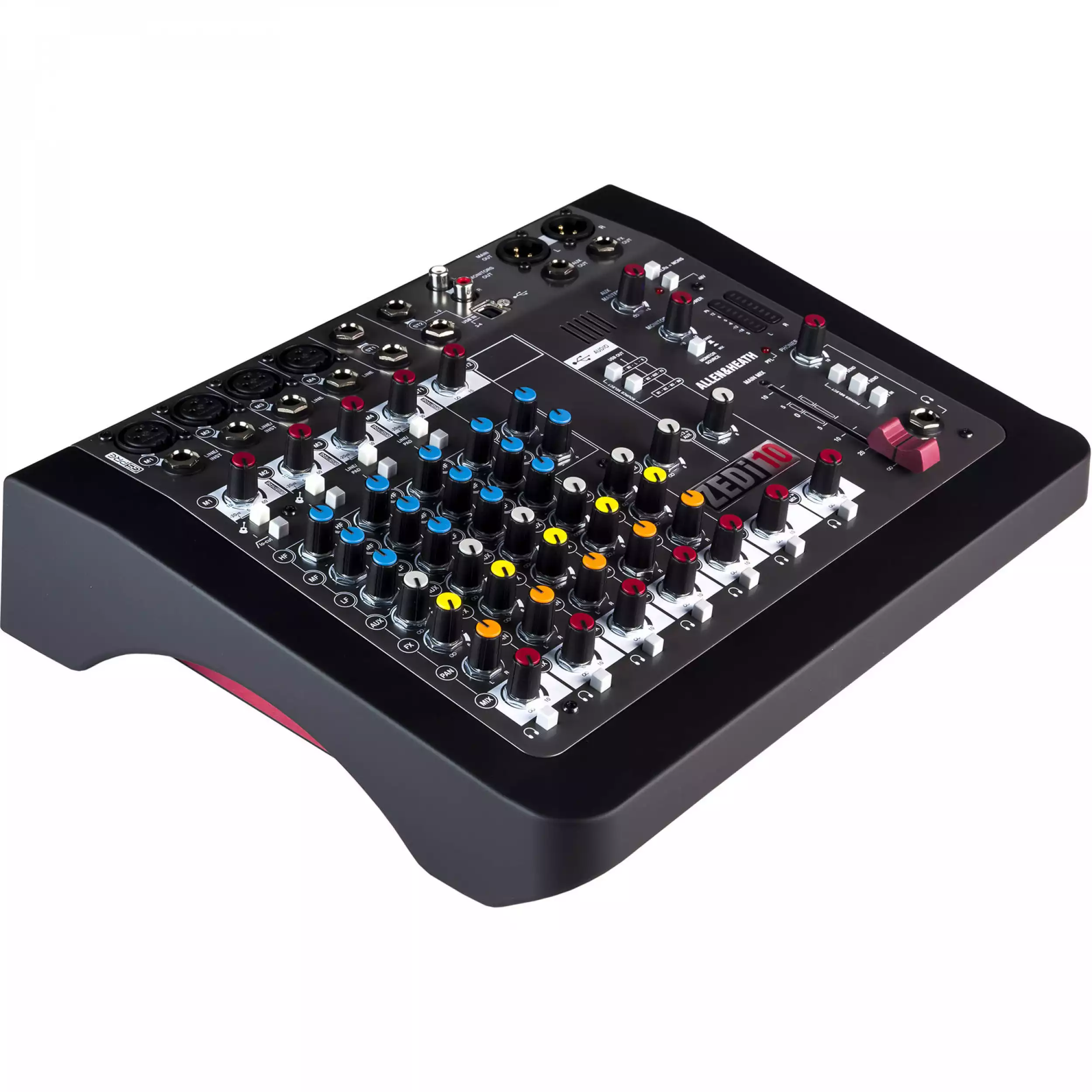

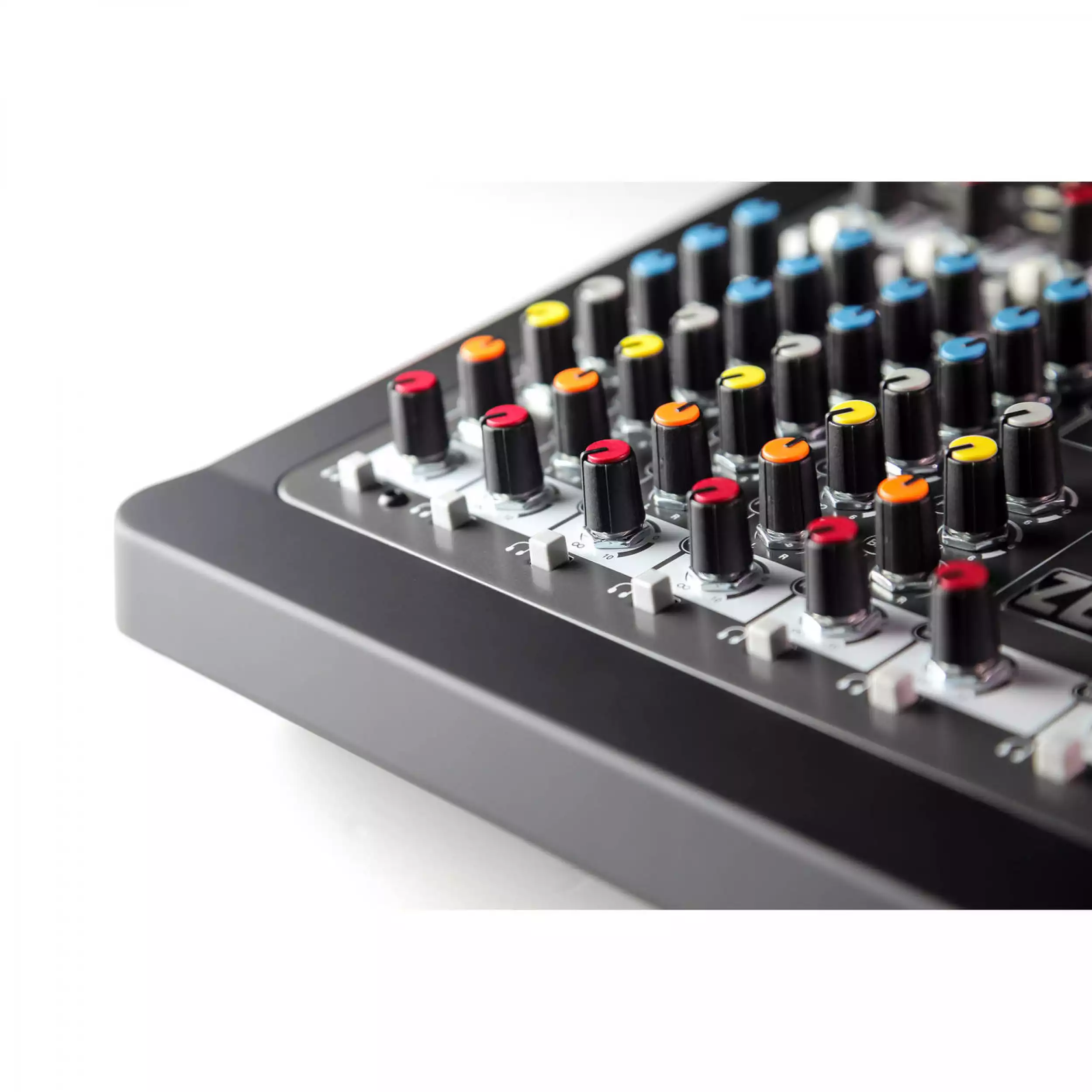

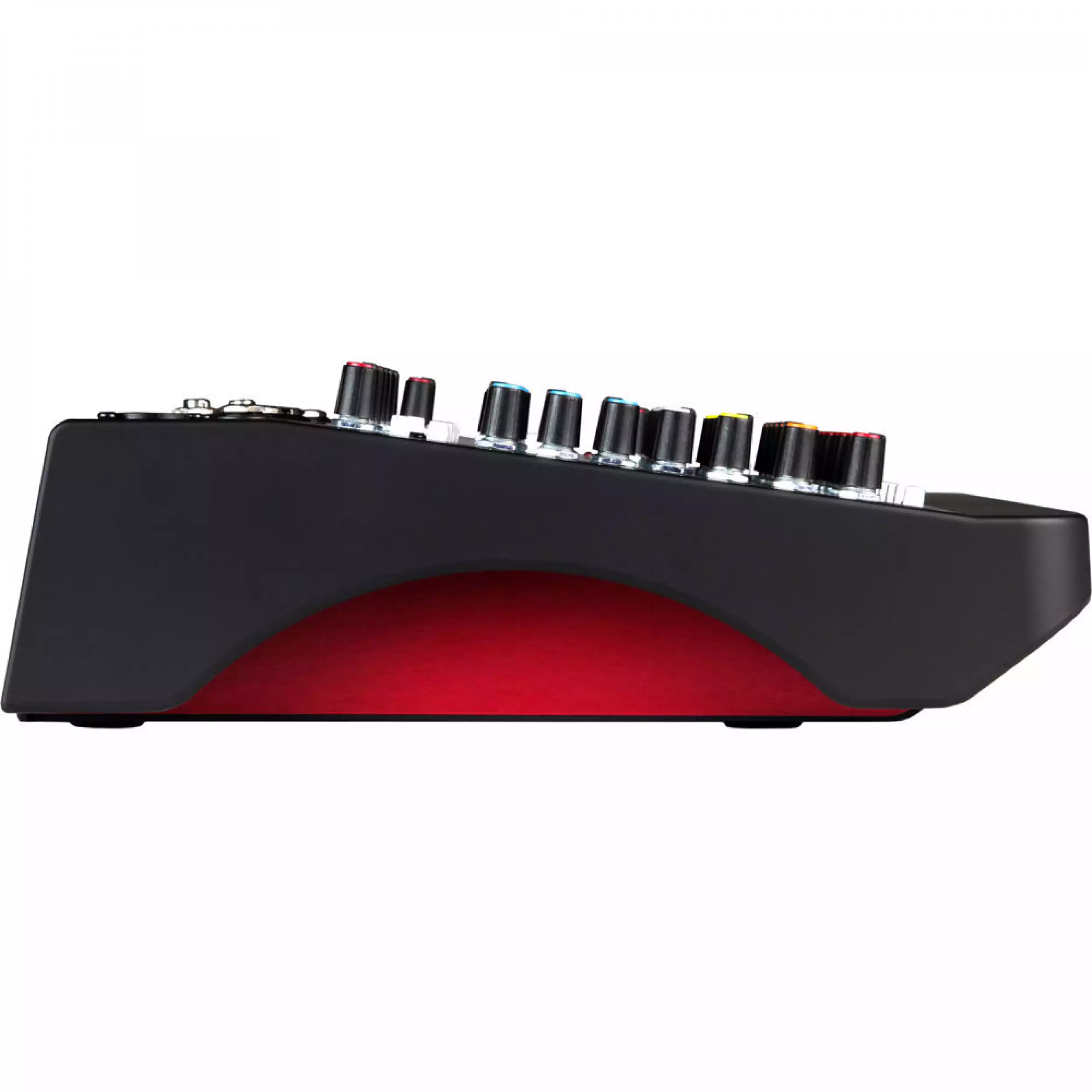

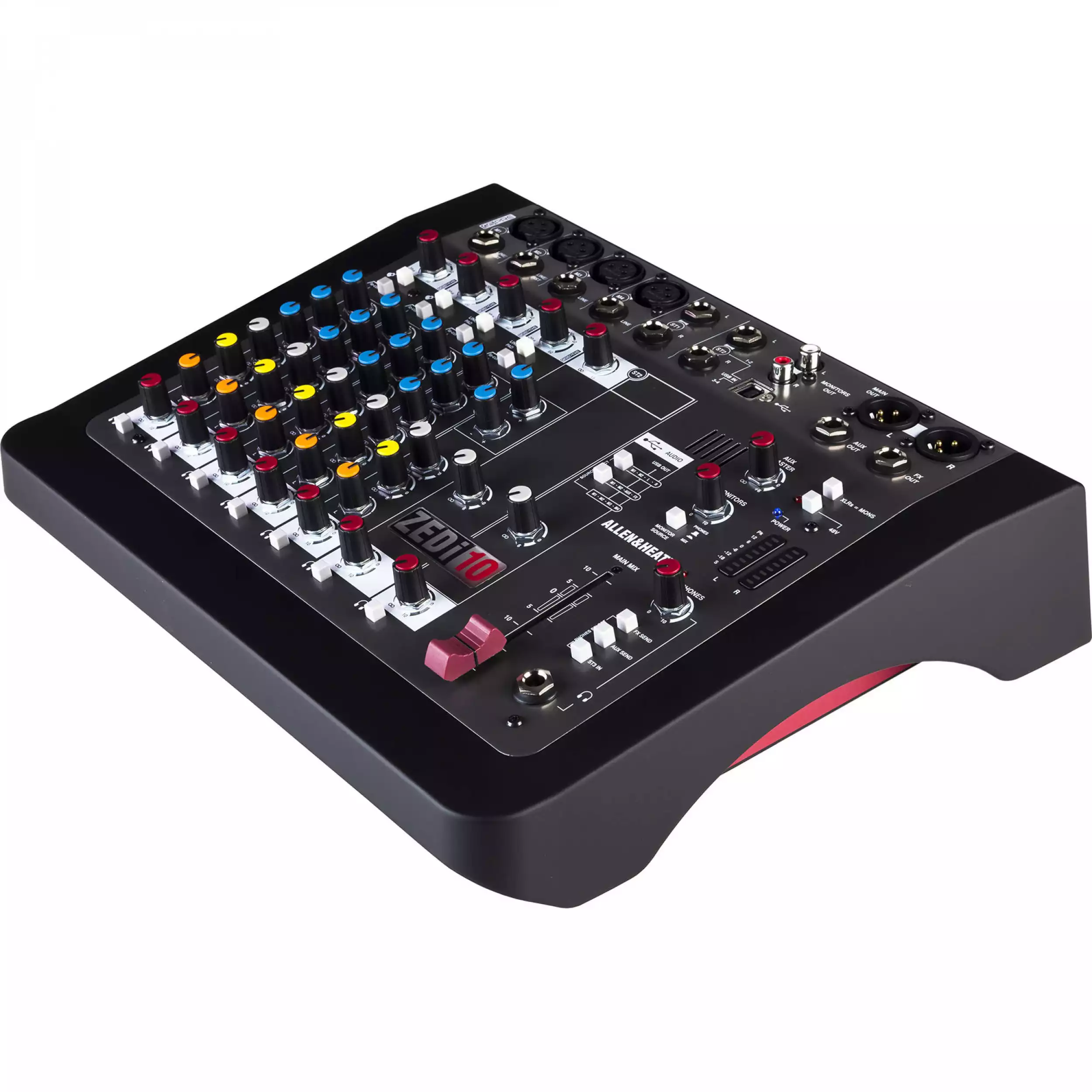

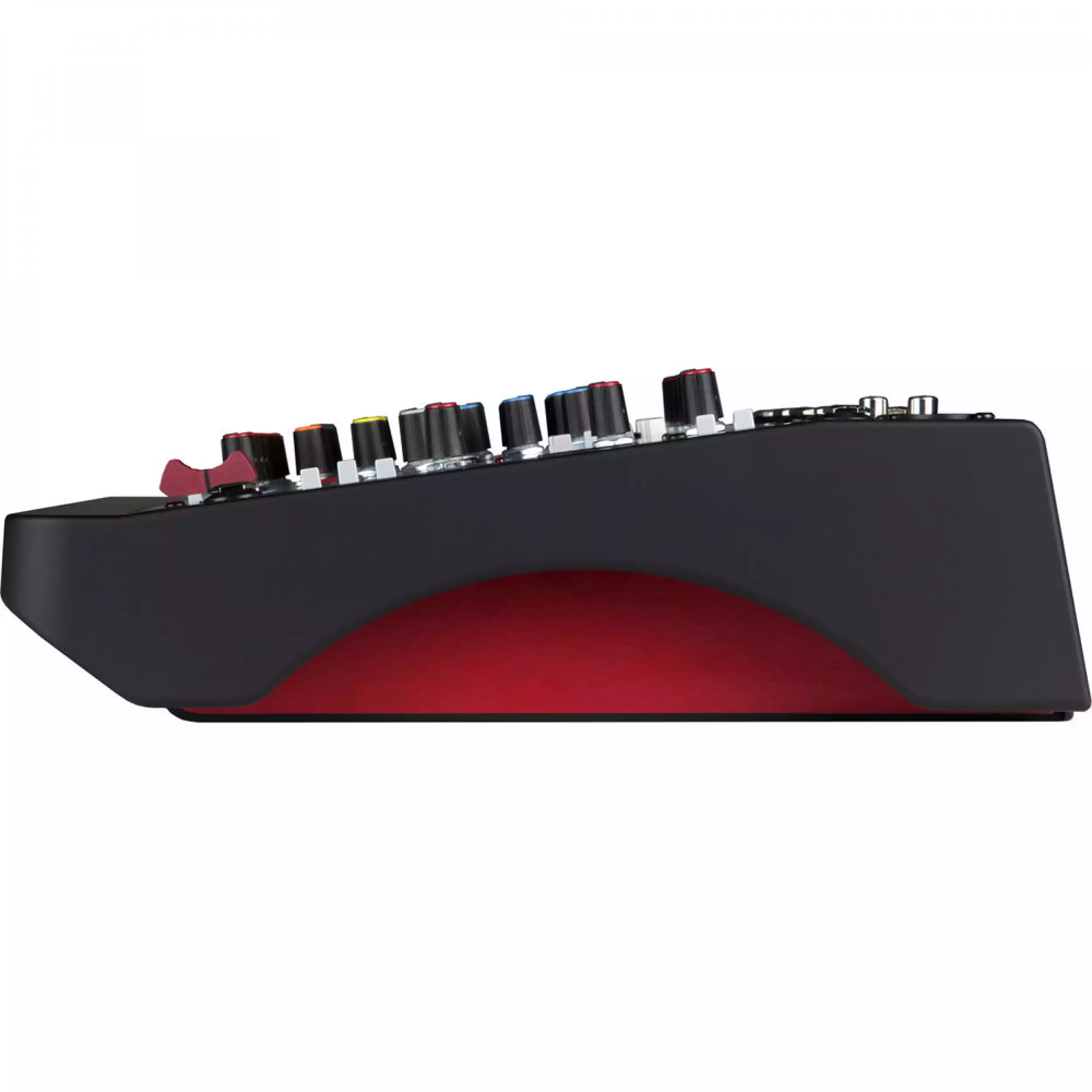

ALLEN & HEATH Zed i10
Garantujemo najnižu cenu!
Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZEDi-10 is a ten-channel compact mixer that doubles as a USB interface. On the mixer side, you get four XLR inputs, four line inputs, two instrument ports, and two pairs of stereo line inputs. Utilize this unit's digital capabilities and you'll find yourself with four channels of conversion—analog-to-digital or vice-versa. Thus, you'll find the ZEDi-10 equally suited for live-mixing in small venues and for tracking instruments on the fly.
Should you choose use the unit as an interface, you'll find that it comes with Cubase LE, a digital audio workstation which enables you to record, sequence, and edit music, be it audio or MIDI.
In the analog realm, the ZEDi-10 is crafted with preamps modeled on the Allen & Heath GS2-R24. These channel strips aim to provide warmth, low noise, and a vast expanse of headroom. On-board EQs also come standard with the unit. Two channels feature a button that converts line-level signal into high-impedance jacks, meaning guitar players need not lug an extra DI box around should they wish to go direct into the board.
Turning your attention back to the digital side of things, you'll notice that a USB switch controls the routing of your USB output, enabling you to select how you route and separate the incoming analog signals into your DAW.
Key Features
USB audio interface (24-bit/96 kHz)
Cubase LE software included
Cubasis LE App included
4 x mic/line Inputs with separate XLR and TRS jack sockets
2x stereo inputs with TRS jack sockets
2x guitar DI high-impedance inputs, eliminating the need for DI boxes
4 x high-pass filters (channels 1 through 4) for cleaning up unwanted low-frequency noise
3-band EQ on channels 1 through 4 enable tonal shaping
60mm smooth-travel fader on main mix
2 x XLR main outputs
2 x RCA monitor outputs
8x LED signal metering
48V Phantom Power for condenser mics
Internal power supply
Mixer
Number of Analog Input Channels 8 (4 Mono / 2 Stereo)
Number of Mic Preamps 4
Analog Output Channels 1 x Stereo Master Output
1 x Stereo Control Room/Monitor Output
1 x Mono Aux Send Output
1 x Mono FX Send Output
1 x Stereo Headphone Output
Faders 7 x Channel Fader
Signal Processing
EQ Input Channels:
3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
Filters 4 x High-Pass
Built-In Effects None
Digital Audio
Sample Rates Up to 96 kHz
Bit Depth Up to 24-Bit
Connectivity
Analog Inputs 4 x XLR 3-Pin Mic Input
2 x 1/4" Line/Hi-Z Input
2 x 1/4" Line Input
4 x 1/4" Line Input (2 Stereo Pairs)
Analog Outputs 1 x 1/4" TRS Headphone Output
1 x 1/4" Aux Output
1 x 1/4" FX Output
1 x Stereo RCA Monitor Output
2 x XLR 3-Pin Main Output
Phantom Power Yes
USB 1 x USB Type-B
USB I/O Capacity 4 x Input / 4 x Output
Physical
Rack Mountable No
Dimensions 3.8 x 13.1 x 10.8" / 96.5 x 332.7 x 274.3 mm
Weight 4.8 lb / 2.2 kg
Packaging Info
Package Weight 7.7 lb
Box Dimensions (LxWxH) 18 x 13 x 5.5"
