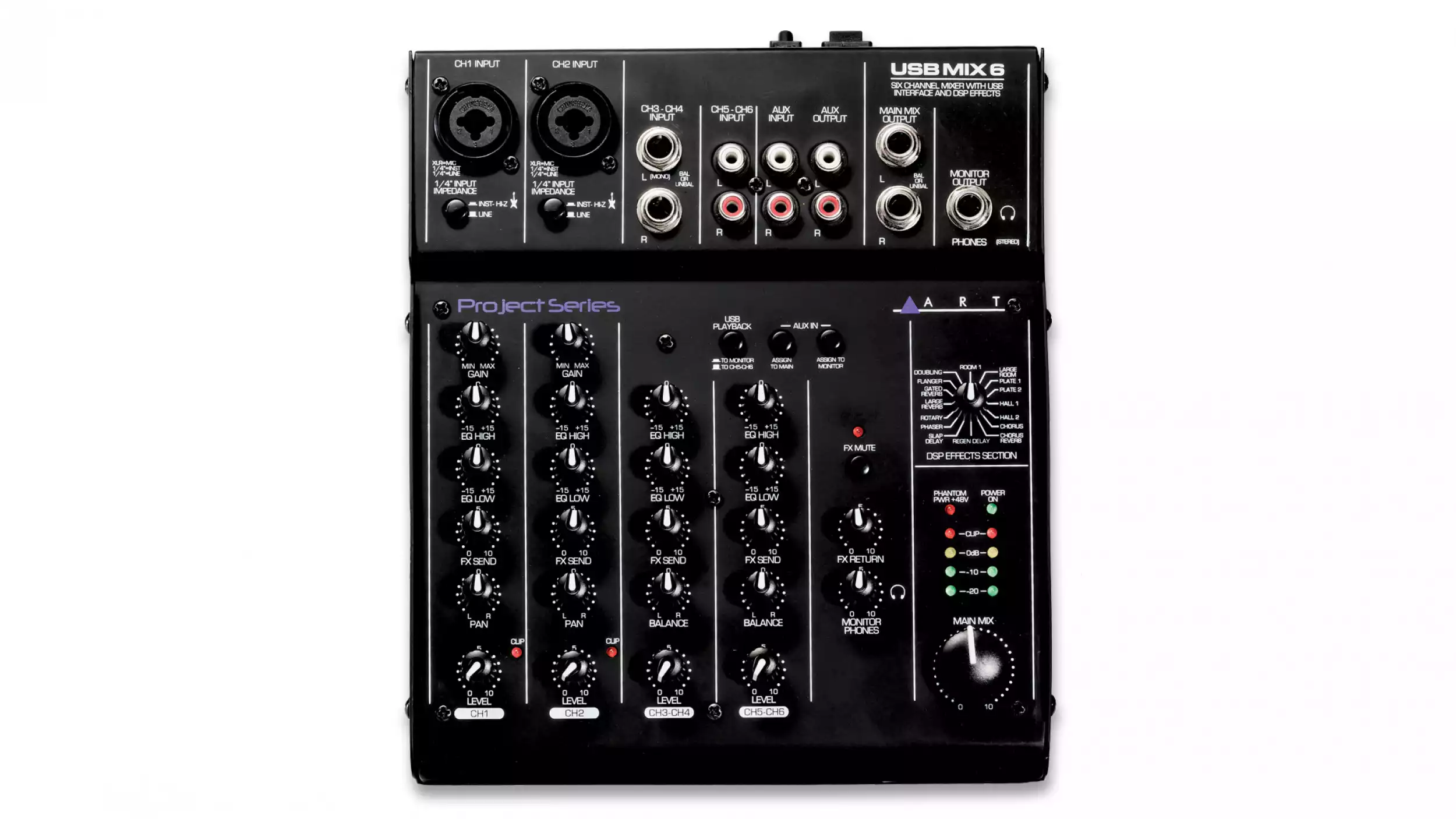

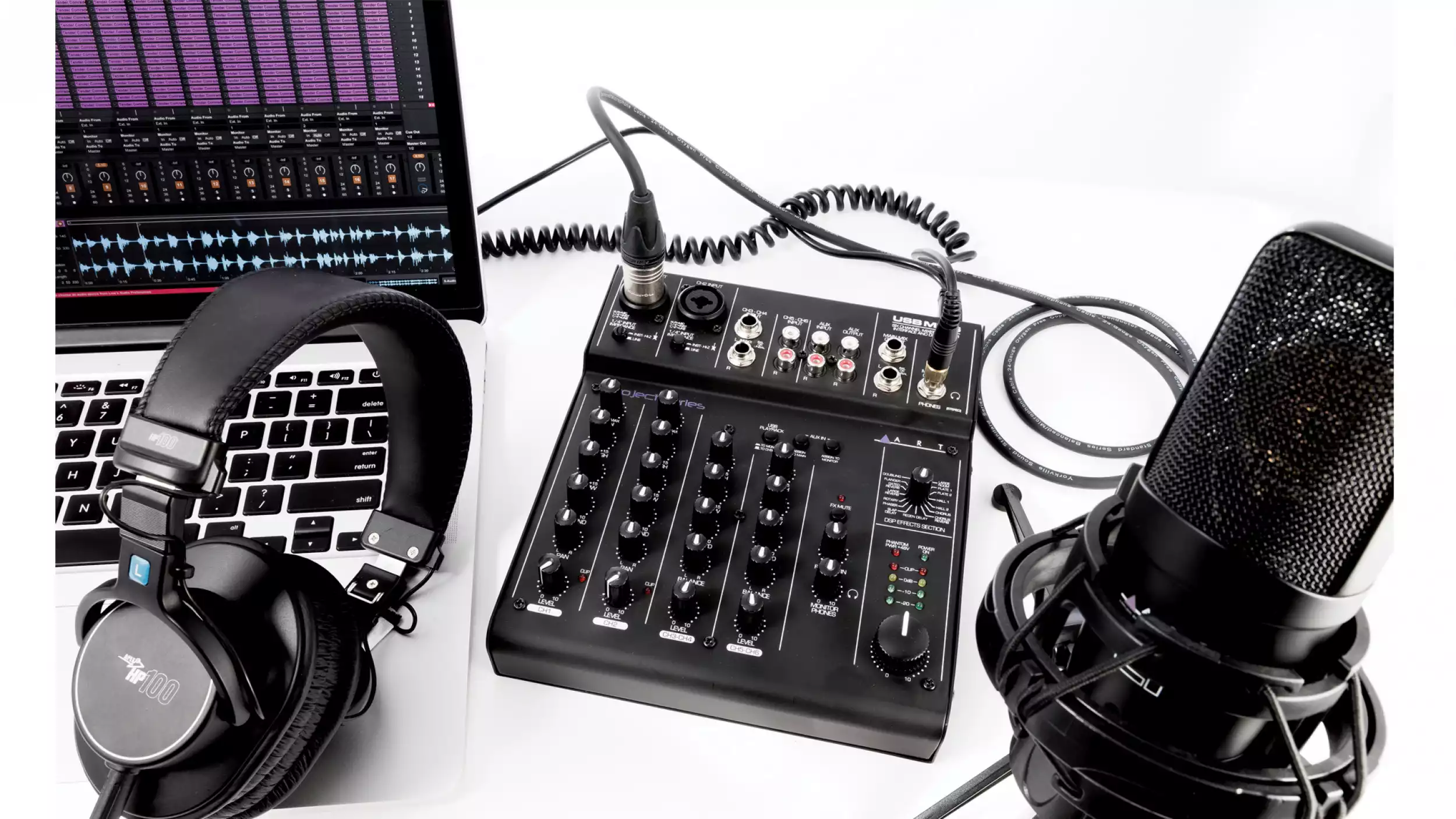

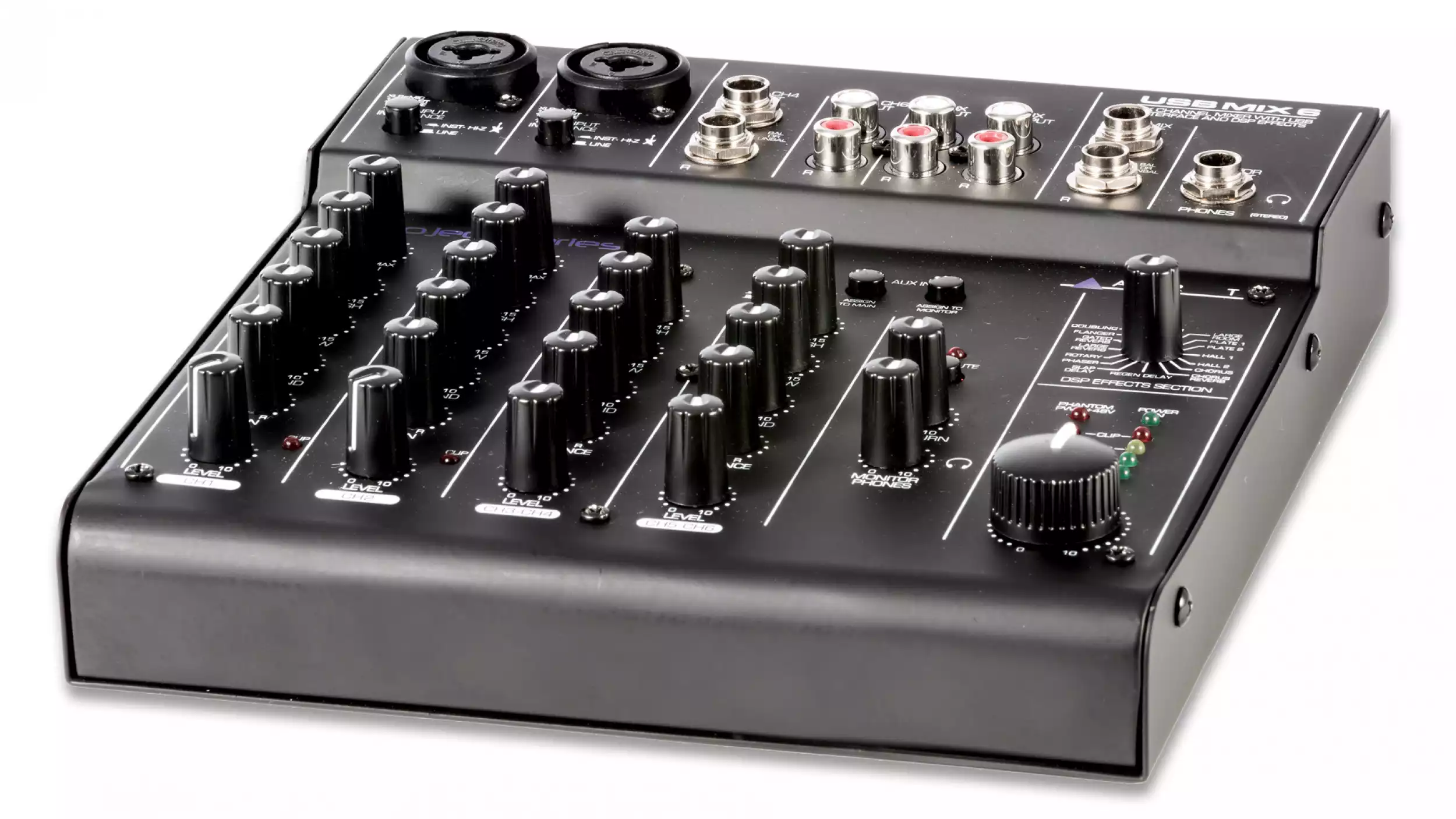

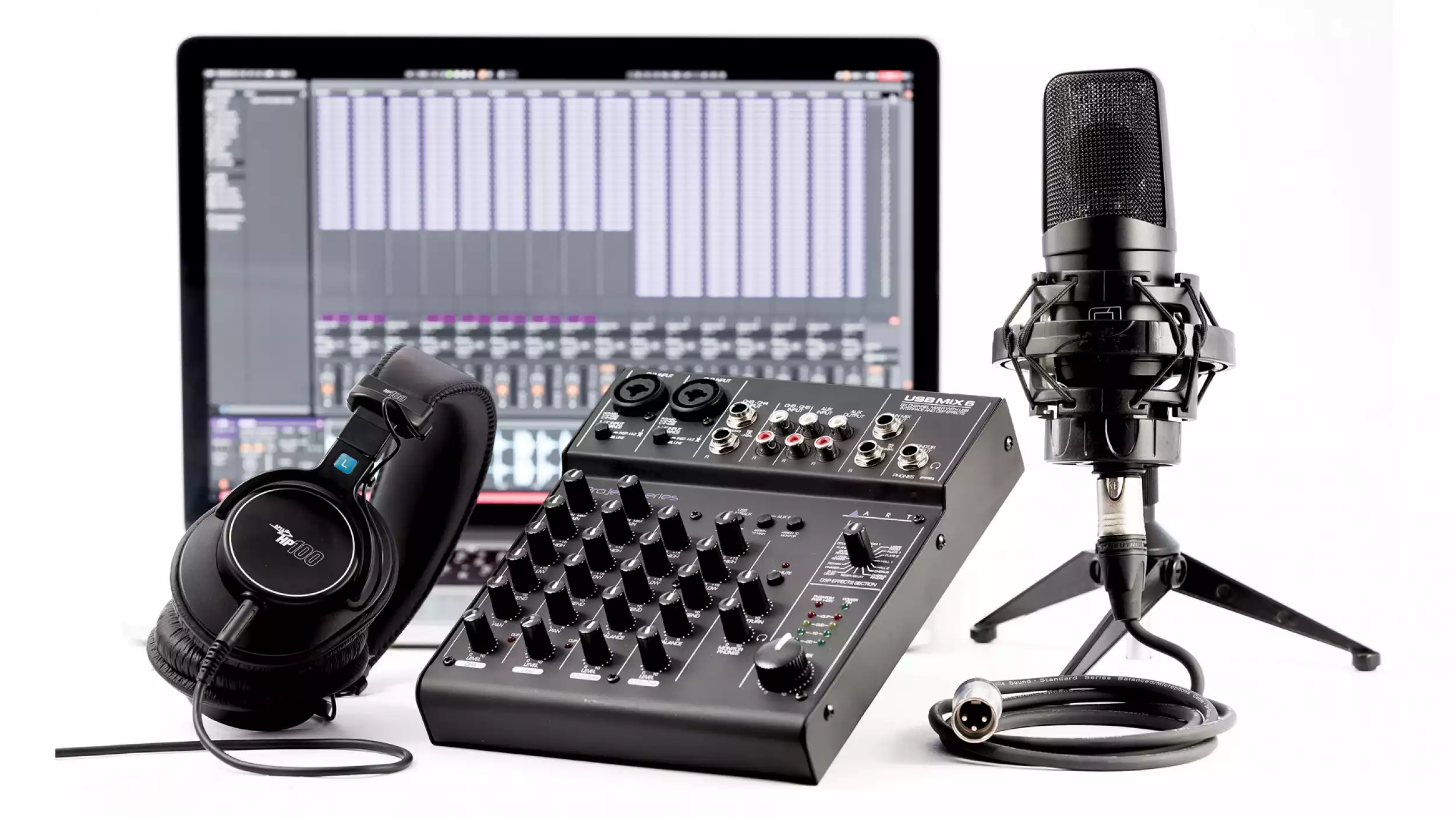

The USBMix6 provides a starting point for personal home studio recording, podcasting, voice-over work, and other creative applications. The built-in low-latency stereo digital effects add to its versatility.

Furthermore, it can also be used as a standalone mixer through the main mix output for live-sound reinforcement presentations. Use the USBMix6 to capture your latest idea for a song, or jam with a friend, whenever and wherever your creativity takes you. An AC power adapter is also included.

High performance low-noise design
Six discrete inputs (2 x mic / 2 x stereo line level)
Integrated stereo multi-FX with adjustable sends & returns
Independent level controls for main and headphone/monitor outputs
Integrated class compliant plug-and-play USB audio for Mac & Window computers

ART USBMix6 Specs
Form Factor Desktop
Display 2 x Color Multi-Segment LED Meter
Channels of I/O 6 Input / 6 Output
Maximum Sampling Rate 48 kHz / 16-Bit
Number of Microphone Preamps 2 Preamps
Built-In Microphone None
Input Level Adjustment 4 x Knob
Expansion Slots None
Signal Processing
Pad None
Gain/Trim Range Mic Inputs:
54 dB
Hi-Z Inputs:
39 dB
Monitor Outputs:
10 dB
Line Outputs:
10 dB
High-Pass Filter None
Solo/Mute None

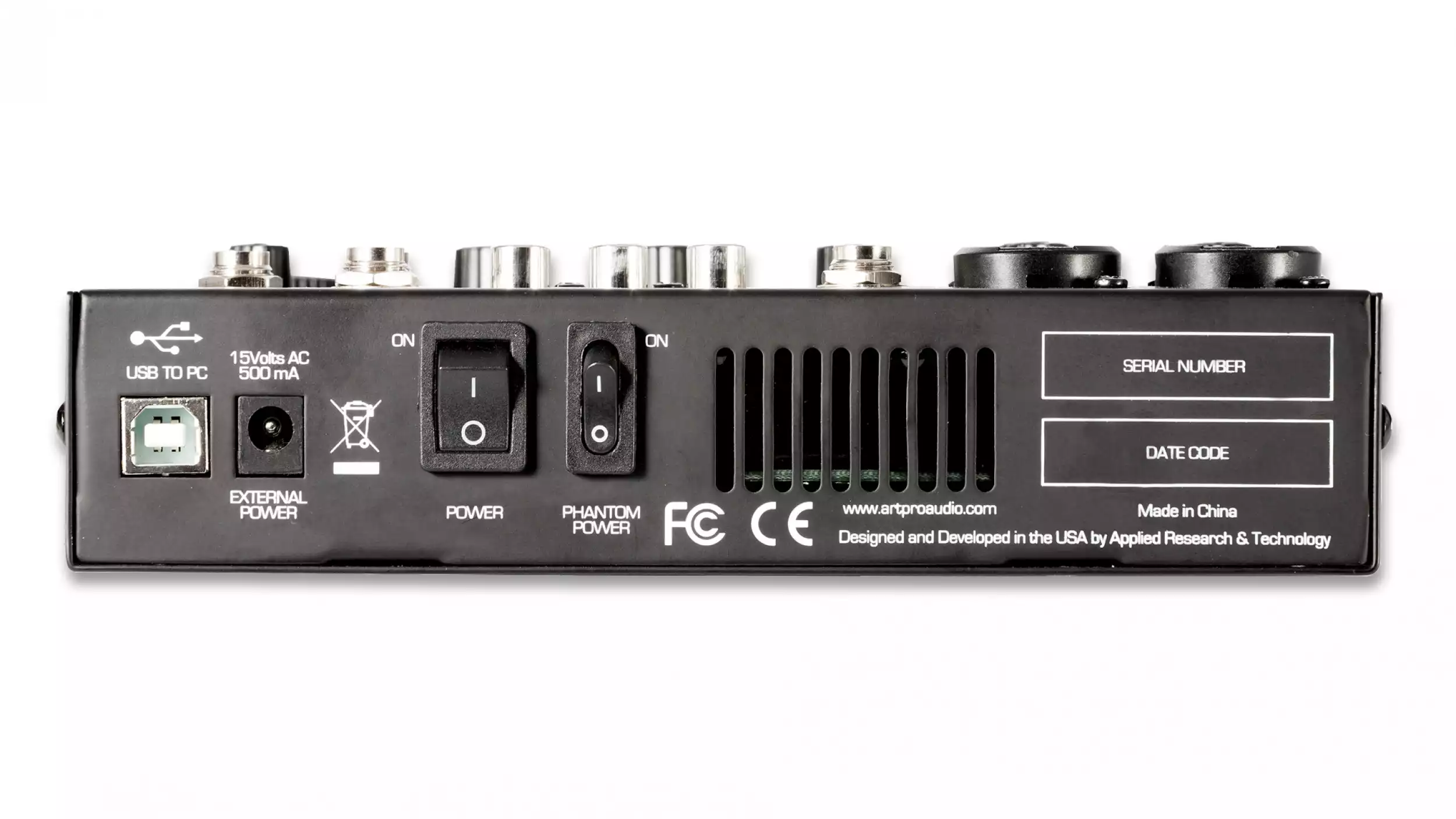

Connectivity
Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced Input
2 x 1/4" TRS Balanced Input
2 x Stereo RCA TS Unbalanced Input
2 x Stereo RCA TS Aux Input
2 x 1/4" TRS Balanced Monitor Output
1 x 1/4" TRS Headphone/Monitor Output
2 x Stereo RCA TS Aux Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB 1 x USB-B (Class-Compliant)
Host Connection Protocol USB 2.0
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response 0 Hz to 20 kHz
Maximum Input Level Mic Inputs:
+4 dBu
Line Inputs:
+20 dBu
Maximum Output Level Monitor Outputs:
+15 dBu
SNR 90 dB (Unity Gain)
Digital Audio
Sample Rates 44.1 / 48 kHz
Sample Rate Conversion None
Bit Depths 16-Bit
Latency 0.4 ms at 44.1 kHz
Sync Sources None
Clocking Internal:
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility macOS
Windows
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software None
Included Plug-Ins None
Mobile Device Compatibility None
Power
Power Requirements AC/DC Power Adapter (Included), USB Bus Power
AC/DC Power Adapter 15 VDC at 500 mA (Included)
Physical
Dimensions 1.9 x 7.4 x 8.5" / 47 x 186 x 215 mm
Weight 3.2 lb / 1.5 kg
Packaging Info
Package Weight 4.25 lb
Box Dimensions (LxWxH) 12.7 x 10 x 3.9"
