Analogni USB regleri/kanali sa fleksibilnim routing-om

Robustan endžin za efekte, koji uključuje više vrsta podesivih Reverb-a, Delay-a, itd.

4-kanalni dodeljivi return USB signala (2 stereo para), diretktno stereo snimanje na SD karticu.

Laka navigacija FX parametara. Vizuelno pregledanje fajlova na SD kartici putem displeja.

Postojeći (fizički) dugmići za Previous, Next, Record, i Play/Pause.

Bluetooth bežični striming direktno na kanal miksera.

Hi-Z switch za direktno povezivanje gitara, baseva ili drugih instrumenata.

100 Hz low-cut filter & 48V fantomskog napajanja za sve mikrofonske kanale.

Stereo line inputs, Aux/monitor outputs, Dedicated Control Room outputs

Headphone output with dedicated level control, L/R Assign switch per channel

12-segment stereo meters, Overload indicators on all channels

PFL/AFL channel solo, Footswitch input for FX Mute

Number of Analog Input Channels: 14 (8 Mono / 5 Stereo)

Number of Mic Preamps: 8

Analog Output Channels: 2 x Stereo Master Output, 2 x Stereo Control Room/Monitor Output

2 x Mono Aux Send Output, 1 x Mono FX Send Output, 1 x Stereo Headphone Output

Mix Routing: 1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup

Faders: 9 x 2.4" / 60 mm Channel Fader, 1 x 2.4" / 60 mm FX Fader

2 x 2.4" / 60 mm Bus/Subgroup Fader, 1 x 2.4" / 60 mm Master Fader

Meters Main Meter: 2 x 12-Segment LED

Meter Range: -30 dB to +20 dB Peak/Clip

Input Pad: None, Input Polarity: None; Dynamic Processing: None, Sidechain Filters: None

EQ: 3-Band Semi-Parametric (Mono Channels), 3-Band Shelving/Notch/Peak

EQ Parameters  - Mono Channels: High: ±15 dB at 12 kHz, Mid: ±15 dB at 100 Hz to 8 kHz, Low: ±15 dB at 80 Hz; Stereo Channels: High: ±15 dB at 12 kHz, Mid: ±15 dB at 2.5 kHz, Low: ±15 dB at 80 Hz

Graphic EQ: None

Filters: Input Channels - 1 x High-Pass: 100 Hz

Solo/Mute: Solo per Input Channel, Mute per Input Channel, Bus, FX Bus, Master

Built-In Effects: Yes

Sample Rates: 96 kHz

Bit Depth: 24-Bit

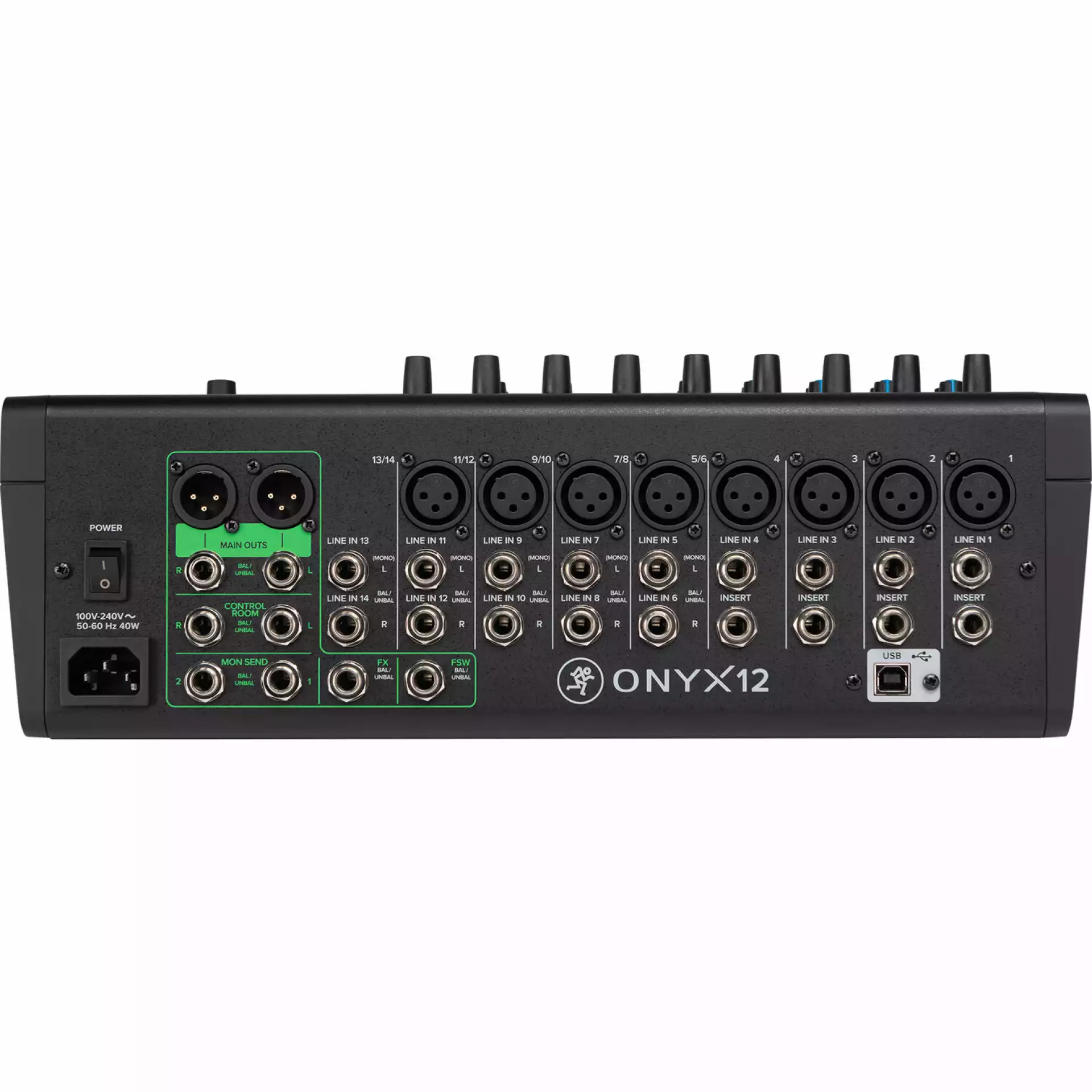

Analog Inputs: 8 x XLR 3-Pin Balanced Mic Input, 4 x 1/4" TRS Balanced/Unbalanced Line Input

4 x 1/4" TRS Unbalanced Line Insert, 2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input

10 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs), 1 x 1/4" TRS Footswitch Input

Analog Outputs: 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)

2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)

2 x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair)

2 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output

1 x 1/4" TRS Balanced/Unbalanced FX Send

Phantom Power             : +48 V (Applied to All Inputs)

Digital I/O: None, MIDI I/O: None

USB: 1 x USB Type-B (Audio Playback, Host Connection, Recording)

Max Multitrack Recording: 14 Tracks

Media Support: SD

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power Connector: 1 x IEC Input

Power Consumption: 40 W

Rack Mountable: No

Dimensions: 355.6 x 375.9 x 114.3 mm, Weight: 5.8 kg
