Build-in USB sound card

Connect the computer to record and play music

Input Channels

- MIC: 4 Combo jack) + 2 (XLR)

- STEREO: 2 (6,35 Jack) + 1 (3,5 Jack)

- MP3: 1

- USB Sound card: 2.0 Type A

- Bluetooth: 1

Output Channels

- CONTROL ROOM: L-R (6,35 Jack)

- PHONES: 1 (6,35 Jack)

- MAIN OUT: L/R (XLR)

Auxiliary

- 2-TRACK (RCA): L/R (IN & OUT)

- SEND: 1 ( 6,35 Jack)

- RETURN: 1 (6,35 Jack)

Input Channel Function

- EQ: HIGH (+/- 15dB, Frequency; 12KHz shelving)

         MID: (+/- 15db, Frequency; 2,5KHz shelving)

         LOW: (+/- 15db, Frequency; 80KHz shelving)

- PEAK: LED turns on when the signal is too high

Level Meter

2x5-segment LED meter (+6, +3, 0, -3, -10)

Effects

99 DSP (Hall, Room, Reverb, Delay, Chorus, Flanger, Phaser, Tremolo, WahWah...)

Phantom Power Voltage

+48V DC

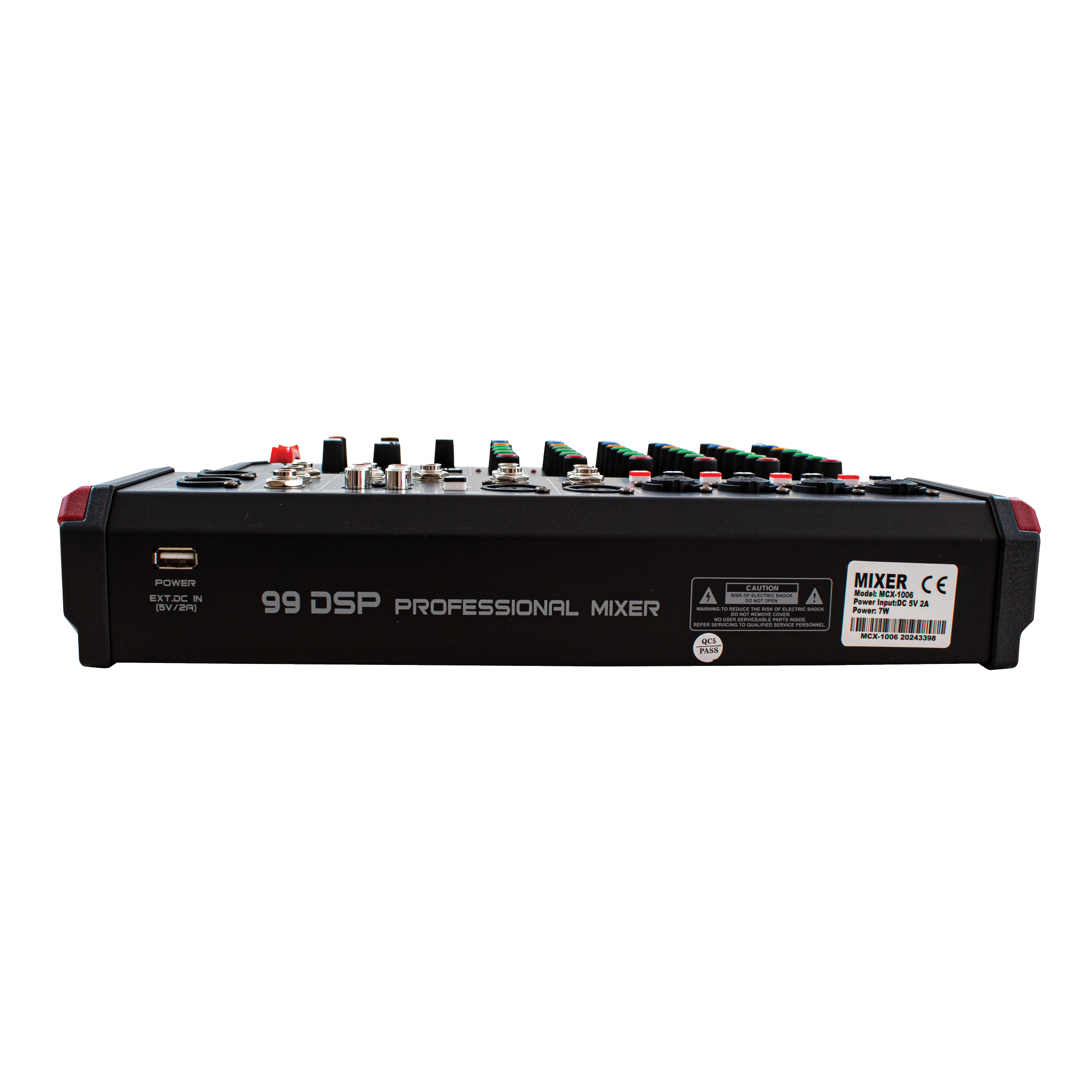

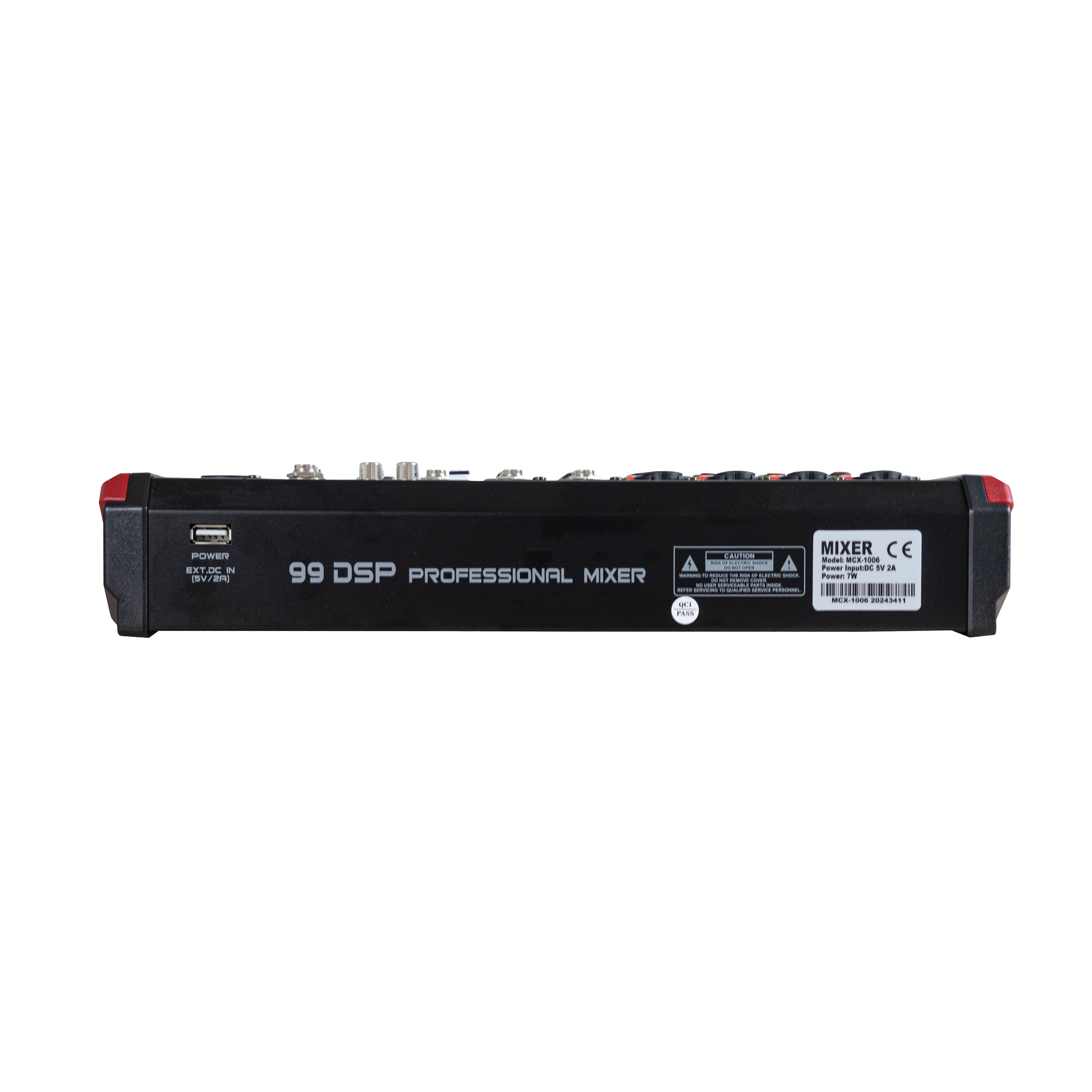

Power Input

EXT. DC IN: 5V-2A/2.0 Typ-A

Power Consumption

7W
