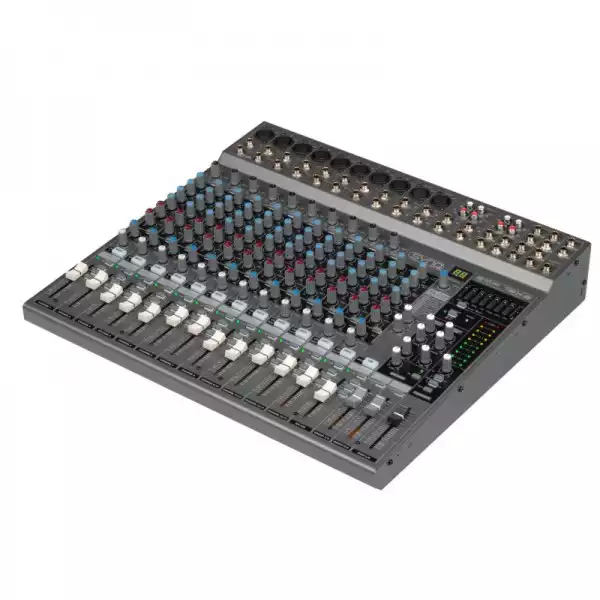

•16 channel PA-mixing console with very low noise architecture.
•4 subgroups with independent sub-masters
•Internal 24bit DSP-effect unit with 100 presets & foot switch input
•USB in/out for direct recording to PC
•12 balanced input channels, 8 Mono + 4stereo: Input gain
Inserts on mono channels
Peak indication @ -5dB
High pass filter @ 75Hz
3band equalizer with parametric mid
1 AUX send pre (monitoring)
1 AUX send with pre/post switch
EFX send for effects section (post)
PAN/BAL control
Channel mute button
PFL-switch
LEVEL with 60mm fader control
L-R and subgroup 1-2 3-4 select
•48V Phantom power on all balanced micros
•Use of external effects possible
•Balanced Main L/R + subgroup output controls
•Headphone and control room output
•2x 10section LED VU-meters
•7band equalizer on master mix
•External power transformer
•19" brackets for easy rack mounting included

Technical Information

Max output level (0.5% thd @ 1kHz):
+26dB (MAIN L/R)
+20dB (ALT 3/4, AUX/EFX, CTRL ROOM)
+20dB (INSERT)
More than 100mW (HEADPHONES) @33Ohm

T.H.D:

Frequency response:
20Hz~20kHz, +1/-2dB (MIX L/R, GROUP 1-2/3-4, AUX1, AUX2/EFX SEND, CTRL ROOM) @10kOhm

Hum and Noise (average Rs=150Ohm):
-127dB equivalent input noise
-95dB residual noise (MIX L/R, GROUP 1-2/3-4, AUX1, AUX2/EFX SEND, CTRL ROOM)
-88dB (MIX L/R, GROUP 1-2/3-4, AUX1, AUX2/EFX SEND, CTRL ROOM) Master fader at nominal level and all channel assign switches off.

Maximum Voltage Gain:
74dB MIC IN TO Main L/R
74dB MIC IN TO GROUP 1-2/3-4
66dB MIC IN TO AUX1/AUX2 (PRE)
76dB MIC IN TO AUX2 (POST)
76dB MIC IN TO EFX
80dB MIC IN TO CONTROL ROOM L/R
52.2dB IN TO REC L/R
54dB LINE IN TO MIX L/R
54dB LINE IN TO GROUP 1-2/3-4
46dB LINE IN TO AUX1 / AUX2 (PRE)
56dB LINE IN TO AUX2 (POST)
60dB LINE IN TO CONTROL ROOM L/R
44dB STEREO IN TO MAIN L/R
44dB STEREO IN TO GROUP 1-2/3-4
16dB AUX RETURN IN TO MIX L/R
12dB AUX RETURN IN TO AUX1/AUX2
20dB TAPE IN TO MAIN L/R

Crosstalk (@ 1kHz):
-70dB between input channels
-70dB between input/oputput channels

Gain Control (mono input channel)
44dB Variable (-50dB ~ -6dB) (-30dB ~ +14dB)

Gain Control (combined mono/stereo input channel)
40dB Variable (-20dB ~ +20dB)

Mono input channel Equalization:
HIGH: 12kHz shelving
MID: 100-8kHz peaking
LOW: 80Hz shelving
*Turnover/roll off frequencies: located 3dB below max. boost/cut

Stereo input channel Equalization:
HIGH: 12kHz shelving
HIGH MID: 3kHz peaking
LOW MID: 500Hz peaking
LOW: 80Hz shelving
*Turnover/roll off frequencies: located 3dB below max. boost/cut

Graphic Equalizer:

7-band (63, 160, 400, 1K, 2.5K, 6.4K, 16KHZ)
LED Meters:
2x 10 segment LED for MAIN L/R, GROUP1-2/3-4 or PFL

Internal Digital Effect:
100 selectable presets
FOOT Switch control (ON/OFF)

Channel indicators:
Peak: an indicator for each channel turns on when the pré-channel fader signal is 5dB below clipping

Phantom Power (balanced input): +48V DC
Power Supply: AC 230 V, 50Hz
Power consumption: 40W

Weight: 5,4 kg
Dimensions: 436(W) x 90(H) x 420(D) mm
