Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

    24-bit 16 program DSP effects
    48V phantom power for XLR inputs
    3-band EQ per channel
    7-band global graphic EQ
    Internal stereo power amplifier
    Balanced main outputs

    Weight 6.80kg

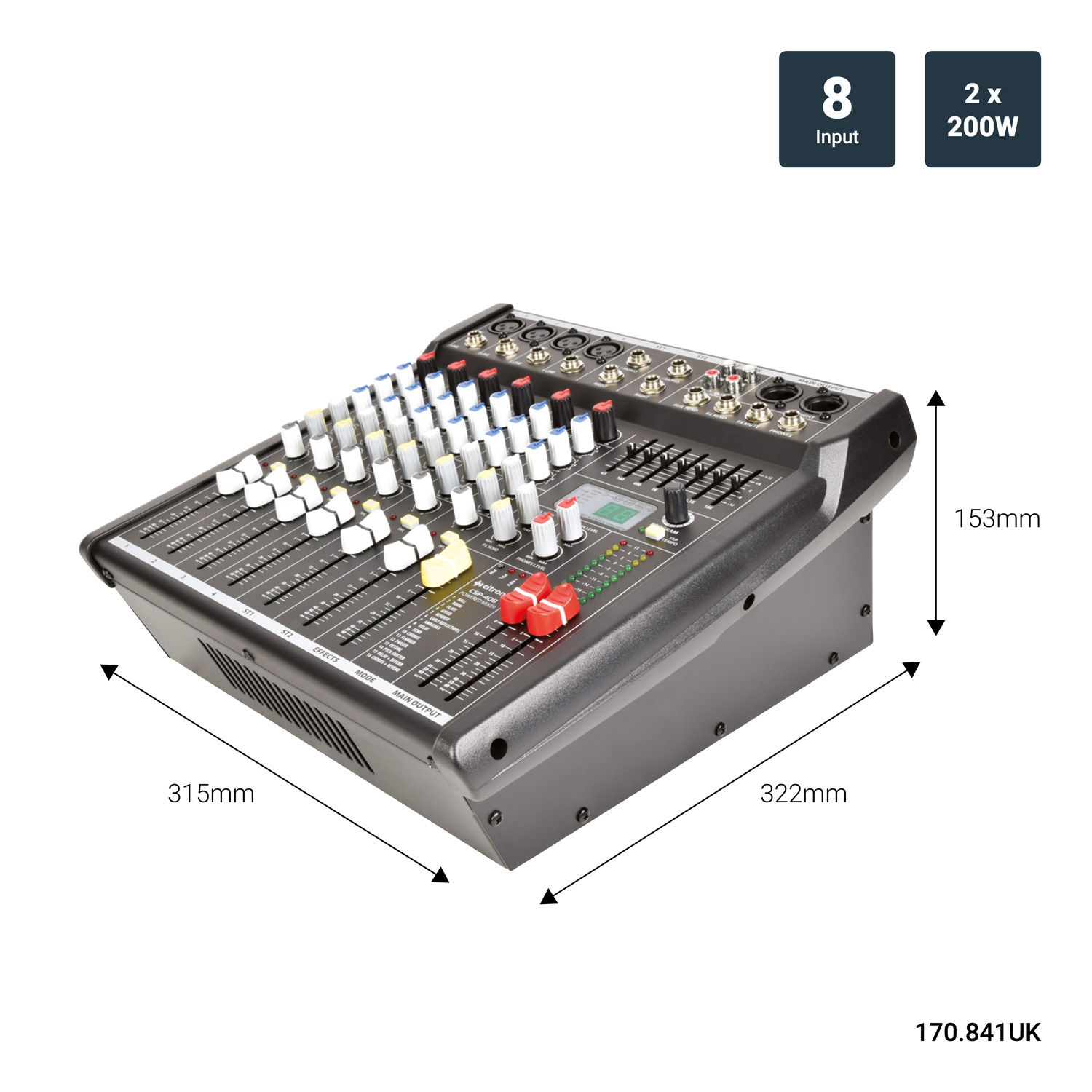

    Dimensions 315 x 322 x 153mm
    Inputs : Mic/Line 4 x balanced XLRF/TRS jack
    Output power : 8 Ohms 2 x 130Wrms
    Output power @ 4 Ohms 2 x 200Wrms
    Fuse T10A (5 x 20mm, 250V)
    Power consumption 600W
    Power supply 230Vac 50Hz (IEC)
    Speaker : outputs L+R SPK connectors
    Effects 16 program DSP (24-bit sigma-delta, 40khz)
    Phantom power +48V (XLR inputs)
    Frequency response 20Hz-30kHz (0.5dB)
    Input level +24dBu
    Output level : line +26dBu
    CMRR >74dB (mic 1kHz)
    THD +N <0.01% (channel to main out)
    Crosstalk >85dB (fader mute), >82dB (channel)
    Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
    EQ: high 12kHz ±15dB shelving
    EQ: mid 2.5kHz ±15dB band pass
    EQ: low 80Hz ±15dB shelving
    Input impedance : mic (balanced) 2k Ohms
    Input impedance : line (balanced) 10k Ohms
    Sensitivity : mic -60 to +14dBu
    Sensitivity : line -40 to +14dBu
    2-track 2 x RCA in & out (-2dBu)
    Output impedance <75 Ohms
    Headphone output 6.3mm jack, 30-600 Ohms
