• Standard machine cabinet type 1 U height design, black aluminuim oxide drawbench panel.

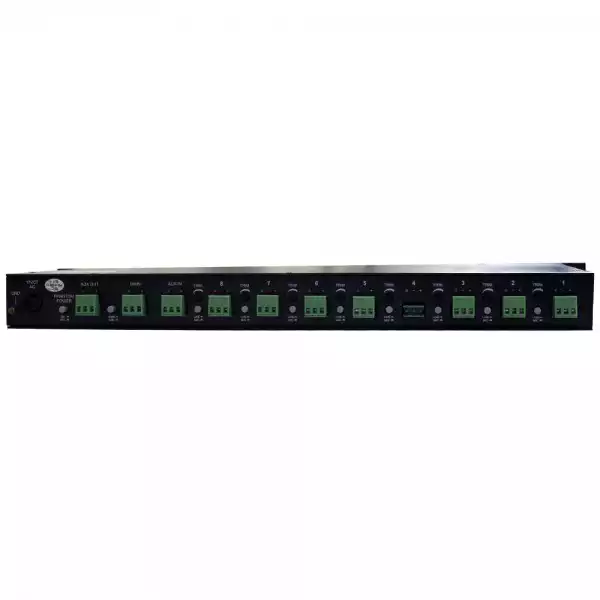

• With 8 inputs interface which can be converted independently, adopting European style terminals.
• Double bus design with main channel/ accessory channel output selector.
• One independent accessory input interface, adopting European style terminals.
• Multi-channel input audio mixed into public output bus directly, adopting balanced input and output.
• With line and mic selective switch for each channel, output to AUX connector.
• Each input channel can be gain controlled, input with low cut filter.
• Knob input level can be controlled independently in each channel.
• With phantom power switch power supplied to condenser microphone.
• Knob is independently controlled in main output and auxiliary output.
• Main output is equipped with voltage limit which is with by-pass switch, threshold value and ratio value and can be controlled.
• With LED output indicator on panel, and with earphone output function.

1-8MIC/ Line - 0.25mV/5KΩ balanced, ±7.75V/5KΩ balanced
AUX1 RCA In - ±0.775V/20KΩ unbalanced

Output Level/Impedance
Master 1, -2 - +4 dBμ/440Ω balance (MAX:±7.75V)
Main Output MIC Pad - -50 dB
Low Cut - 18 dB/octave at 100 Hz

Frequency Response
Less Than - -1dB(20Hz~20KHz)

S/N Ratio
MIC - More than 60dB
Line - More than 75dB

THD
MIC - Less than 0.05%
Line - More than 0.03%

Cross-talk
MIC - More than 60dB
Line - More than 75dB

LIMITER/COMPRESSOR
Threshold Adj. Range - -20 dB to +20 dB
Ratio Adj. Range - 0 to 100%
LED Bar Graph - -18, -12, -6, -3, 0, +3, +6, +12VU (0 VU = +4 dB) Average or Peak reading

Power Consumption

Power - 20W
Power Supply - ~110V/60Hz or ~230V/50Hz

Dimensions - 484x190x44mm
Weight - 3.9Kg
