DP-8 Power Schedule Controller
1U rack-mount digital power control unit for timed switching of 8 mains power feeds. Up to 99 switching scenes can be stored to activate at a specific time on a single day or multiple days of the w...
- 99 programmable timer switching scenes
- Programmable voltage and current limiter
- Power-up and power-down learning sequence

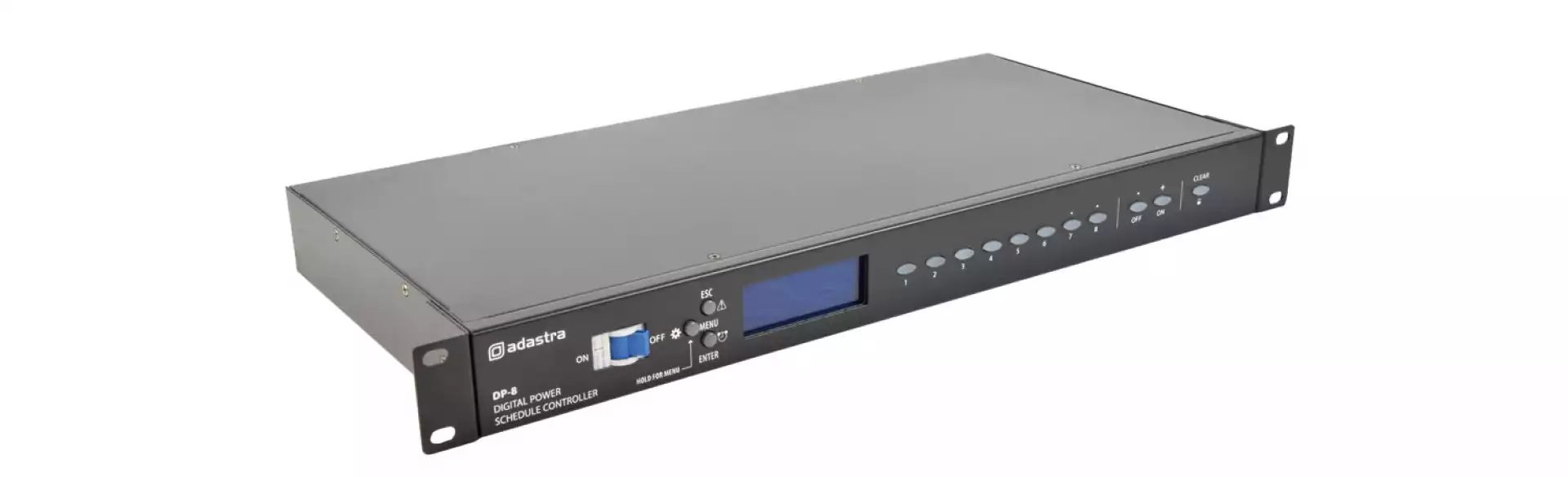

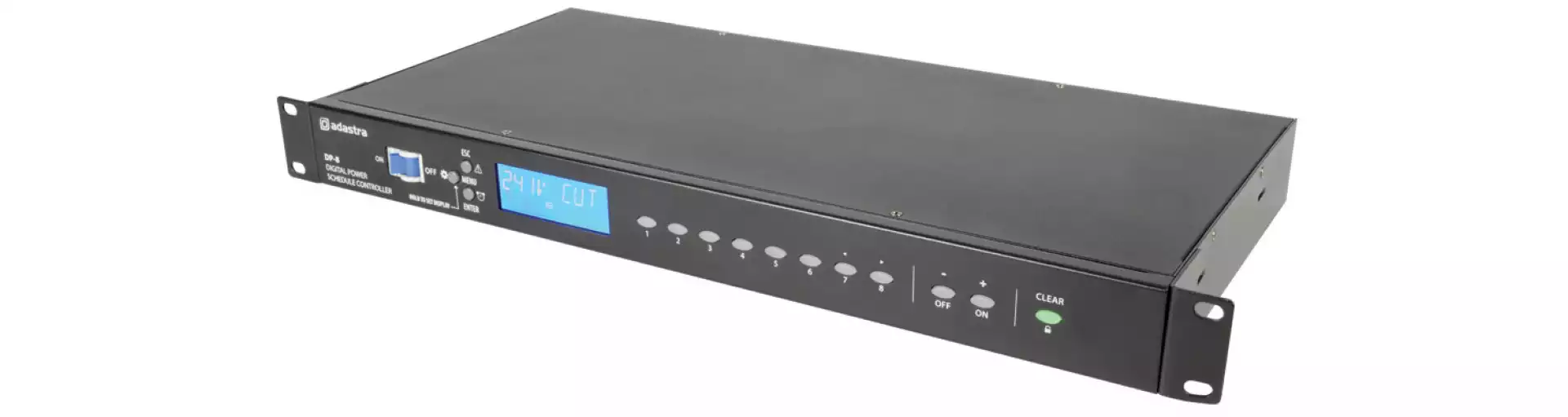

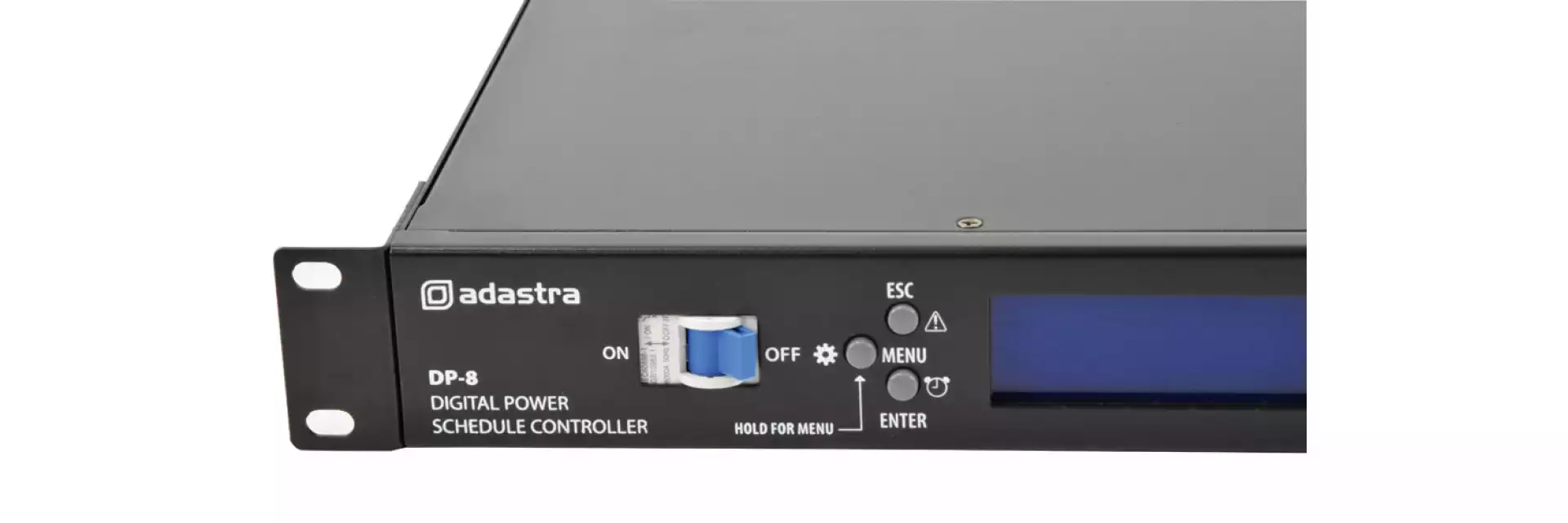

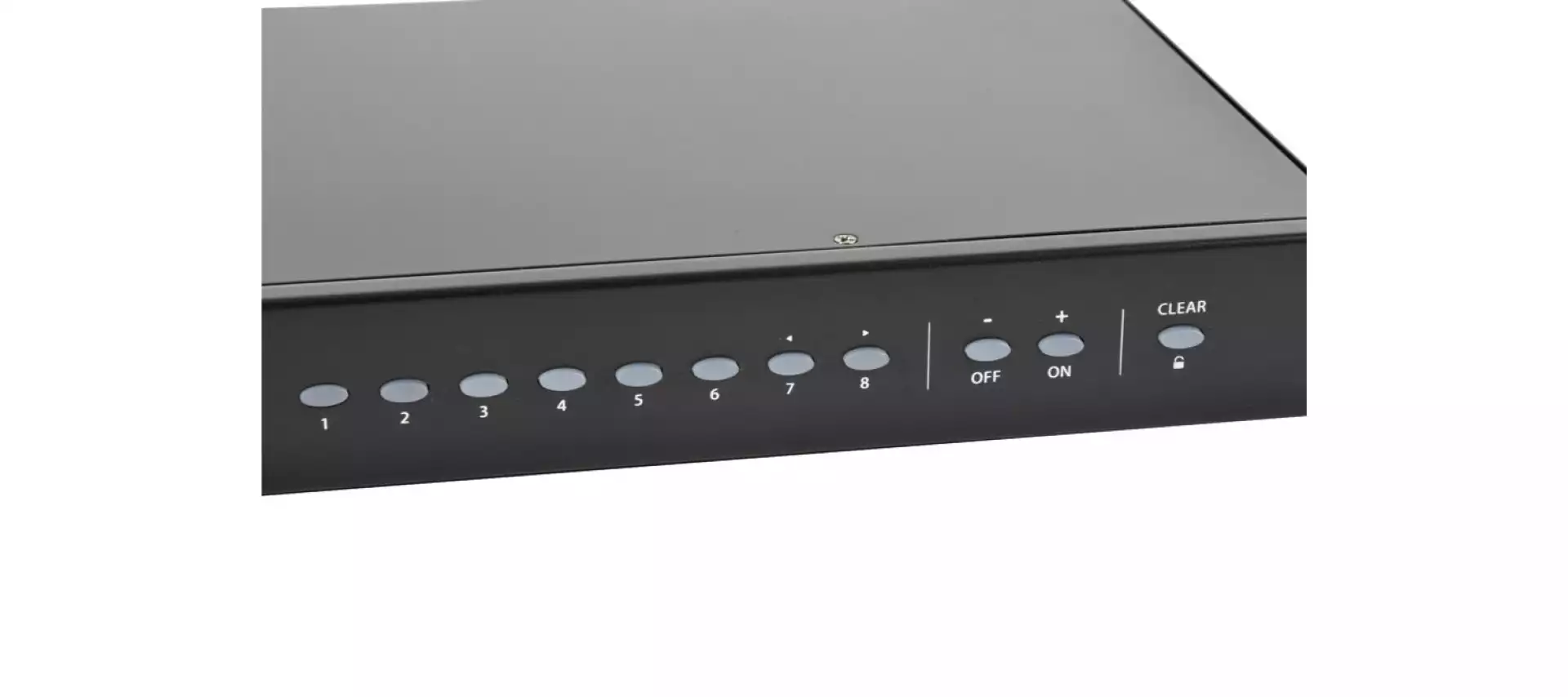

DP-8 Power Schedule Controller
1U rack-mount digital power control unit for timed switching of 8 mains power feeds. Up to 99 switching scenes can be stored to activate at a specific time on a single day or multiple days of the week. Preset power-up and power-down functions allow the user to record a switching sequence in real time, which is then replayed whenever the power up or power down function is selected. Global voltage and current limit parameters can be set to activate an alarm and/or cut-off when exceeded. Each IEC output has a maximum current capacity of 10A and the total current for the DP-8 is governed by a 32A circuit breaker. Higher power switching is possible by using the IEC outputs to trigger high current 230V relays. Timed and immediate access control for up to 8 groups of mains powered appliances, ranging from rack-mounted equipment to full buildings control.
- 99 programmable timer switching scenes
- Programmable voltage and current limiter
- Power-up and power-down learning sequence
- Up to 32A current across 8 IEC outputs
- USB connection for firmware upgrades
Specification
- Power supply110-230Vac, 50/60Hz (hard-wired)
- Current max.32A total
- Contact rating10A for any output
- Time settingDay(s), hours, minutes, seconds,
- Internal programmes99 schedule scenes, auto power sequence

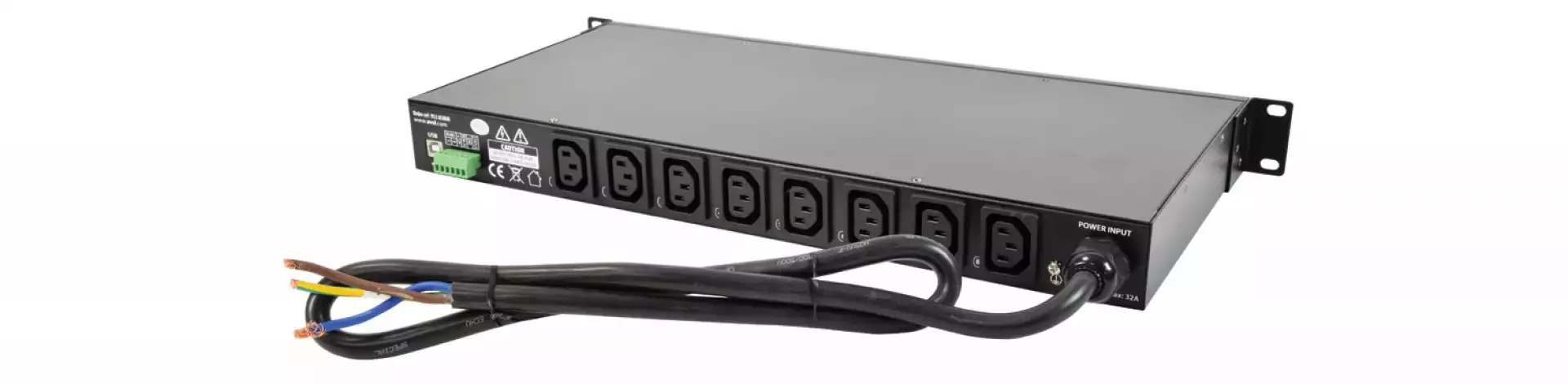

- Outputs8 x IEC power outlets
- ConnectionsUSB port, RS485, 12Vdc out, remote, GND, Status
- Dimensions482 x 250 x 44mm
- Weight3.0kg
