The PA2240BP is a bridgeable and ultra-reliable 2-channel 100 volt power amplifier that can be used in all your big 100 volt projects. It can be configured as a 2-channel amplifier (2 x 240 watts) or it can be bridged into a 1 x 480 watts power amplifier if you need to power a big group of loudspeakers up to 480 watts.
Both channels have a program and priority input with independent bass and treble tone control that guarantees an excellent sound experience, even in tough acoustical conditions. The emergency priority input can be activated by contact closure to override the program or music input.

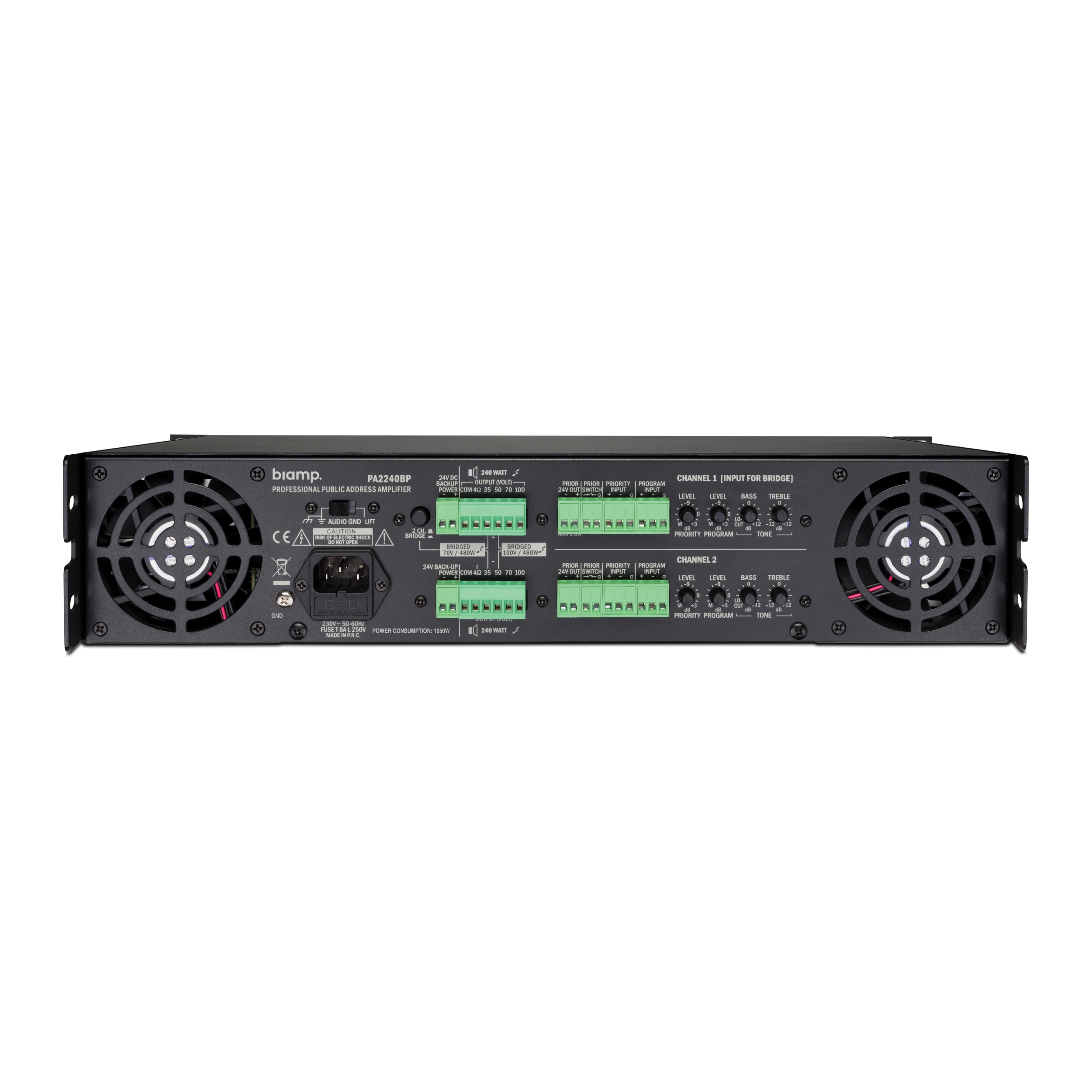

The PA2240BP operates on 230V AC and 24V DC, what makes him excel other power amplifiers. In this way the unit can easily be used in evacuation systems compliant to the EN60849 regulation. As all the controls of the PA2240BP are located at the back panel, changes of the amplifier's settings by unauthorised or unqualified people will most likely be prevented.
As reliability is extremely important in the install and contractor audio market, this multifunctional PA2240BP will definitely be your favourite constant voltage power amplifier.
|
dynamic output power 4 ohms |
2 x 240 watts |
RMS output power 4 ohms |
2 x 240 watts |
|
RMS output power 8 ohms |
2 x 120 watts |
dynamic output power bridged 8 ohms |
480 watts |
|
output power RMS 100 volts |
2 x 240 watts |
output power RMS bridged 100 volts |
480 watts |
|
minimum impedance load per channel |
4 ohms |
minimum impedance load bridged per channel |
8 ohms |
|
power consumption (max) |
1050 watts |
19" (483 mm wide) rack mounting |
yes |
|
height- rack units (1U=44 mm) |
2 U |
depth (build in) |
411 mm |
|
depth (incl front) |
420 mm |
power supply |
230 VAC |
|
emergency power supply |
24 VDC |
output voltage tappings |
100 - 70 - 50 - 35 volts - 4 ohms |
|
output channels |
2 |
line input balanced |
2 |
|
tone control |
yes |
priority input contact |
2 |
|
emergency input |
yes |
priority output |
24 VDC |
|
priority levels |
1 |
frequency response (in Hz) |
35 - 22 k |
|
cooling system |
fan |
applicable in 100V |
yes |
|
applicable low impedance |
yes |
Net weight product (kg) |
21.70 |
