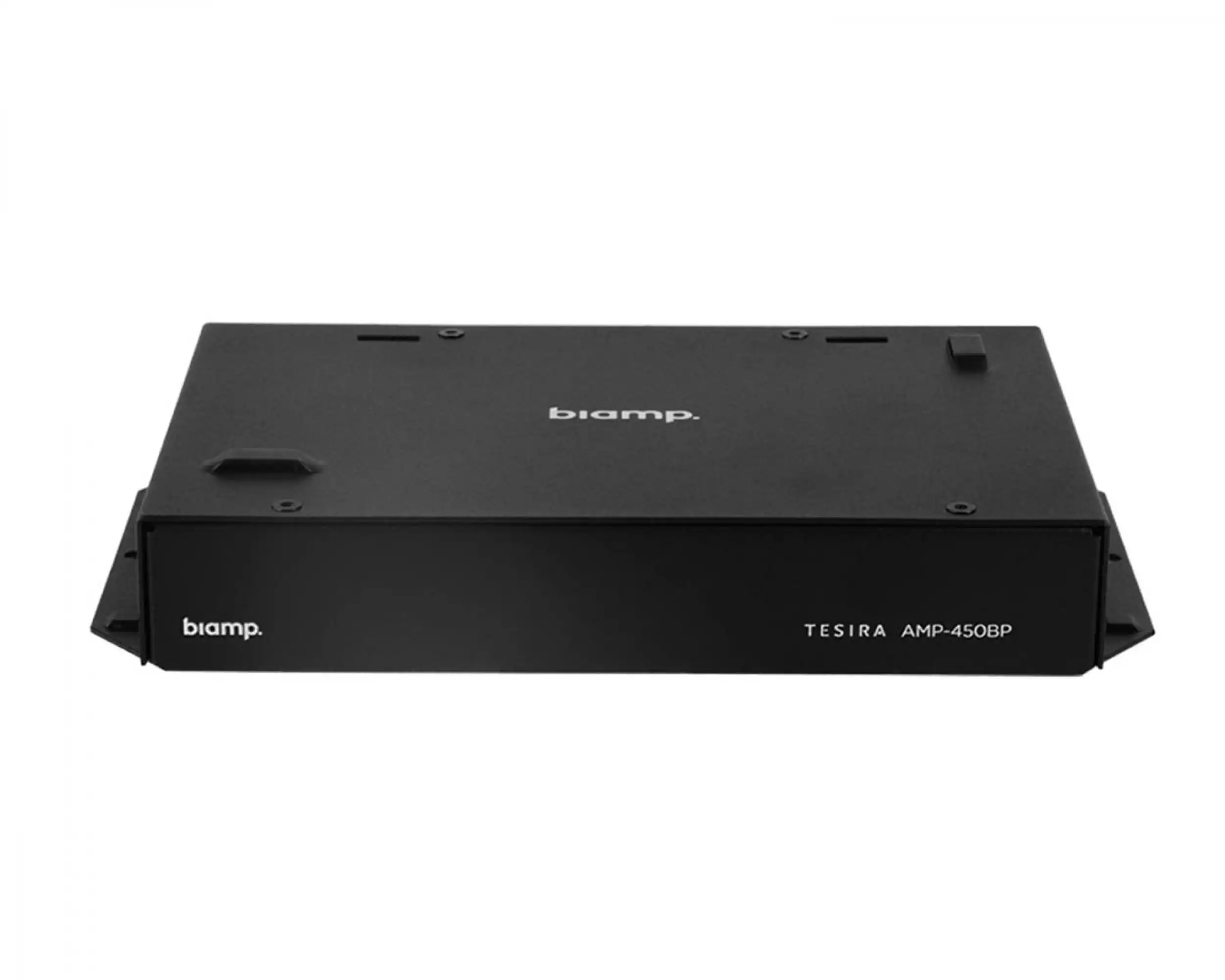

Tesira AMP-450BP 4x50W PoE Discreet Conferencing Amplifier
The Tesira® AMP-450BP is a four-channel PoE+ (IEEE 802.3at Class 4, 30W) conferencing amplifier. The output channels are software configurable, including selectable power versus channel count. Suitable for air handling spaces, the amplifier can be located close to ceiling speakers if desired, and can even be mounted directly to the back can of a Desono™ C-IC6 loudspeaker. Each AMP-450BP comes with an optional mechanical enclosure to protect electrical connections and comply with typical code requirements for above-ceiling installations. The AMP-450BP includes an internal limiter, and is capable of providing 3 watts of continuous power to all four channels. The Tesira AMP-450BP is also capable of operating in a burst mode to handle peak signals, providing up to 50 watts (4Ω load) or 30 watts (8Ω load) per channel. The amplifier serves as a dedicated endpoint in a Tesira system, making installations easier to design, support, and maintain. The AMP-450BP is ideal for TesiraFORTÉ®-equipped conference rooms or other applications where sound reinforcement is needed.
Product Features
Four channels; 3 watts of continuous power per channel
Burst mode to handle peak signals in accordance with ANSI/CTA-2006-B; supports up to 50 watts (4Ω load) or 30 watts (8Ω load) per channel
Powered by PoE+ (IEEE 802.3at Class 4, 30W)

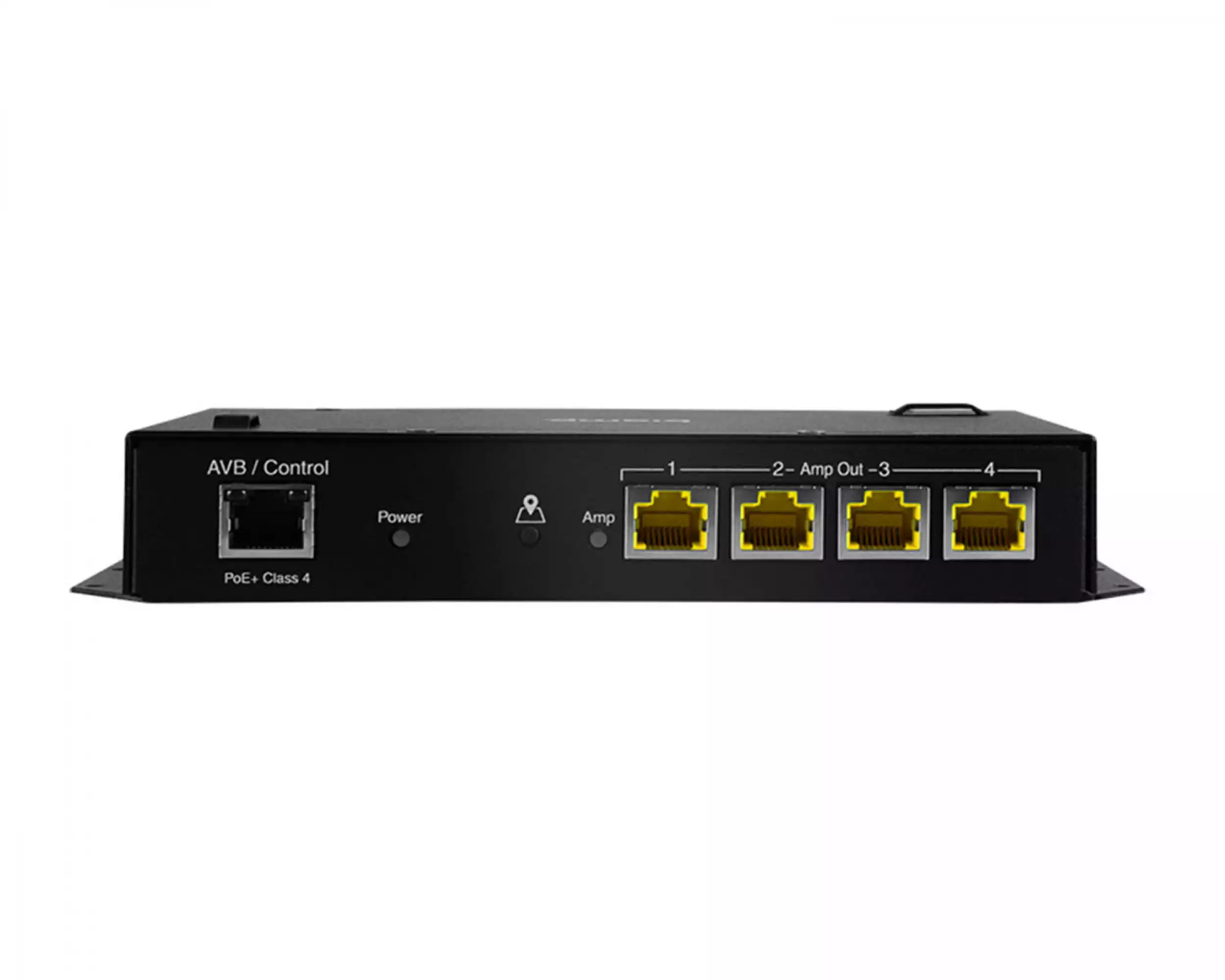

RJ-45 connectors enable termination-free connections to compatible speakers like the Desono C-IC6
Class D amplifier topology
Fanless operation
BPAK accessory included
Audible locate function available on the front panel
Includes internal limiter function
Software-selectable power versus channel count
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Configurable via Tesira software
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty
Product Specifications
General
Network Connection: RJ-45 with Ethernet cable (Cat 5e and above)
Number of Channels: 4
Connectors: RJ-45
Amplifier Topology: Class D
Burst Power Output (per ANSI/CTA-2006-B @ 1kHz):
4Ω (per channel): 50W
8Ω (per channel): 30W
Continuous Power Output:
Single Channel Driven (4Ω, 8Ω): 15W
Dual Channel Driven, (4Ω, 8Ω): 7W
Four Channel Driven, (4Ω, 8Ω): 3W
THD+N (20Hz-20kHz, at continuous power): < 0.3%
Frequency Response (20Hz-20kHz): ± 1dB
Dynamic Range (20Hz-20kHz BW): > 90dB
Minimum Operational Load: 4Ω
Intermodulation distortion (SMPTE): <0.3%
Cross Talk (channel to channel @ 1kHz): < -90dB
Cooling: Convection
Power: PoE+ (IEEE 802.3at Class 4 , 30W)
Indicators:
Power Indicator (Green/Yellow/Red LED)
Amp Status Indicator (Green/Yellow/Red LED)
Physical
Dmensions:
Height: 1.2 inches (30mm)
Width: 7.7 inches (195mm)
Depth: 4.7 inches (120mm)
Weight: 1.5 lbs (0.7 kg)
Environmental:
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
Compliance:
FCC Part 15B (USA)
UL and C-UL listed (USA and Canada)
CE Marked (Europe)
KCC (Korea)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
