MARTIN WISMAN TPA-250 - 100V pojačalo
Garantujemo najnižu cenu!
- Centralni magacin

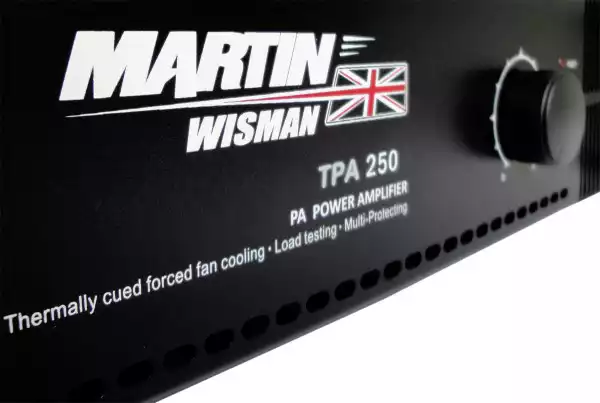

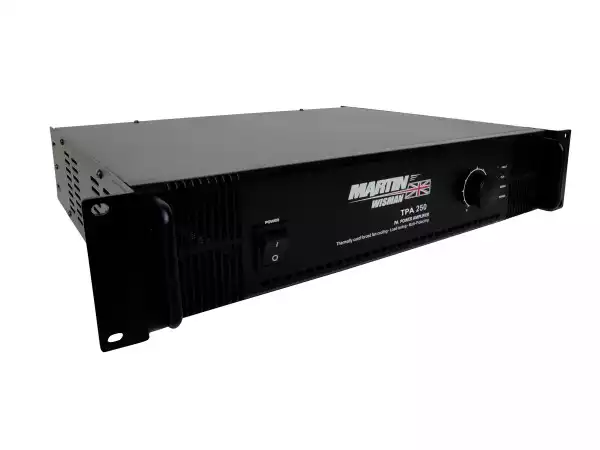

TPA 250 - Public Address Power Amplifier
Power supply: 230 V AC, 50 Hz ~
Output power: 250 W RMS
Output type: 70 V, 100 V or 4-16 W
Output current: 70 V 5 A / 100 V 3.5 A
Line input: 300 mV, 10 kOhms

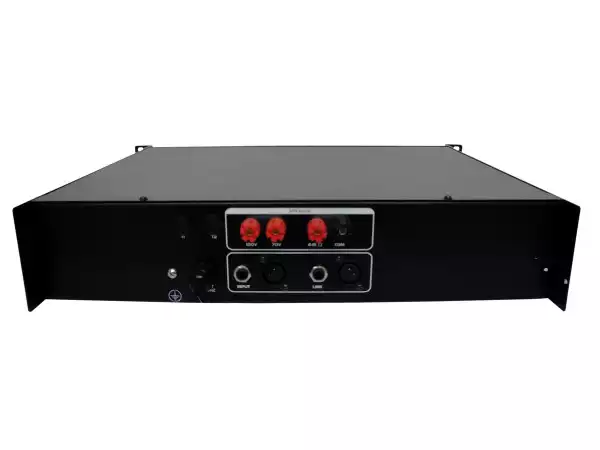

Output-connectors: Screw conn, terminal block
Frequency range: 80 Hz - 16 kHz
Distortion: 0.5 % (1 kHz)
S/N-ratio: Aux: 90 dB
Dimensions: 483 x 385 x 92 mm
Weight: 16 kg
1 Line In / 1 Line Out
70 V, 100 V PA outputs
4-16 ohm output for connecting a passive speaker system
Master control
Signal, clip, fault indicator
19” dimensions
Protection-circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
Load detection and power control
TPA 250 - Public Address Power Amplifier
- Power supply: 230 V AC, 50 Hz ~
- Output power: 250 W RMS
- Output type: 70 V, 100 V or 4-16 W
- Output current: 70 V 5 A / 100 V 3.5 A
- Line input: 300 mV, 10 kOhms
- Output-connectors: Screw conn, terminal block
- Frequency range: 80 Hz - 16 kHz
- Distortion: 0.5 % (1 kHz)
- S/N-ratio: Aux: 90 dB
- Dimensions: 483 x 385 x 92 mm
- Weight: 16 kg
- 1 Line In / 1 Line Out
- 70 V, 100 V PA outputs
- 4-16 ohm output for connecting a passive speaker system
- Master control
- Signal, clip, fault indicator
- 19” dimensions
- Protection-circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
- Load detection and power control
|
MODEL |
TPA 250 |
|
|
|
|
|
|
Rated Output Power |
250W |
|
|
|||
|
Output1 |
4 to 16 Ohms |
|||||
|
Output2 |
70V |
|||||
|
Output3 |
100V |
|||||
|
Output current |
3.6A @70V |
|
||||
|
2 5A @100V |
|
|||||
|
Frequency Response |
+/-2dB(60Hz to 16kHz) |
|||||
|
THD |
0.1% |
|||||
|
Signal/Noise |
>96dB |
|||||
|
Input Signal |
0dB 10kOhms |
|||||
|
Power Supply |
230V~50Hz |
|||||
|
Power Supply Fuse |
10A |
|||||
|
Pecondary coil Fuse |
10A |
|||||
|
Net weight |
12,2KG |
|||||
|
Weight |
14.2KG |
|||||
