TPM 120 - 120W RMS Mixer Amplifier

The TPM series amplifier Is a 2U (less than 240W) mixer amplifier featuring 70V,100V and 4-16ohm speaker outputs & 4 universal balanced XLR mic inputs with phantom power.
The amplifier rated power ranges 120W

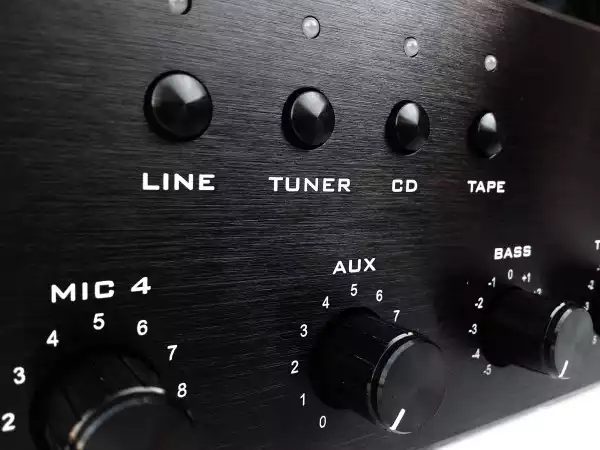

There are 4 audio source selectors on the front panel.

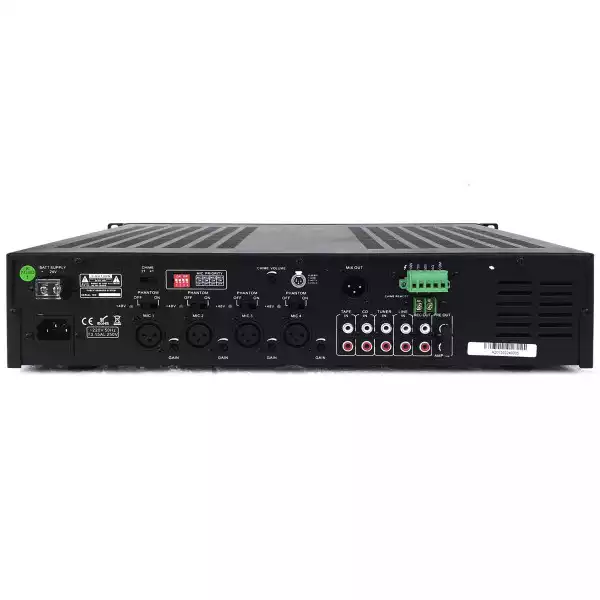

4 Aux inputs by dual RCA type are located on the rear panel.
Mc 1-4 with Vox priority selectors. The ampiHier is also built-in pre-announcement chime with volume confrol and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor like mixer, graphic equalizer.
Volume control over Mic 1-4, aux, master & overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and overloading.

Feature
• 2U (less tflan 350W) tabletop and rack mount design and 3U (500W)
• Rated power output 120W
• 4 balanced XLR microphone inputs with phanfom power and gain confrol
• 4 dual RCA line inputs
• 70V, 100V and 4-16ohm speaker terminals
• Mic 1-4 with selectable priority over other inputs
• BuiltIt-In chime, 2/4 tone selector and remote trigger
• XLR balanced line output for extra power amplifier
• REC output for tape recorder
• PRE Output and AMP input for extra signal processor
• Master, Mic 1-4, Aux volume control, treble and bass confrol
• Inditations includes power and output leveI meter
• AC 110V or 220V and DC 24V operation

Optional
• DC 24V
• Panel with/without handhold
• Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch
