TPM 60 - Public Address Mixer - 60W Power Rating

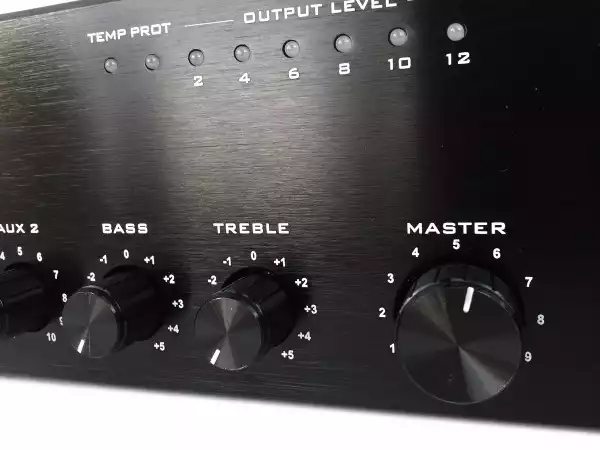

The basic public address mixer amplifier have power rating 60W.It is featured of 3 balanced miaophone inputs, 2 aux inputs and 2 EMC inputs.Priority muting is achived via EMC 1-2 for overriding other inputs except Mic 1 on front panel.Individual gain controls are provided for Mlc 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control.70V. 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.

Features• Mixer amplifier for paging and background music system• Rated power 60W• 2U rack mount (less than 350W) and 3U rack mount design• 70V, 100V and low impedance 4-16ohm speaker output• Three balanced Mic inputs• Mic 1 (phone jack) with VOX priority and VOX level on front panel• Mic 2-3 by XLR type on rear panel with phantom power• Two Aux Inputs and 2 line inputs for spare use• Two EMC priority Inputs• EMC 1 has priority over all inputs except MIC 1• Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control• Short circuit, overload and high temp protection
Optional• DC 24V available on less than 500W models• Panel wilh/wlthout handhold• Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch
