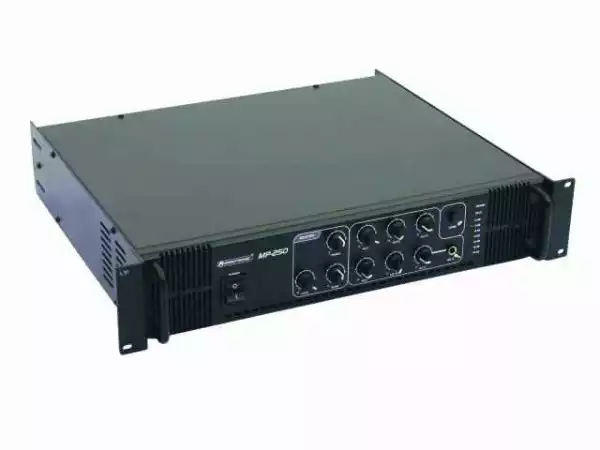

6-zone power amplifier

Comfortable control of your PA speakers via
6-zone technology
Fan-cooled

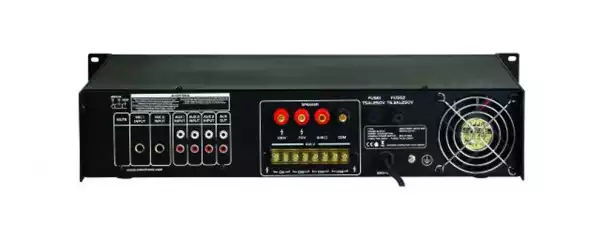

3 Mic and 3 Aux inputs
1 Line output
70 V, 100 V PA outputs
4-16 ohm output for connecting a passive
speaker system
6 zone outputs
5-step volume control for every zone
1 Mic connection on the front panel with
priority function
Treble and bass control
7-fold level indicator
Master control
19"" dimensions
Protection-circuits: over current, short circuit,
 turn-on delay

Technical specifications:

Power supply:230 V AC, 50 Hz ~
Output power:250 W RMS
Output type:70 V, 100 V or 4-16 W
Output current:
70 V3.6 A
100 V2.5 A
Mic input:5 mV, 600 Ohms
Line input:300 mV, 10 kOhms
Output-connectors:Screw connectors,
terminal block
Frequency range:80 Hz - 16 kHz
Distortion:0.5 % (1 kHz)
S/N-ratio:
Aux:85 dB
Mic:75 dB
Dimensions:483 x 385 x 92 mm
Weight:14 kg
