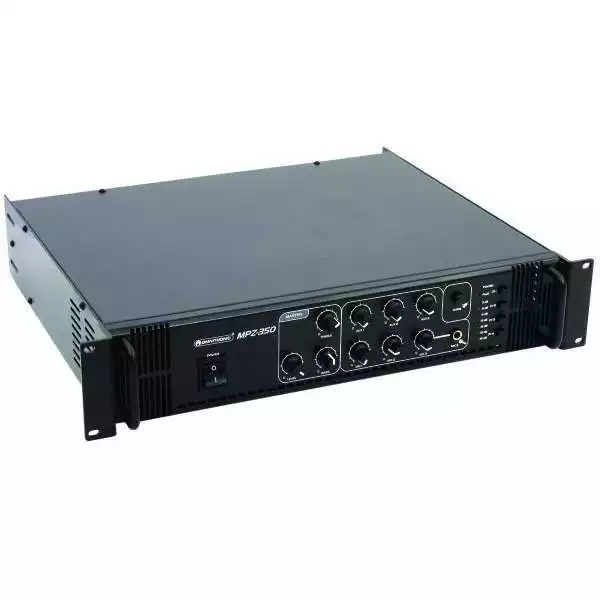

6-zone PA mono mixing amplifier

Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs, independently switchable on the front panel
Master PA output (70 V and 100 V)
Output for low-impedance speakers (4-16 ohms)
2 rear microphone inputs (6.3 mm jack, unbal.)
1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Fan-cooled
Protection circuits with LED indication: over current, short circuit, turn-on delay   ·  • Rack installation, brackets detachable








Power supply:
230 V AC, 50 Hz ~


Output power:
350 W RMS


Output type:
70 V, 100 V or 4-16 ohms


Output current:
5 A (70 V), 3.5 A (100 V)


Mic inputs:
5 mV, 600 ohms


Line inputs:
300 mV, 10 kohms


Speaker connectors:
Screw connectors, terminal block


Frequency range:
80 Hz - 16 kHz


Distortion:
0.5 % (1 kHz)


S/N ratio:
85 dB (line), 75 dB (mic)


Dimensions:
483 x 385 x 92 mm


Weight:
16 kg
