Biamp Voltera D 2400.4M
Audio DSP and amplified loudspeaker controller; 4 channels sharing 2400W with Dante and AVB.
Key Features
NEW:The ALAMOS loudspeaker profile library, with nearly 700 unique profiles covering over 200 Biamp models, streamlines commissioning when using Tesira or VenueTune software
Compact and powerful—up to 8 channels (D Series), or 4 channels (D M Series) in just one RU
Compatible with AVB, Dante, and AES67 network protocols
Accurate raised cosine EQ below 160 Hz
Group-controlled raised cosine EQ making it attractive for large systems
Power share up to +100% per channel
Lo-Z or Hi-Z per channel to support hybrid systems
High peak voltage output capability
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
| GENERAL | |
| Height | 1.7 inches (44 mm) rack rail to rear panel |
| Width | 17.5 inches (444 mm) rack rail to rear panel |
| Depth | 16.9 inches (430 mm) rack rail to rear panel |
| Weight | 17.2 lbs (7.8 kg) |
| Accessories | Rear support kit for 19-inch 1 RU mount |
| Warranty | 5 years |
| ENVIRONMENTAL | |
| Ambient Operating Temperature Range | 32-104F (0-40C) |
| Humidity | 0-95% non-condensing altitude 0 - 2000 m (0-6562 ft) |
| POWER | |
| Power |
Power per channel all channels driven:
Max power per channel using power sharing1:
|
| Power Consumption | 100-240 VAC, 50/60 Hz |
| Power Output | Total output all channels driven: 2400 W Maximum output voltage: 160 Vpk Maximum output current: 40 Apk |
| Cooling | Variable speed fans, front to back airflow |
| NETWORK | |
| Network Connection(s) | Ports: 2 1000Base-T ports Networked media formats supported: Dante, AES67 and AVB Network modes supported: Converged (all on port 2) or split (control port 1, media port 2) PoE+ support: If port 1 is connected to a PoE+ switch with a UPS, then the Voltera D will not reboot when mains power is lost Network latency AVB: 2 ms, Dante : 1 / 2 ms Sample rates supported: 96 and 48 kHz Remote interface: Tesira, VenueTune Third party interface: TTP |
| CONTROLS & INDICATORS | |
| Front Panel Indicator(s) | System status indicator: Shows if there are faults within the greater system Device status indicators: Status, activity and faults Channel status indicators: Mute, signal, limit and temp |
| AMPLIFIER | |
| Channels | 4 Channels |
| Signal Processing | Latency (analog input to output): 2.65 ms (includes look-ahead delay in zero overshoot peak limiters) Default gain (analog input to output): 29 dB Per input: Supports failover to analog sources Multilayered group control of raised cosine EQ, gain, delay (≤2 s), polarity and mute Per output: Very comprehensive processing supporting loudspeaker profiles including
|
| AUDIO | |
| THD+N | THD+N (1000 Hz, at 1 dB below max output) <0.05% THD+N (20 - 20000 Hz for 1 W) <0.05% |
| Frequency Response | +/-0.5 dB (20 - 20000 Hz, 8 ohm, unweighted) |
| Dynamic Range | 117 dB |
| Crosstalk | >70 dB |
| CERTIFIED SOLUTIONS | |
| TAA Compliant | TAA Compliant |
| NOTES | |

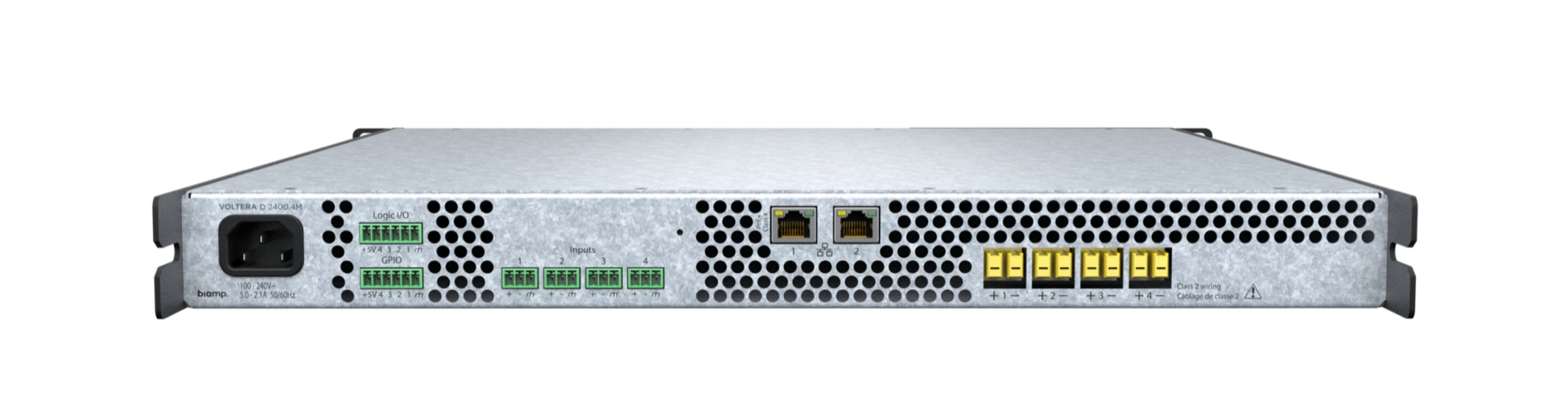

| Specification Notes | Back panel interface: Control and monitoring IO Mute all channels (input), Health (output), Sleep mode status (output), Sleep mode (input) Programmable GPIO 4 logic/voltage control pins, defined using Tesira software Analog input connectors 3-pin terminal block connectors with 0.15" (3.81 mm) pitch Output connectors 2-pin terminal block connectors rated for 41 Arms. Can take up to 8 mm2 (8.2 AWG) cables Detachable mains connector 3-pin IEC C14 inlet for C13 cables Front panel interface Tamper proof design NFC status reading Extensive status and network information can be read with a phone via NFC Locate Bi-directional locate funtionality |
