Voltage Gain at 1kHz, 8 ohm rated output:

XTi 4000: 34.2 dB

Frequency Response: +0/-1 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms.

Load Impedance: Safe with all types of loads. Rated for 2 to 8 ohms in Stereo mode, 4 to 16 ohms in Bridge-Mono mode.

Sensitivity: 1.4V

Signal to Noise Ratio (below rated 1 kHz power at 8 ohms):
100 dB (A weighted).

Damping Factor: Better than 500 from 20 Hz to 400 Hz.

Crosstalk: > 70 dB below rated power, 20 Hz to 1 kHz.

Input Stage: Input is electronically balanced and employs precision 1% resistors.

Input Impedance (nominal): 20 k ohms, balanced;10 k ohms, unbalanced.

Maximum Input Signal: +22 dBu typical.

AC Line Voltage and Frequency Configurations Available: 100V, 120V, 220-240V
50/60 Hz.

AC Line Current:

XTi 4000: 8.0A

At Idle: Draws no more than 90 watts.

Operating Temperature: 0° C to 40° C at 95% relative humidity (non-condensing).

DSP Section

EQ: 4-band paragraphic per channel, boost/cut ±12 dB.

Also adjustable high and low shelving filters.

Filters: Highpass and lowpass per channel.Butterworth

6/12/18/24 dB per octave. High and low shelving filters, one per channel.

Delay: For signal alignment of driver; 50 mS total delay.

Subharmonic Synthesizer: Adds low-frequency content.

Output Limiter: Prevents clipping.

Presets: 10 user speaker presets.

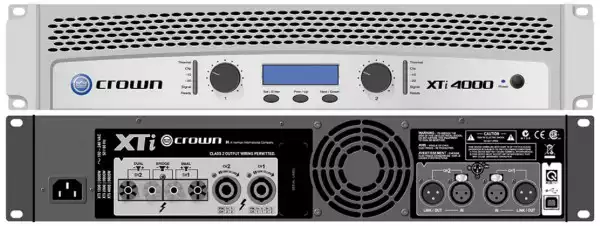

Front Panel Controls and Indicators

Level: Detented rotary level control, one per channel.

Power Switch: On/off switch applies AC power to the amplifier.

Sel/Prev/Next Buttons: Three buttons near the LCD screen are used to access menu items.

LCD Screen: Backlit liquid crystal display shows speaker presets.

Signal Indicator: Green LED, one per channel, flashes when a very low-level signal is present at input. May be used for troubleshooting cable runs.

–10 Indicator: Green LED flashes when output signal exceeds –10 dB below clip.

–20 Indicator: Green LED flashes when output signal level exceeds –20 dB below clip.

Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.

Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion.

Temp/Fault Indicator: Red LED, one per channel, illuminates under Fault or excessive temperature conditions.

Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power.

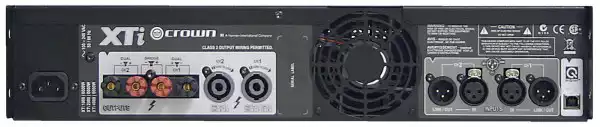

Rear Panel Controls and Connectors

AC Line Connector: NEMA 5-15P (15A).

Input Connector: XLR, one per channel.

Link/Out Connector: Loop-thru signal from input connector for linking to another amplifier, one per channel.

Output Connectors: Two Neutrik® Speakon® NL4MP (mates with NL4FC) output connectors. Channel-1 Speakon® is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon® connectors).

HiQnet USB Connector: Type B, connects to a HiQnet network.

Protection

XTi-Series amplifiers are protected against shorted, open or mismatched loads; overloaded power supplies; excessive temperature; chain destruction phenomena; excessive output current, input overload damage; and high-frequency blowups. They also protect loudspeakers from input/output DC, large or dangerous DC offsets and turn-on/turn-off transients.

Construction

Chassis: Steel.

Cooling: Proportional speed fan with front-to-rear airflow.

Dimensions: EIA Standard 19-in. rack mount width (EIA RS-310-B), 3.5 in. (8.9 cm) high and 12.25 in. (31.11 cm) deep behind mounting surface.

Net Weight:
18.5 lb (8.4 kg)

Shipping Weight:
21.5 lb (9.8 kg)
