JBSYSTEMS AMP 150.4
Garantujemo najnižu cenu!
4-channel Amplifier, 4x 150Wrms @ 4ohm
Professional 4-channel power amplifier in an extremely compact 19" 1U-housing (H: 44mm)
The high efficient class-D design guarantees high power and very low heat dissipation.
Perfect for install applications (pubs, shops, hotels, restaurants, … )

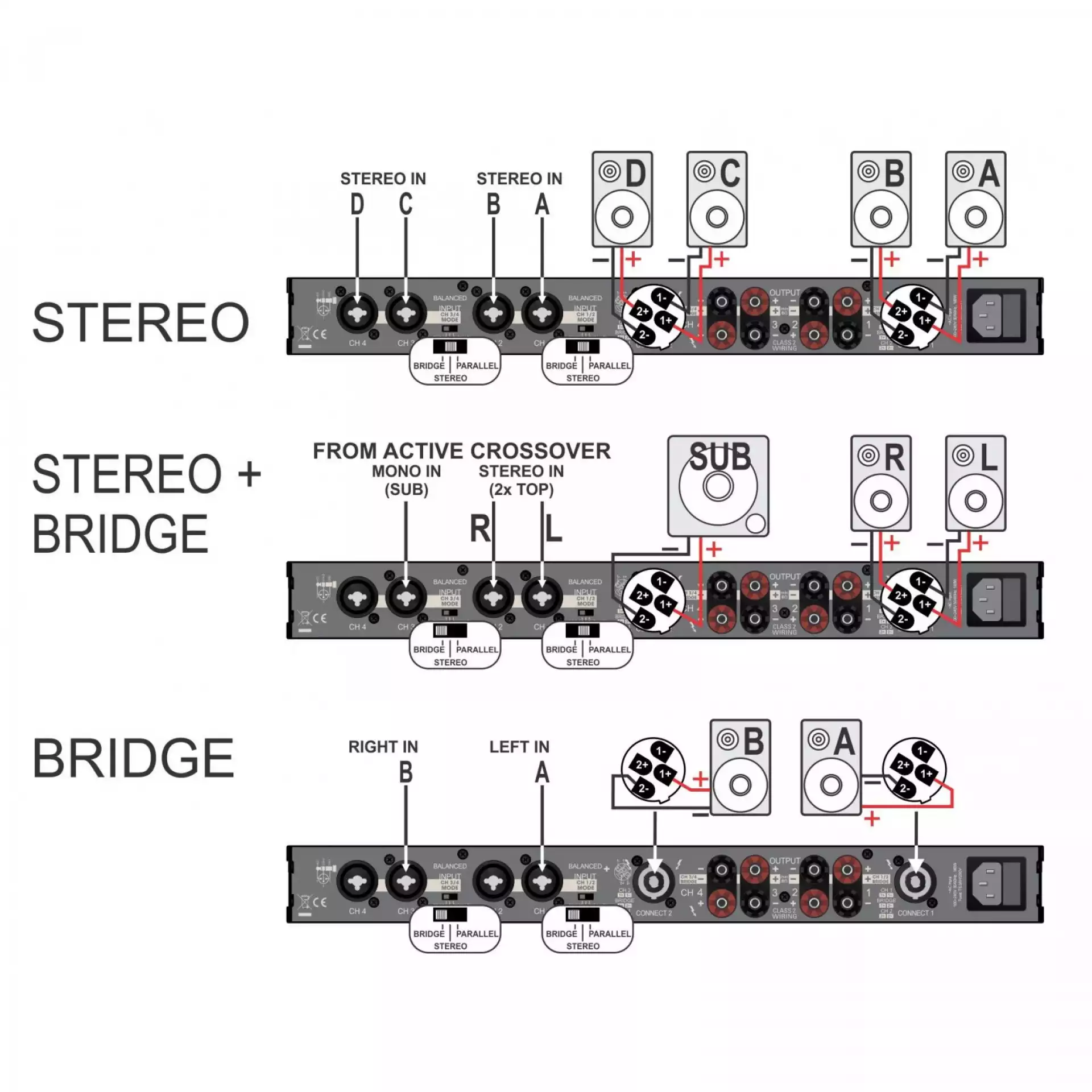

The unit houses 2 separate class-D amplifiers that can be configured independently to obtain the following combinations:
Both amps in stereo mode: 4x 150Wrms @ 4Ω (4x 80Wrms @ 8Ω)
Both amps in Bridge mode: 2x 300Wrms @ 8Ω
1amp in stereo + one amp in bridge: 2x 150Wrms @ 4Ω + 1x 300Wrms @ 8Ω
Completely silent operation: NO cooling fans!
Peak limiter prevents signal distortion
DC fault + high temperature + overload + short circuit protections
Balanced Combo (XLR + jack) inputs.

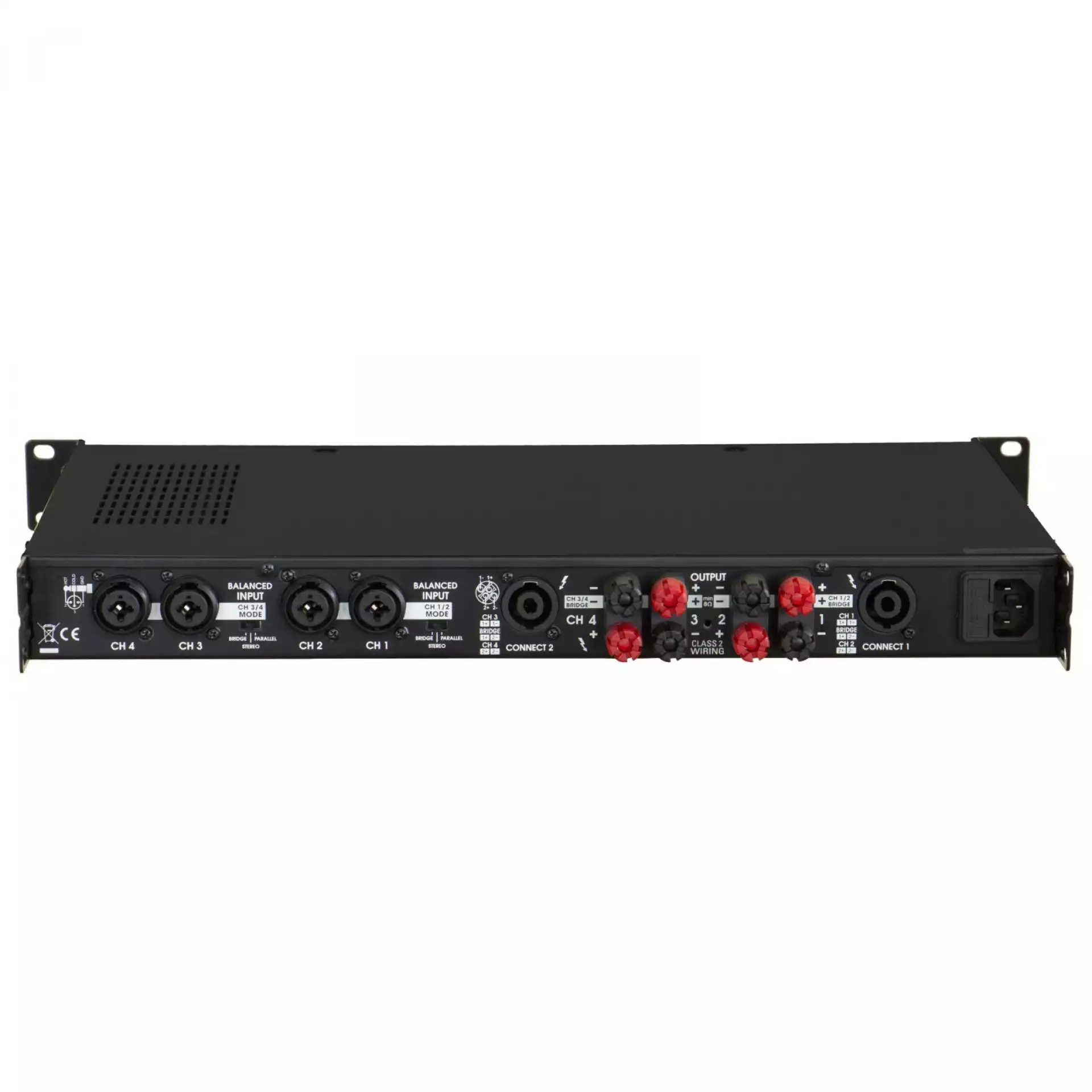

Speakon® + bind-post wire terminal outputs
General : Dimensions (cm) 48.3 x 4.4 x 33 cm
General : Weight (kg) 5.08
General : Color black
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Display none
General : Fixation 19" rack mountable
General : RU 1U
General : IP rating indoor
Audio : frequency range 20 Hz - 20000 Hz
Audio : S/N ratio (> dB) 90
Audio : max. output channels 4
Audio : Wrms 4Ω stereo, per channel 150
Audio : Wrms 8Ω stereo, per channel 80
Audio : Wrms 8Ω bridge 300
Audio : functions adjustable crossover, bridge mode, limiter
Connections : input 3 pin XLR, jack, IEC
Connections : output speakon
Brand JB SYSTEMS
EANCode 5420025602730
