The CA Series professional power amplifiers offer Martin Wisman renowned integrity and can handle exceptionally high power ratings in a compact, light weight 3RU package. The M Series amps also feature Automatic Clip Limiting to protect connected drivers;Impedance sensing to accommodate varying impedance outputs; tunnel-cooled,high efficiency heat sinks; and variable-speed DC fans to limit the operating temperature and extend amplifier life.

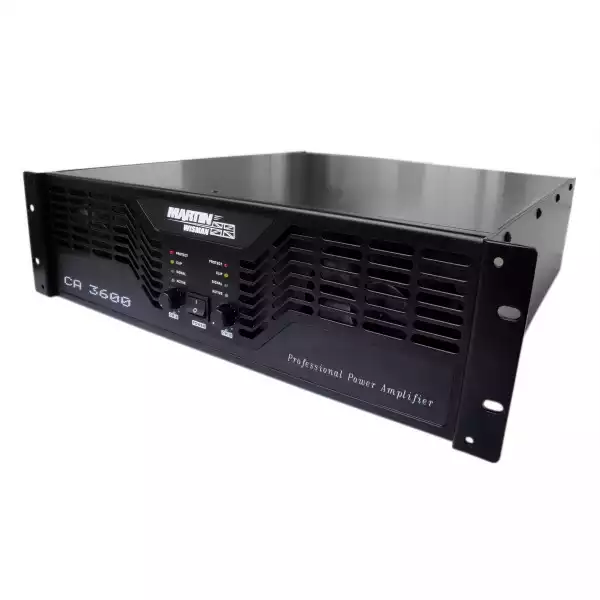

CA 3600
Professional Power Amplifier
The CA Series professional power amplifiers offer Martin Wisman renowned integrity and can handle exceptionally high power ratings in a compact, light weight 3RU package. The M Series amps also feature Automatic Clip Limiting to protect connected drivers; Impedance sensing to accommodate varying impedance outputs; tunnel-cooled,high efficiency heat sinks; and variable-speed DC fans to limit the operating temperature and extend amplifier life.
Specifications
|
Rated power bridge mode 8 Ohms |
3600Watts @ 1 kHz at <0.5% T.H.D. |
|
Rated power (2 X4 Ohms): |
1800 Watts per channel @ 1 kHz at <0.5% T.H.D. both channels driven |
|
Rated power (2 X 8 Ohms): |
1200 Watts per channel @ 1 kHz at <0.5% T.H.D.both channels driven |
|
Power bandwidth: |
20 Hz - 20kHz; +0, -0.5 dB at rated 500 Watts 8 Ohm power |
|
T.H.D.(2 X 4 Ohms): |
<0.05%@900 Watts per channel from 20 HZ to 20 kHz |
|
T.H.D.(2 X 8 Ohms): |
<0.05%@600Watts per channel from 20 HZ to 20 kHz |
|
Minimum load impedance: |
2 Ohms |
|
Maximum RMS voltage swing: |
110Volts |
|
Frequency response: |
10 Hz - 50 kHz; +0, -3 dB at 1 Watt |
|
Input CMRR: |
>-65 dB @ 1 kHz |
|
Rated power (1 X 4 Ohms): |
1980 Watts @ 1 kHz at <0.5% T.H.D. |
|
Rated power (1 X 8 Ohms): |
1300 Watts @ 1 kHz at <0.5% T.H.D. |
|
Phase response: |
+20 to -25 from 20 Hz to 20 kHz |
|
Input impedance: |
20 k Ohms, balanced; 10k Ohms, unbalanced |
|
Cooling: |
Tow temperature dependant variable speed 120mm high output DC fans |
|
Controls: |
Two front panel attenuators, rear panel mode switch and gain select switch |
|
Voltage gain: |
0.775V, 32 dB or 26 dB |
|
Crosstalk: |
>-60 dB @ 1 kHz at rated power @ 8 Ohms |
|
Hum and noise: |
>-104 dB, "A" weighted referenced to rated power @ 8 Ohms |
|
Slew rate: |
>25V/us |
|
Damping factor (8 Ohms): |
>800:1 @ 20Hz - 1 kHz |
|
Indicator LEDs: |
2 Clip,2 signal presence, 2 active status, 2Protection |
|
Protection: |
Thermal, DC, turn-on bursts, incorrect loads |
|

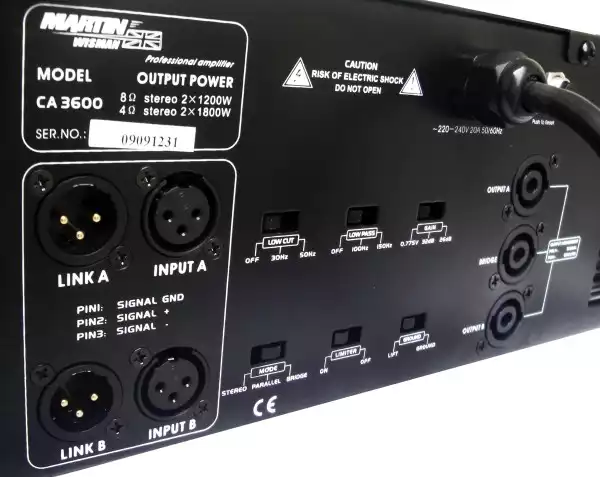

Connectors: |
XLR, Speakon and Binding Post speaker output, 240/230 Volt 20 amp IEC mains |
|
Construction: |
16 ga. Steel |
|
Dimensions: |
132mm x 483 mm x 498 mm |
|
Net weight: |
36kg |
|
Gross weight: |
39kg |
