The DTI (Dual Transformer/Isolater) from ART is a high quality, totally passive audio interface that uses a pair of high performance transformers to totally separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise.
The unit's audio transformers have an extremely flat and wide frequency response and can handle high signal levels while maintaining an isolated balanced output. This gives the DTI a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 Ω to 100k Ω.
Versatility
Useful for making a "clean" interface between a computer based audio workstation and a speaker system, isolation on long cable runs in a fixed installation, isolation of a signal source from any recording equipment, or in many cases, just a safer connection between two audio systems.
Connectivity

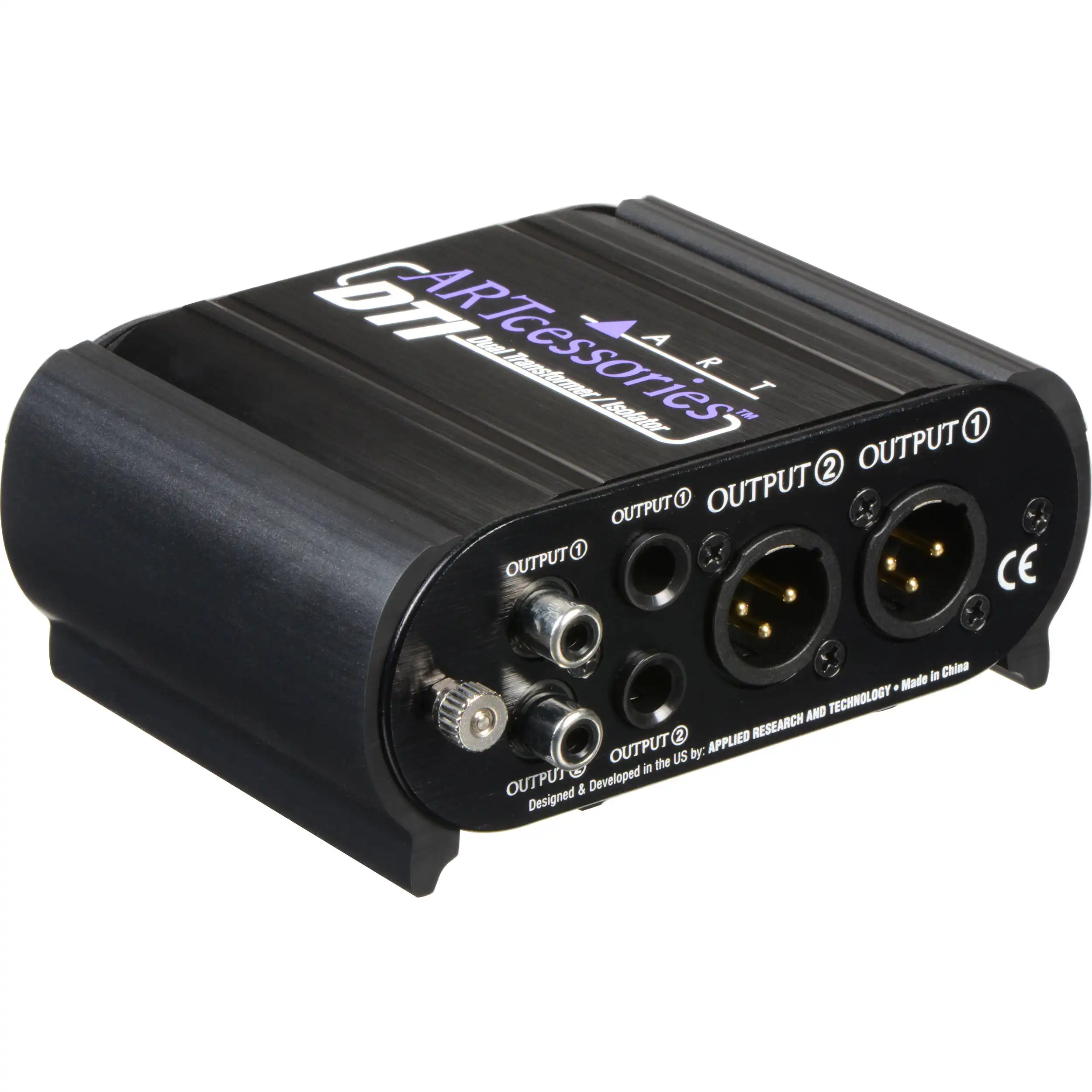

Provides XLR, 1/4" phone and RCA type phono connections on all inputs and outputs. This allows the unit to easily fit into virtually any audio system and be the clean patch point between all types of systems.
Construction
A compact black anodized, all aluminum case and passive design allow the DTI to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J. and virtually any PA application.
ART DTI Specs
Inputs 2 x XLR
2 x 1/4" TS phone
2 x RCA phono
Outputs 2 x XLR
2 x 1/4" TS phone
2 x RCA phono
Frequency Response 10Hz to 50kHz, +/-0.5dB @ +4dBu
Dimensions 4 1/4" x 3 1/2" x 1 3/4"
Weight 0.75 lbs
Specialties Passive design
