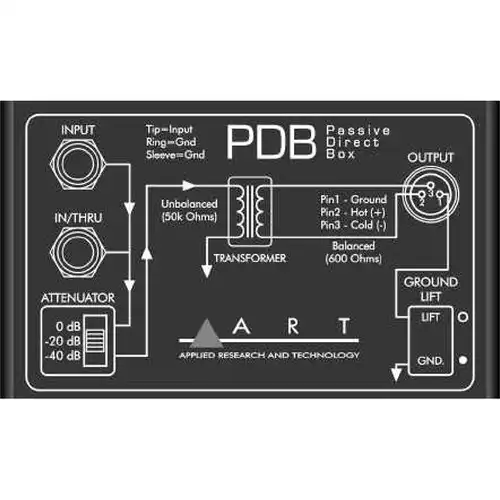

The unit features switchable input attenuation, a 50k Ω instrument input, 50k Ω parallel link jack, a 600 Ω XLR output jack and a switchable ground lift. It excels at impedance matching and improving the sound of any instrument plugged into it. Enclosed in a rugged steel chassis, it is designed and manufactured to the highest standards to provide years of quiet, reliable performance.

Electric Guitar and Bass
The high impedance signal from a guitar or bass guitar pickup is translated by the unit into a low impedance balanced signal required by mixing consoles.
Keyboards and Line Level Signals
Automatically balances and matches the line level outputs of modern electronic keyboards. If using a multiple keyboard setup and the keyboards are all plugged into a single instrument amplifier, the PDB can be used to replace individual direct boxes by simply sending the output of the instrument amplifier to the PDB and then to the console.
DJ Console Output Signals
DJ mixers often supply only an unbalanced -10dB signal. The PDB converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
Speaker Level Signals
By accepting speaker level inputs from a power amplifier's output, the DI allows post-amplifier, post EQ and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.

ART PDB Specs
Input Connections 2 x 1/4" TRS phone
Output Connectors 1 x XLR
Input Level 0, -20 and -40dB switchable input attenuation
Output Level Not specified by manufacturer
Controls Ground lift switch
Frequency Response 10Hz to 50kHz +/-0.5dB @ +4dBu
Noise Not specified by manufacturer
Power Passive
Dimensions 5 " x 3" x 2"
Weight Not specified by manufacturer
Specialties Switchable input attenuation
