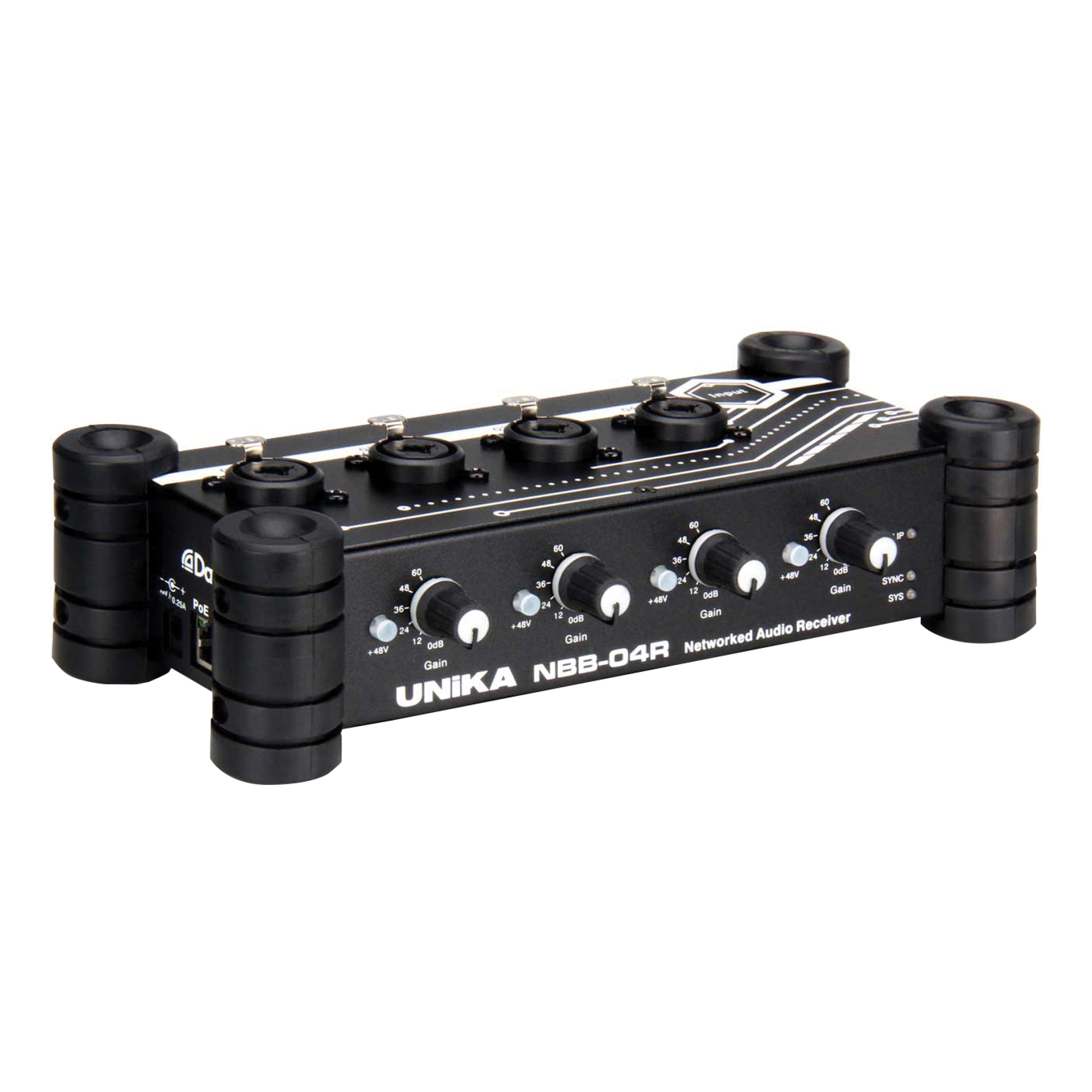

Unika NBB-04R
The NBB-04R receives 4 channels of analog audio and converts them into Dante networked audio stream which in turn can be received by other Dante-enabled devices such as digital audio console or DAW; While the NBB-04T, in contrast, transmits 4 channels of analog audio converted from Dante networked audio stream which is distributed from other Dante-enabled devices.
Channel Capacity: x4 Inputs

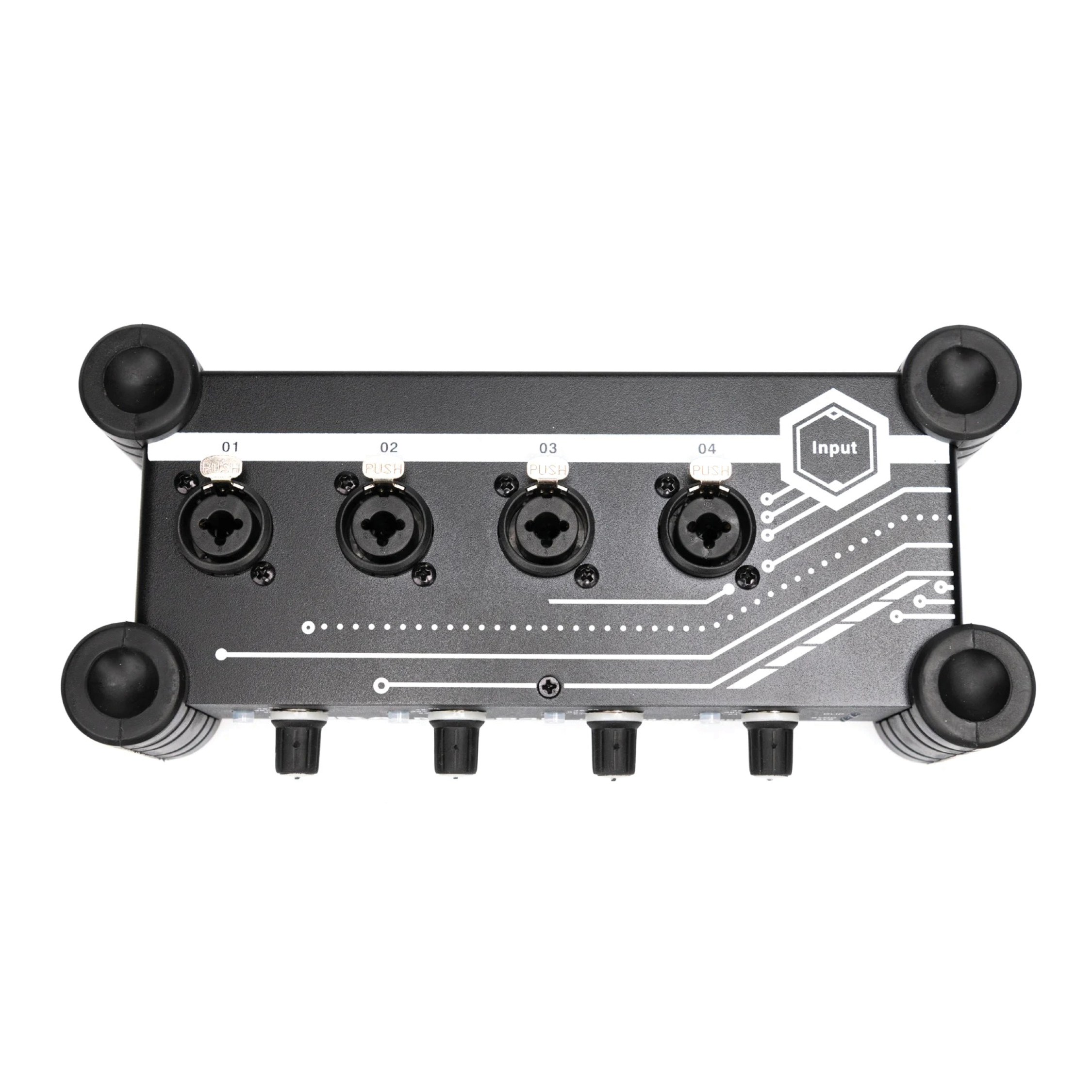

Audio Connector: XLR/TRS Combo
Level: 24dBu max.
Clip Indicator: x1
Gain/Volume Control: 60dB Rotary
+48V Phantom Power: ON/OFF per Input
Digitized Scaling: 0dBFS @24dBu
Encoding: Uncompressed 24-bit PCM
Sample Rate: 44.1KHz / 48KHz / 96KHz
Ethernet: x2 Gigabit RJ45 Ports
Networking Mode: Switch Mode (a.k.a. Daisy-chain Mode)
Node to Node Distance: 100m with Cat.5e Cable
Audio Latency: < 2ms typical
Audio Flows: x2(unicast+multicast)
Frequency Response: 20Hz ~ 20KHz ±0.5dB
Signal to Noise Ratio: > 100dB @0dBFS
THD + Noise: < 0.002% @-10dBFS
Dynamic Range: > 100dB
Crosstalk: < -100dB @10KHz
Power by Adapter: 48VDC, 0.25A (rated)
Power by PoE: 55VDC, 0.25A (rated)
Power Consumption: < 6Watts
Operation Temperature: 0 ~ 45℃
Operation Rel. Humidity: 0 ~ 90%

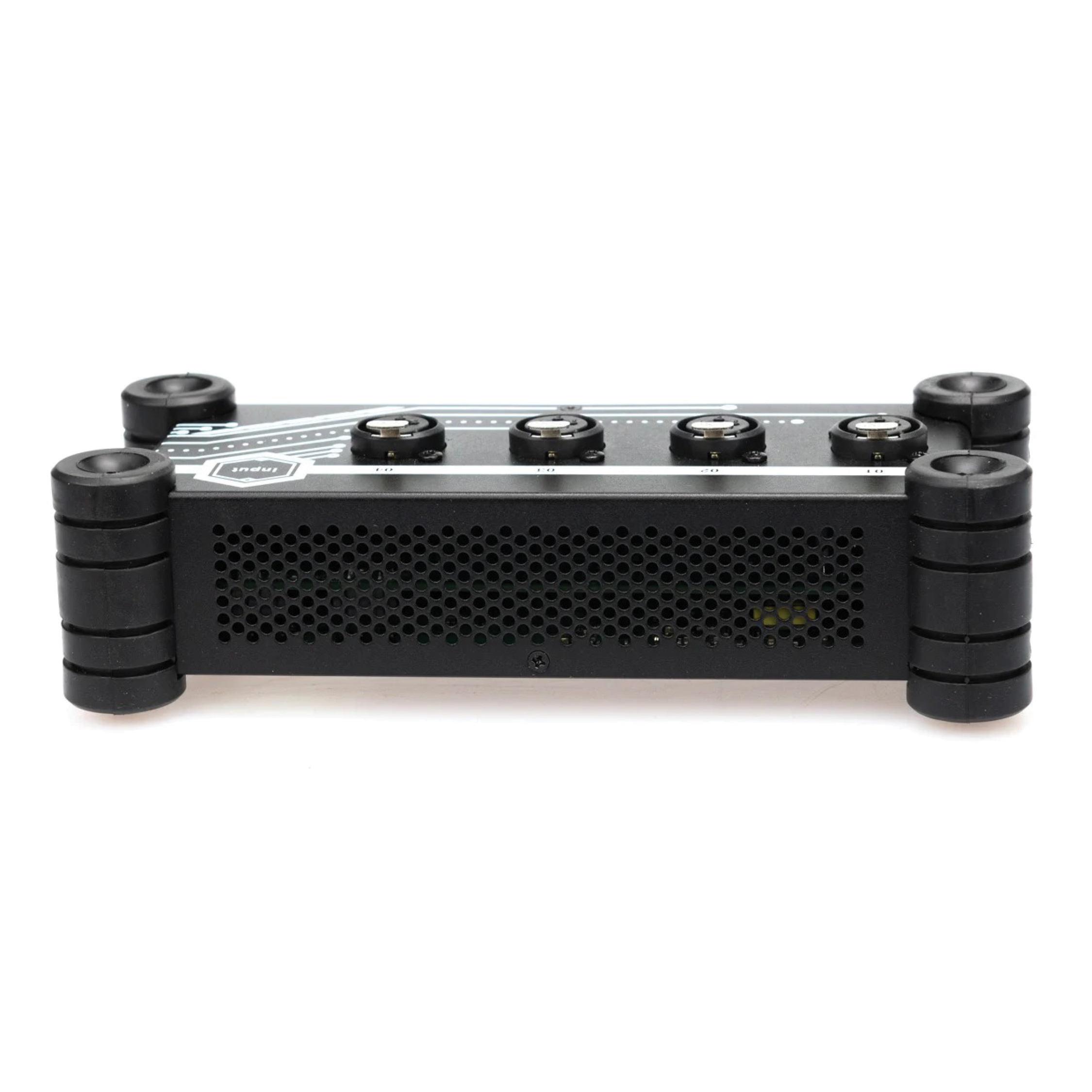

Construction: Metal Chassis with Shock Dampers
Dimensions (HxWxD): 67 x 237 x 114mm
Weight: 900g
