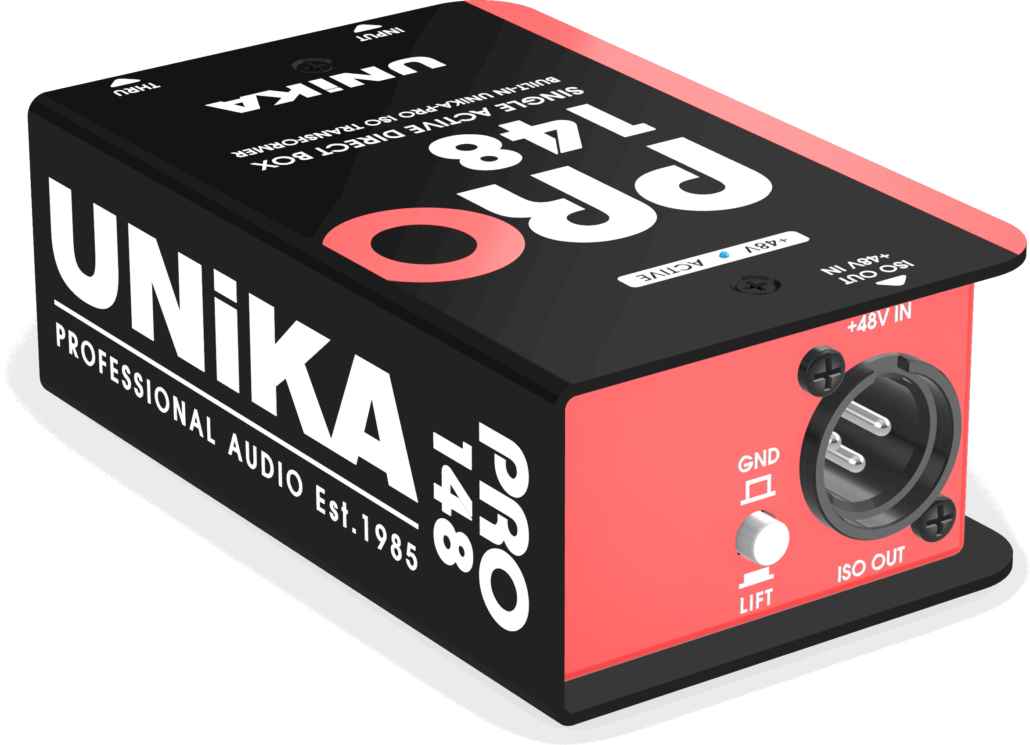

Unika Pro 148
PRO 148 is an active DI specially developed by UNiKA for electric guitar and electric bass. It is equipped with a 260KΩ over-impedance input terminal and a special isolation transformer, which can provide very rich harmonic and overtones for musical instruments.
| Circuit principle | Active low-noise op-amp with Transformer balance output | ||
| Input connector | 1 x Combo | ||
| Thru connector | 1 x TRS | ||
| Input pad switch/indicator | 0/-20dB push button with LED | ||
| Power supply | +48V Phantom power through output connector with LED indicator on top cover | ||
| Output connector | 1 x Male XLR through ISO Transformer | ||
| Output GND/LIFT switch | Push button | ||
| Input impedance | 260KΩ / 0dB, 50KΩ/-20dB | ||
| Output impedance | 50Ω | ||
| Max. input level before clipping | +10dB | ||
| Max Output level | +10dB | ||
| Frequency response | 20Hz-20KHz, +0.3/+0.6dB | ||
| S/N ratio @20Hz~20KHz un-weight | >95dB | ||
| T.H.D. @1KHz 0dBV output | <0.02% | ||
| Transformer Ratio | 1:1+1:1 | ||
| Chassis | 1.6mm/1.2mm steel cabinet and chassis | ||
| Surface finished | Durable complex painting | ||
| Dimension (W x D x H) | 78 x 124 x 46 mm | ||
| Weight | 0.56Kg | ||
| Shipping weight | 0.59kg | ||
| Packing per carton | 20pcs/12.40Kgs | ||
| Shipping dimension per carton | 305 x 283 x 195mm | ||
Power by external +48V phantom power
Built-in UNiKA-PROTM EI30A10E isolation transformer
Use British OEP PT-4 1:1 audio pulse transformer in phantom power circuit

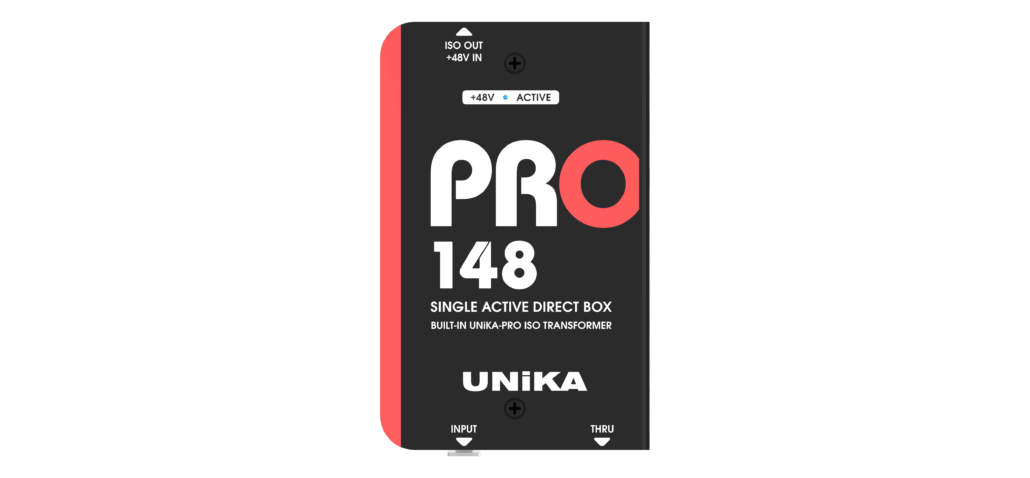

+48V status indicator on the upper cover
The input socket uses Combo jack
Use TRS jack as through out terminal
At 0dB input, the set load impedance is 260KΩ, which can clearly show the high frequency overtones, harmonic and graininess of electric guitars or electric bass
50Ω ultra-low impedance output, suitable for various types of mixers and pre-amp equipment
There is 0dB/-20dB input signal attenuation switch with status indicator

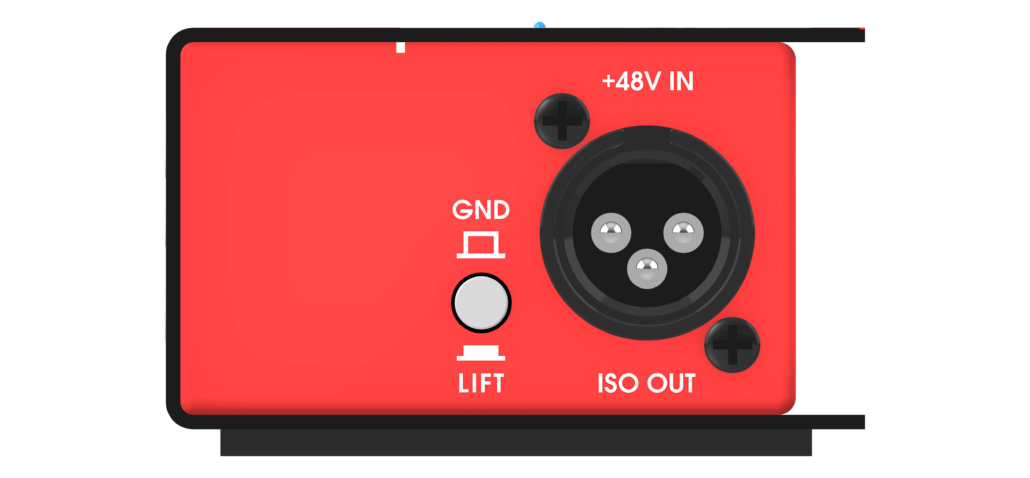

The output is equipped with a GND/LIFT switch
PRO 148 is an active single-channel DI box. Unlike traditional DI, PRO 148 uses +48V phantom power instead of the traditional 9V dry cell battery, so users can use it on the mixer or external phantom power supply. Power is supplied to PRO 148, the power supply circuit and the output signal line are shared, and no additional power cord is required. The +48V indicator is set on the upper cover. The +48V circuit specially selects the British OEP PT-4 pulse transformer.
PRO 148 has a built-in UNiKA-PROTM EI30A10E 1+1:1+1 isolation transformer, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary leakage caused by radio frequency interference, ground interference and potential difference. PRO 148 is especially suitable for electronic musical instruments, recording studios and fixed installation projects by using mixers.

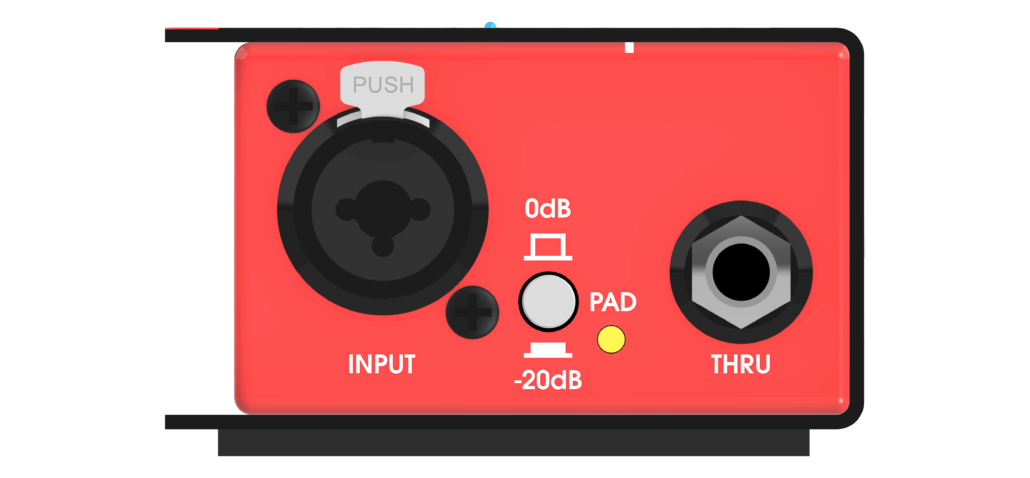

The PRO 148 uses a balanced/unbalanced combo socket on the input, and a TRS through out is convenient for musician to pass the direct signal to the instrument amplifier. In addition, it is equipped with a 0/-20dB attenuation switch and LED indicator, which is suitable for various types of audio signals with high and low impedance. The output terminal is also equipped with a GND/LIFT button to quickly eliminate ground noise.
