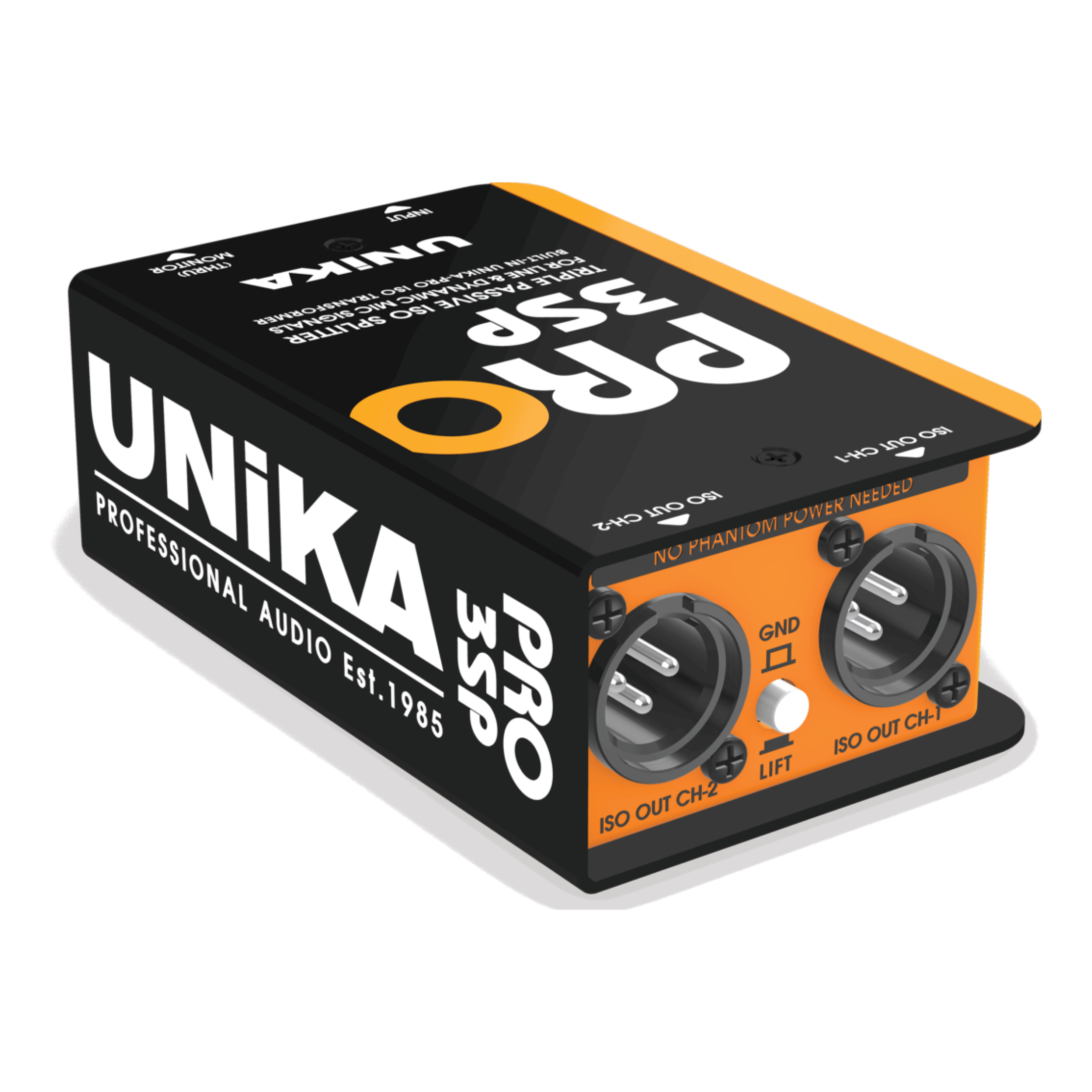

Unika Pro 3SP
The PRO 3SP isolated signal splitter is especially suitalbe for distributing LINE signals to 3 different receiving ends, two of which are equipped with isolaton transformers to prevent the potential difference caused by the signals of different power sources from causing leakage and burning the device. Another output without an isolation transformer is suitable for near-end devices.
Circuit principle: Passive/Transformer balance output

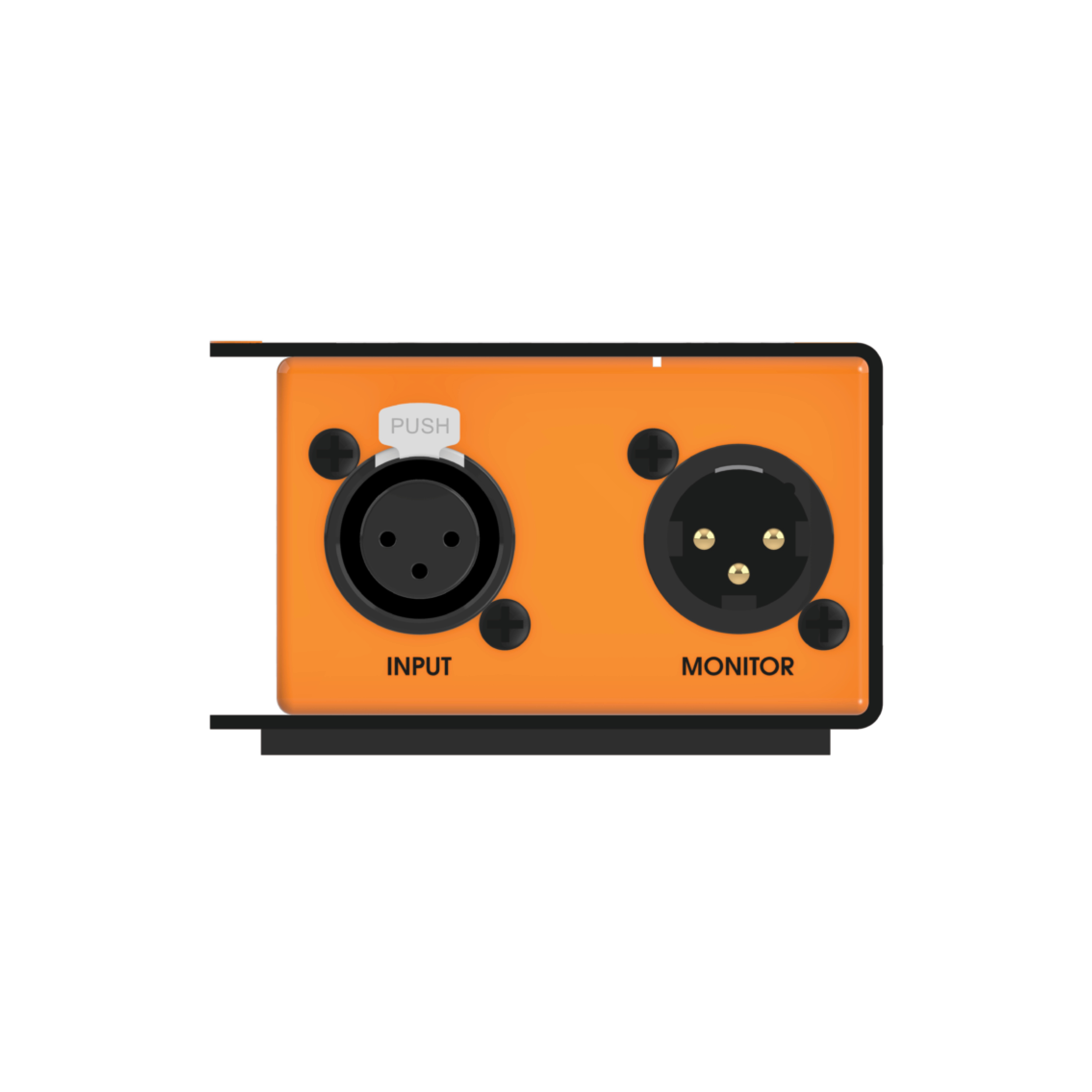

Input connector: 1 x Female XLR
Monitor out connector: 1 x Male XLR without ISO Transformer
Input impedance: 4.7KΩ
Output impedance: 50Ω
Max. input level before clipping: +22dB
Max Output level: +22dB

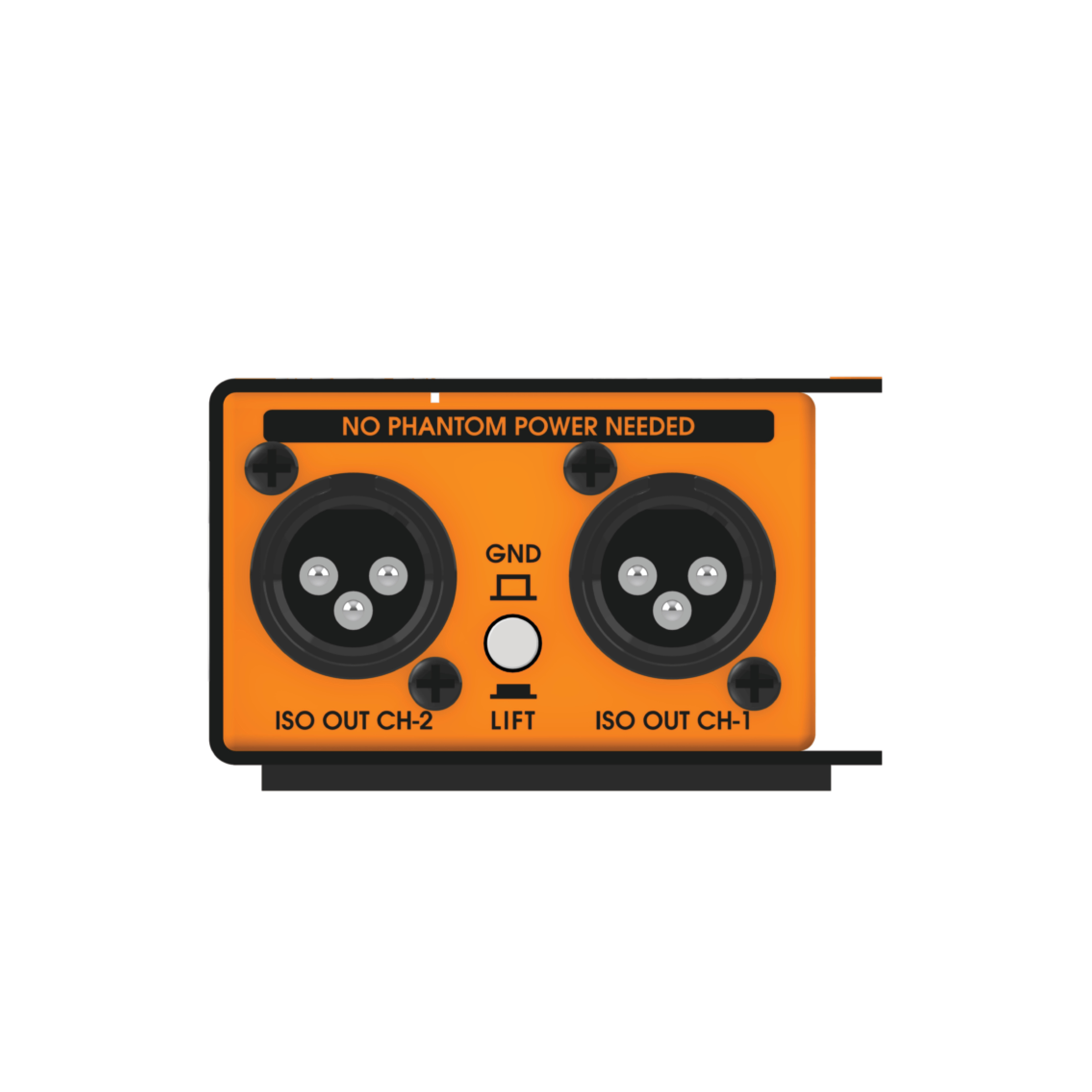

Output connector: 2 x Male XLR through ISO Transformer
Output GND/LIFT switch: Shared push button
Frequency response: 20Hz-20KHz, -0.3/+0.1dB
S/N ratio @20Hz~20KHz un-weight: >120dB
T.H.D. @1KHz 0dBV output: <0.02%
Transformer Ratio: 1.25:1
Chassis: 1.6mm/1.2mm steel cabinet and chassis
Surface finished: Durable complex painting
Dimension (W x D x H): 78 x 124 x 46 mm
Weight: 0.62Kg
Shipping weight: 0.65kg
Packing per carton: 20pcs/13.60Kgs
Shipping dimension per carton: 305 x 283 x 195mm
