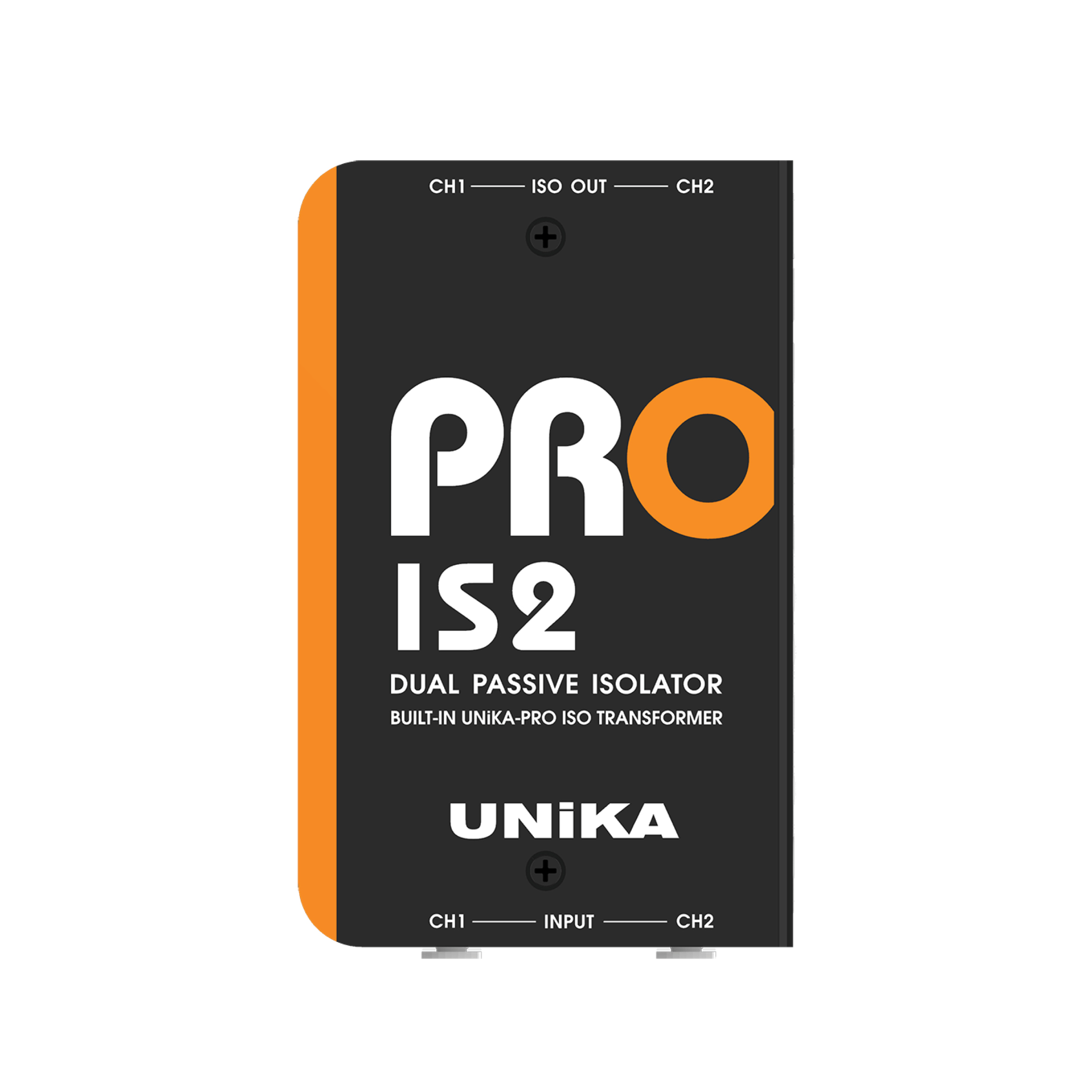

Unika Pro IS2
PRO IS2 is a 2-in/2-out signal isolator especially suitable for balanced signal connection of two systems with different power sources in order to prevent leakage and burn out of equipment due to potential differences.
Circuit principle: Passive/Transformer balance output

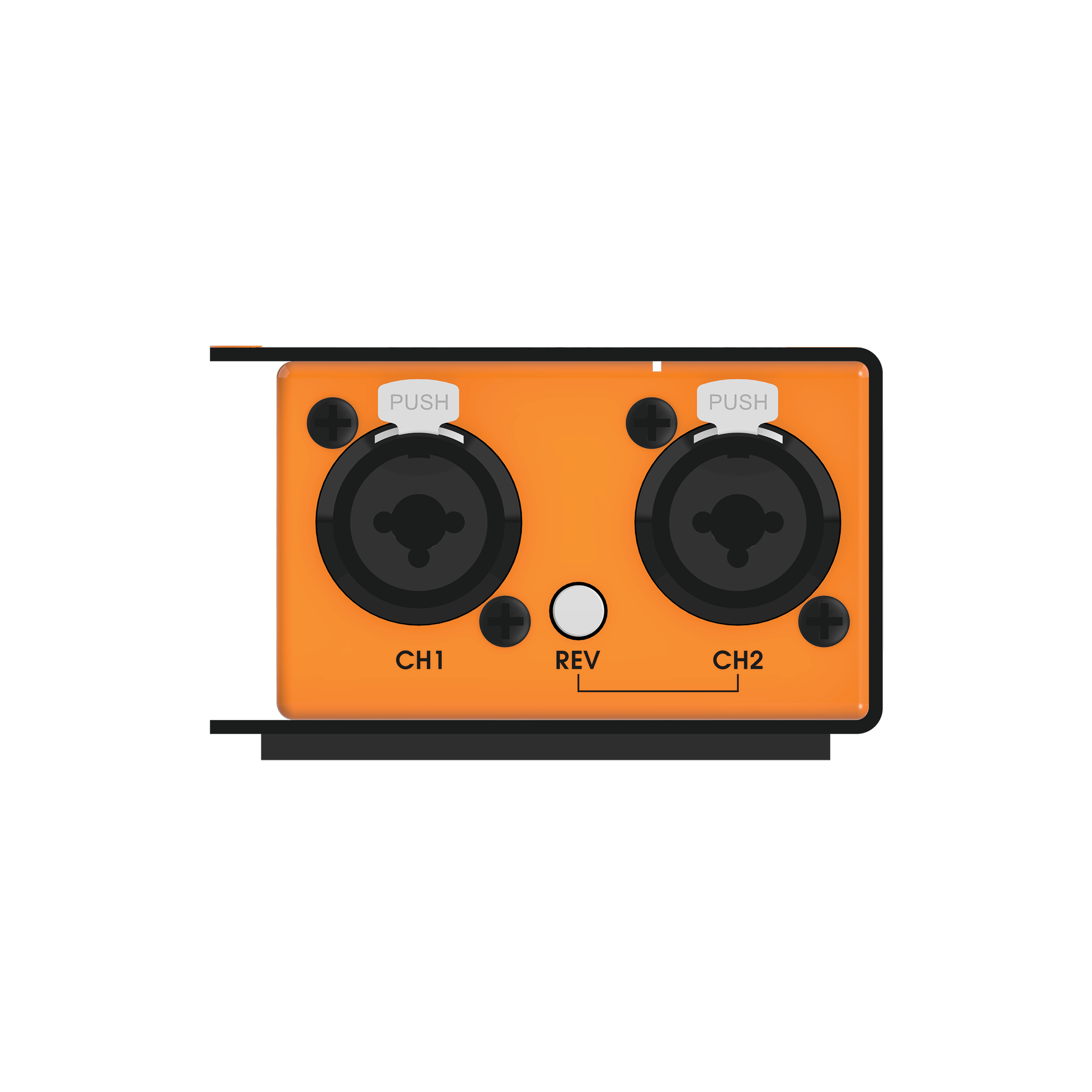

Input connector: 2 x Combi jacks
Monitor out connector: N/A
Input impedance: 4.7KΩ balance/10KΩ unbalance
Output impedance: 600Ω
Max. input level before clipping: +22dB
Max Output level: +22dB

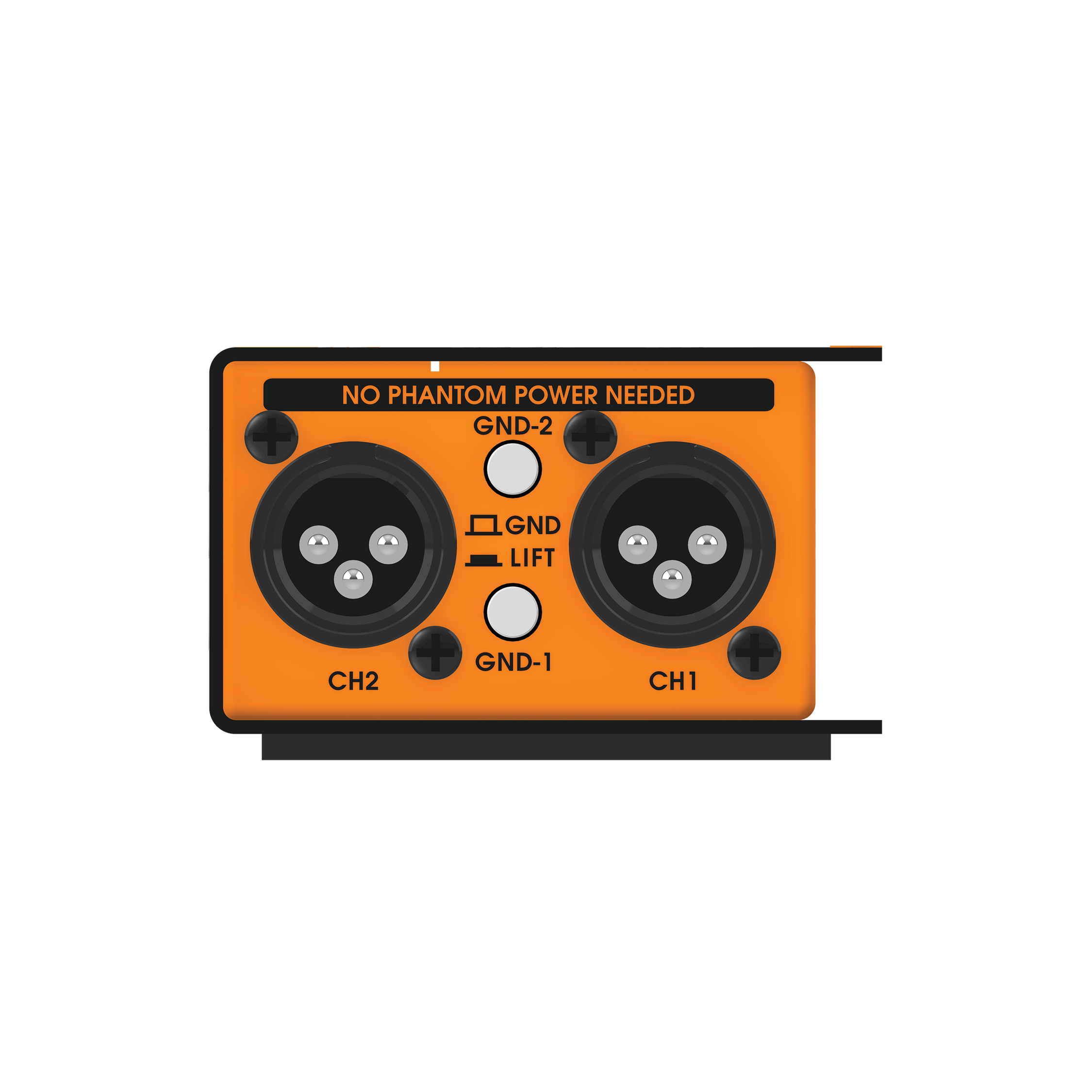

Output connector: 2 x Male XLR through ISO Transformer
Output GND/LIFT switch: Independent push button for each channel
Frequency response: 20Hz-20KHz, -0.3/+0.1dB
S/N ratio @20Hz~20KHz un-weight: >120dB
T.H.D. @1KHz 0dBV output: <0.02%
Transformer Ratio: 1.25:1
Chassis: 1.6mm/1.2mm steel cabinet and chassis
Surface finished: Durable complex painting
Dimension (W x D x H): 78 x 124 x 46 mm
Weight: 0.62Kg
Shipping weight: 0.65kg
Packing per carton: 20pcs/13.60Kgs
Shipping dimension per carton: 305 x 283 x 195mm
