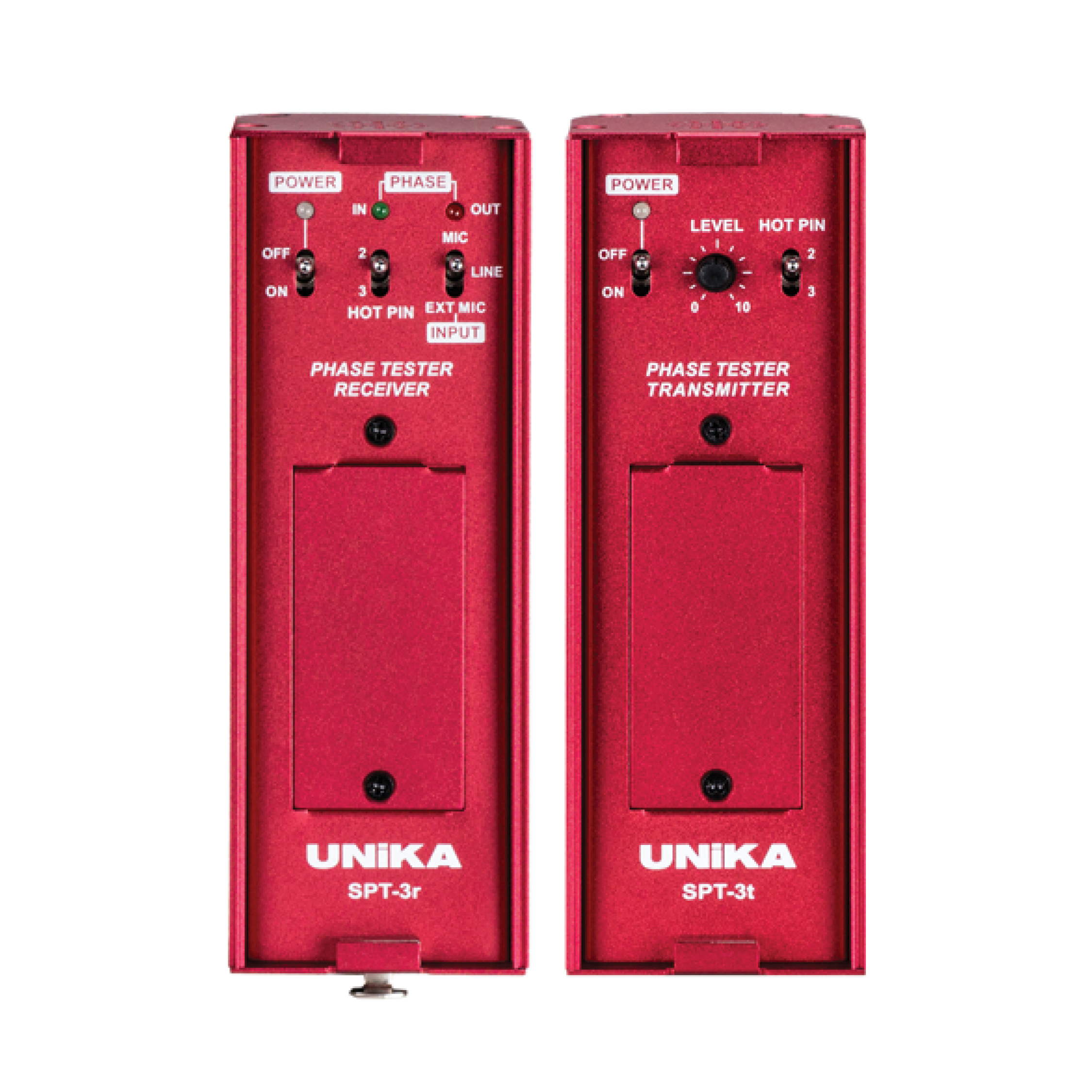

Unika SPT-3rt
SPT-3rt is the best tools of UNiKA Stage Series. This tool is suitable for any speaker manufacturer, touring and fixed installation applications. It can be used for testing phase either speaker or balance cable. An external microphone input socket can be connected external dynamic microphone to test the speakers that have been hung up. By using neodymium magnet to combine transmitter and receiver units for easy carrying.
TRANSMITTER
Signal type: Pulse tone from buzzer
Frequency spectrum, electrical: 1Hz to 20KHz
Frequency spectrum, acoustic: 200Hz to 5KHz
Output level, electrical: 0 to 1V (Acoustic level is fixed)
Output load impedance: >1KΩ
Output source impedance: 1KΩ
Power supply: 9V PP3 Alkaline battery (approx. 50 hours)
Power consumption: 10mA
RECEIVER
Frequency spectrum, electrical: 1Hz to 20KHz
Frequency spectrum, acoustic: 10Hz to 1KHz
Input impedance (Mic): 1KΩ
Input impedance (Line): 10KΩ
Input level (Mic): 10mV – 1V
Input level (Line): 0.5V to 50V
Output level: 0V to 1V
Power supply: 9V PP3 Alkaline battery (approx. 50 hours)
Power consumption: 10mA
PHYSICAL CHARACTERISTICS (whole set)
Dimensions/Shipping dimensions (W x D x H): 120 X 95 X 56 mm
20pcs packs dimensions (W x D x H): 245 X 195 X 117 mm
Weight/Shipping weight: 0.4 Kg / 0.45kg
20pcs packs shipping weight: 10.0 Kg
Operating temperature: 0°~50°C
Storage temperature: -30°~+75°C
