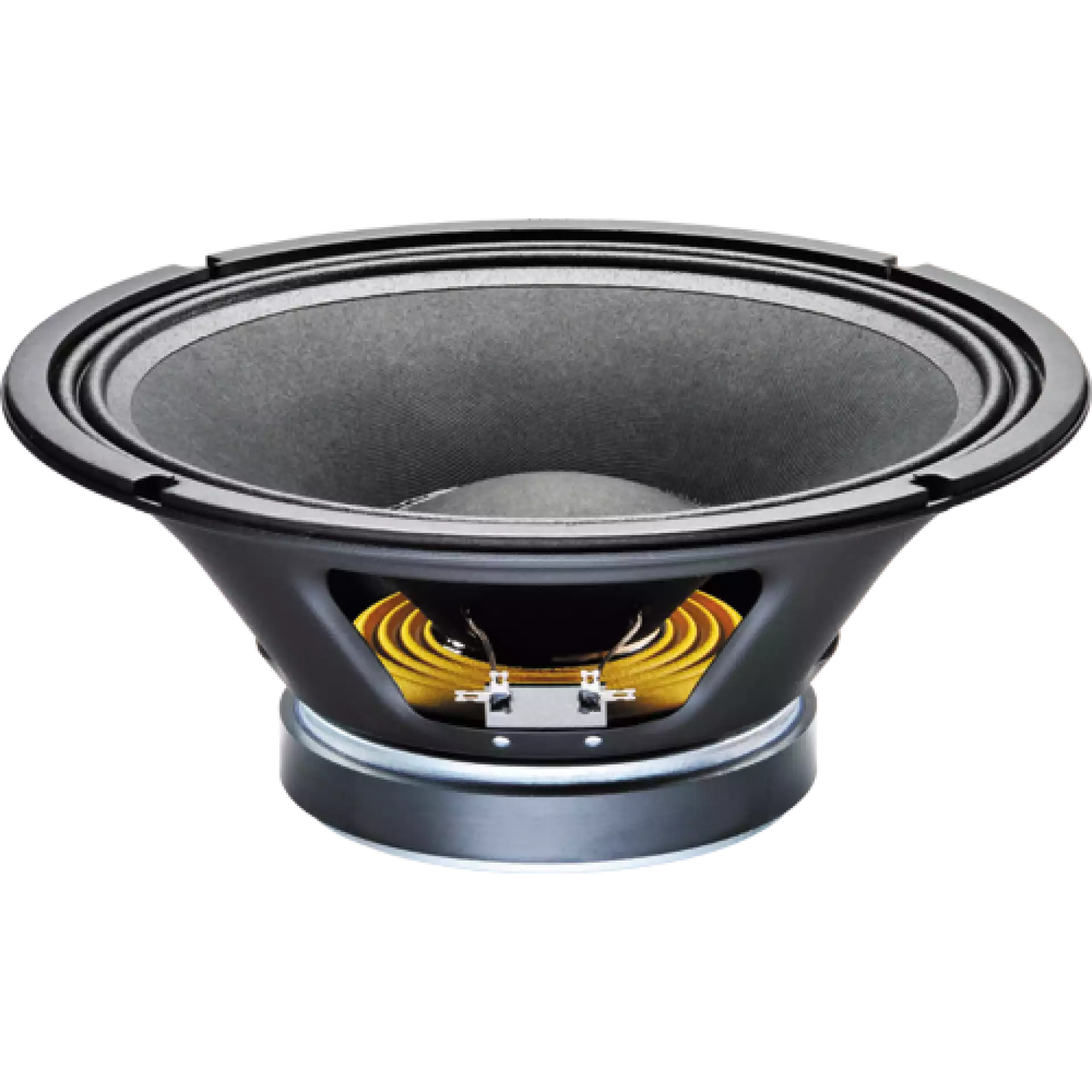

CELESTION TF 1225E - Zvučnik
Šifra: 2299
Na stanju
13.080,00 rsd
10.900,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Ugrinovački Put 10n, Zemun
- Svetogorska 9, Beograd
- Centralni magacin
- 12" mid/bass driver with extended low frequency response
Frequency Response and Impedance Curves
General specifications
| Nominal diameter (mm/in) | 305/12 |
| Power Rating (AES, W rms) | 300 |
| Nominal impedance (?) | 8 |
| Voice coil diameter (mm/in) | 63.5/2.5 |
| Magnet type | Ceramic |
| Magnet weight (kg/oz) | 1.4/50 |
| Chassis type | Pressed steel |
| Sensitivity (dB) | 96 |
| Frequency range (Hz) | 50-3000 |
| Coil material | Edgewound copper |
| Former material | Edgewound copper |
| Cone material | Kevlar loaded paper |
| Surround material | Cloth-sealed |
| Suspension | Single |
| Xmax (mm/in) | 3.3/0.13 |
| Gap depth (mm/in) | 8.0/0.31 |
| Voice coil winding width (mm/in) | 14.5/0.57 |
Small Signal Parameters
| Sd (m2/in2) | 0.053/82.29 |
| D (m/in) | 0.26/10.24 |
| Fs (Hz) | 61 |
| Mmt (g/oz) | 53.92/1.90 |
| Mmd (g/oz) | 47.01/1.66 |
| Qms | 5.19 |
| Qes | 0.45 |
| Qts | 0.41 |
| Re (?) | 6.64 |
| Vas (lt/ft3) | 50.8/1.80 |
| BI (Tm) | 17.51 |
| Cms (mm/N) | 0.13 |
| Rms (kg/s) | 3.97 |
Mounting Information
| Overall diameter (mm/in) | 309/12.17 |
| Overall depth (mm/in) | 139/5.47 |
| Cut-out diameter (mm/in) | 283/11.14 |
| Mounting slot dimensions (mm/in) | Ø 7.9/0.31 |
| Number of mounting slots | 4 |
| Mounting slot PCD range (mm/in) | 297/11.69 |
| Unit weight (kg/lb) | 4.4/9.7 |
Packed Dimensions and Weight
| Single pack size W x D x H (mm/in) | 330 x 330 x 150/13.0 x 13.0 x 5.9 |
| Single pack weight (kg/lb) | 3/6.6 |
| Multipack (60) size W x D x H (mm/in) | 1080 x 980 x 880/42.5 x 38.6 x 34.6 |
| Multipack (60) weight (kg/lb) | 190/419 |
