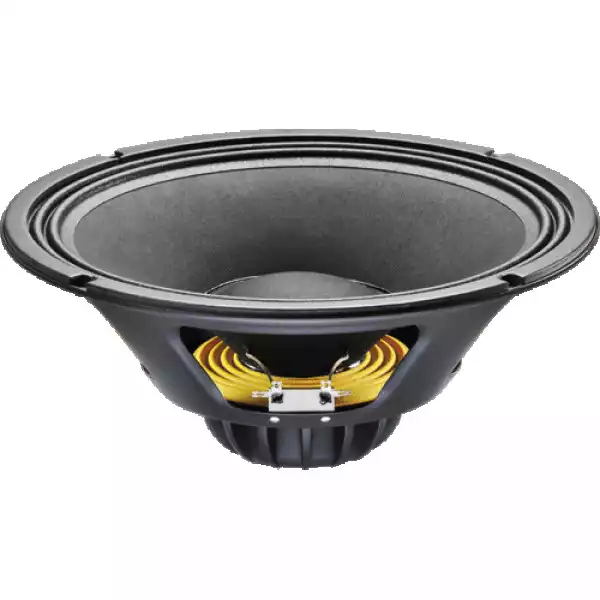

CELESTION TN1225 8ohm - Zvučnik

Šifra: 13285
Na stanju
Regularna cena:
13.800,00 rsd
9.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
11.880,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 1.920,00 rsd
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Količina

Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Svetogorska 9, Beograd
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

Compact, high flux, Dual Magnet Motor design
Vented cast aluminium heatsink

Frequency Response and Impedance Curves

Product Graph

Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous Power Rating is defined as 3dB greater than the AES rating
Measured on axis at 1W, 1m in 2Π anechoic environment.
Xmax derived from: (voice coil winding width-gap depth)/2.
Small signal parameters measured after unit subjected to pre-conditioning signal.

Nominal diameter
305mm/12in
Power rating1
250Wrms
Continuous power rating2
500W
Sensitivity2
99dB
EIA power rating3
400W
Nominal impedance
Frequency range
50-4,000Hz
Voice coil diameter
64mm/2.5in
Chassis type
Pressed steel
Magnet type
Neodymium
Coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Xmax3
2.5mm/0.099in
Gap depth
8mm/0.32in
Voice coil winding width
13mm/0.51in

Small Signal Parameters4

D
0.26m/10.24in
Fs
61.4Hz
Mms
42.12g/1.49oz
Qms
3.118
Qes
0.339
Mmd
44.23g/1.74oz
Qts
0.306
Re
5.2Ω
Vas
63.69lt/2.25ft3
BI
15.79Tm
Cms
0.16mm/N
Rms
5.21kg/s
Le (at 1kHz)
0.65mH

Mounting Information

Overall diameter
309mm/12.17in
Overall depth
132mm/5.20in
Cut-out diameter
283mm/11.14in
Mounting slot dimensions
Ø7.9mm/0.31in
Number of mounting slots
4
Mounting PCD range
297mm/11.69in
Unit weight
2.0kg/4.4lb

Packed Dimensions & Weight

Single pack size W x D x H
330mm x 330mm x 150mm
/13.0in x 13.0in x 5.9in
Single pack weight
2.4kg/5.3lb
Multi pack size W x D x H
1008mmx980mmx860mm
/39.7in x 38.6in x 33.9in
Multi pack weight
150kg/330lb
