The 12MB600 is a high sensitivity (101dB 1W/1m) midbass driver with high power handling capabilities. It can be used as either a bass/mid driver in compact 2-way reflex enclosures or as a direct radiating or horn loaded, dedicated midrange driver, in multi-way touring and fixed installation concert and arena systems. The curvilinear paper cone is made with a special high strength wood pulp designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by a multiroll suspension formed from a linen-like material which is more resistant to aging and fatigue than traditional materials. The 75 mm aluminum wire voice coil employs the Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. Voice coil cooling has been achieved by incorporating airways between the chassis back plate and the top plate of the magnet which allow heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket. The magnetic structure has been optimized using FEACAD resource which has maximized the flux density in the voice coil gap.The ability to perform properly under inclement weather conditions is a feature in Eighteen Sound’s philosophy. Hence, an exclusive treatment is applied to the cone giving it water repellent properties. In addition, another special treatment is applied to the top and back plates making the transducer far more resistant to the corrosive effects of salts and oxidization.
- 101 dB SPL 1W / 1m average sensitivity
- 75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
- 450 W AES power handling
- Weather protected cone and plates for outdoor usage
- Excellent transient response
- Improved heat dissipation via unique basket design
- Ideal for compact two way and multiway systems
The 12MB600 is a high sensitivity (101dB 1W/1m) midbass driver with high power handling capabilities. It can be used as either a bass/mid driver in compact 2-way reflex enclosures or as a direct radiating or horn loaded, dedicated midrange driver, in multi-way touring and fixed installation concert and arena systems.
The curvilinear paper cone is made with a special high strength wood pulp designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by a multiroll suspension formed from a linen-like material which is more resistant to aging and fatigue than traditional materials.
The 75 mm aluminum wire voice coil employs the Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.
Voice coil cooling has been achieved by incorporating airways between the chassis back plate and the top plate of the magnet which allow heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket.
The magnetic structure has been optimized using FEACAD resource which has maximized the flux density in the voice coil gap.
The ability to perform properly under inclement weather conditions is a feature in Eighteen Sound’s philosophy. Hence, an exclusive treatment is applied to the cone giving it water repellent properties. In addition, another special treatment is applied to the top and back plates making the transducer far more resistant to the corrosive effects of salts and oxidization.
| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 300 mm (12 in) |
| Rated Impedance | 8 Ohm |
| AES Power | 450 W |
| Program Power | 600 W |
| Peak Power | 1200 W |
| Sensitivity | 101 dB |
| Frequency Range | 58 ÷ 5000 Hz |
| Power Compression @-10dB | 0,5 dB |
| Power Compression @-3dB | 1,6 dB |
| Power Compression @Full Power | 3,0 dB |
| Max Recomm. Frequency | 2200 Hz |
| Recomm. Enclosure Volume | 30 ÷ 80 lt. (1,06 ÷ 2,83 cuft) |
| Minimum Impedance | 6,5 Ohm at 25°C |
| Max Peak To Peak Excursion | 22 mm (0,87 in) |
| Voice Coil Diameter | 75 mm (2,95 in) |
| Voice Coil Winding Material | aluminum |
| Suspension | M-roll, Polycotton |
| Cone | Curvilinear, Paper |
| THIELE SMALL PARAMETERS | |
| Fs | 44 Hz |
| Re | 5 Ohm |
| Sd | 0,0531 sq.mt. (82,31 sq.in.) |
| Qms | 3,9 |
| Qes | 0,19 |
| Qts | 0,18 |
| Vas | 115 lt. (4,06 cuft) |
| Mms | 43 gr. (0,09 lb) |
| BL | 18 Tm |
| Linear Mathematical Xmax | ± 4,5 mm (± 0,18 in) |
| Le (1kHz) | 1,32 mH |
| Ref. Efficiency 1W@1m (half space) | 99,2 dB |

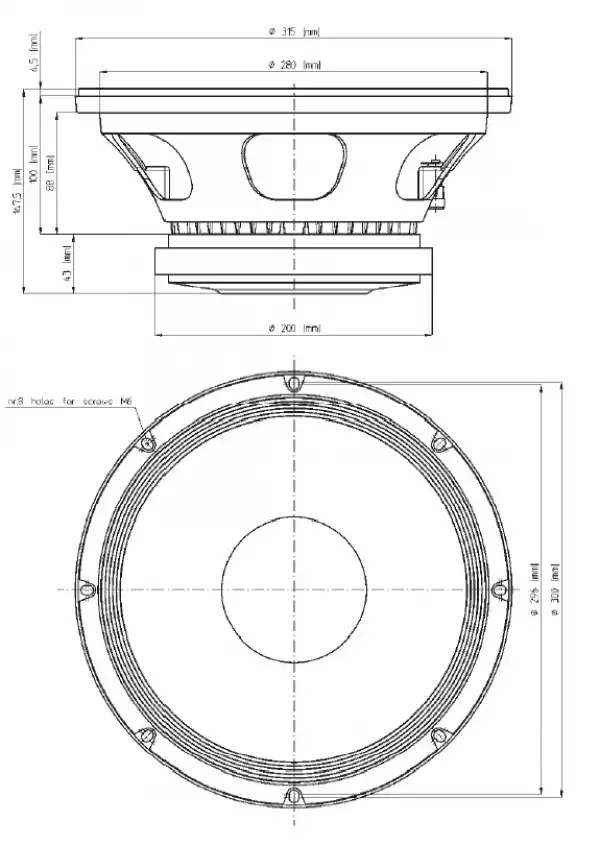

| MOUNTING INFORMATIONS | |
| Overall diameter | 315 mm (12,4 in) |
| N. of mounting holes | 8 |
| Mounting holes diameter | 7,15 mm (0,28 in) |
| Bolt circle diameter | 296 - 300 mm (11,65 - 11,8 in) |
| Front mount baffle cutout ø | 282 mm (11,1 in) |
| Rear mount baffle cutout ø | 282 mm (11,1 in) |
| Total depth | 147,5 mm (5,82 in) |
| Flange and gasket thickness | 16,5 mm (0,65 in) |
| Net weight | 8,0 kg (17,66 lb) |
| Shipping weight | 8,8 kg (19,43 lb) |
| CardBoard Packaging dimensions | 332 x 332 x 184 mm (13,07 x 13,07 x 7,24 in) |
FREQUENCY RESPONSE CURVE OF 12MB600 MADE ON 50 LIT. ENCLOSURE TUNED 60HZ IN FREE FIELD (4PI) ENVIRONMENT. ENCLOSURE CLOSES THE REAR OF THE DRIVER. THE THIN LINE REPRESENTS 45 DEG. OFF AXIS FREQUENCY RESPONSE
FREE AIR IMPEDANCE MAGNITUDE CURVE
