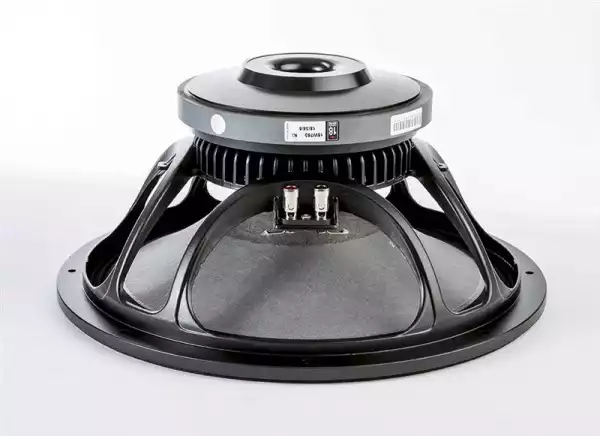

Eighteensound 15W750 - Zvučnik
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!
The 15W750 low frequency transducer meets the specific market demand for a loudspeaker which combines good linearity and efficiency with high power handling capabilities, containing a 75 mm Ø aluminum voice coil. Although primarily intended for use in tuned reflex enclosures, the versatile characteristics of the 15W750 render it suitable for a wide variety of enclosure types, particularly as a subwoofer or as a LF driver in 2 systems. When used in a 2-way system, we recommend a 1.4" or 2" exit compression driver in order to obtain the best sound quality. The deep profile curvilinear paper cone has been made using a special high strength wood pulp and designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by an unusually deep profile, triple-roll suspension formed of a linen-like material which is more resistant to aging and fatigue than the traditional cotton-based materials used in conventional surrounds. The 75 mm Ø aluminum voice coil employs the Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. The magnetic structure has been optimized using our in-house FEA CAD resource that has maximized the flux density in the voice coil gap. Excellent heat dissipation has also been achieved by incorporating air channels between the basket and the magnetic top plate. Due to the increase in use of audio systems at outdoor events, the ability of the 15W750 to perform in adverse weather conditions or in areas of high humidity is a great advantage. This has been achieved using exclusive treatments which enable the cone and the magnetic plate to resist corrosion and render the cone water repellent at the same time.
Key Features
- 97 dB SPL 1W / 1m average sensitivity
- 75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
- 1200 W program power handling
- Long excursion, linear travel suspension design
- Weather protected cone and plates for outdoor usage
- Generous low frequency output make it suitable for 2-way systems and subwoofer applications
General Specifications
| Nominal Diameter | 380 mm (15 in) |
| Rated Impedance | 8 Ohm |
| AES Power | 600 W |
| Program Power | 1200 W |
| Peak Power | 2500 W |
| Sensitivity | 97 dB |
| Frequency Range | 50 - 4300 Hz |
| Power Compression @-10dB | 1,0 dB |
| Power Compression @-3dB | 2,8 dB |
| Power Compression @Full Power | 4,0 dB |
| Max Recomm. Frequency | 1800 Hz |
| Recomm. Enclosure Volume | 80 - 140 lt. (2,82 - 4,95 cuft) |
| Minimum Impedance | 6,1 Ohm at 25°C |
| Max Peak To Peak Excursion | 38 mm (1,50 in) |
| Voice Coil Diameter | 75 mm (3 in) |
| Voice Coil winding material | Aluminum |
| Suspension | Triple-roll, Polycotton |
| Cone | Curvilinear, high damping pulp |
Thiele Small Parameters
| Fs | 39 Hz |
| Re | 5,1 Ohm |
| Sd | 0,091 sq.mt. (141,05 sq.in.) |
| Qms | 9,34 |
| Qes | 0,39 |
| Qts | 0,37 |
| Vas | 218 lt. (7,70 cuft) |
| Mms | 88 gr. (0,19 lb) |
| BL | 17,6 Tm |
| Linear Mathematical Xmax | ± 8 mm (± 0,31 in) |
| Le (1kHz) | 1,10 mH |
| Ref. Efficiency 1W@1m (half space) | 97,2 dB |
Mounting information
| Overall diameter | 393 mm (15,47 in) |
| N. of mounting holes and bolt | 8 |
| Mounting holes diameter | 7,15 mm (0,28 in) |
| Bolt circle diameter | 371 mm (14,6 in) |
| Front mount baffle cutout ø | 354 mm (13,94 in) |
| Rear mount baffle cutout ø | 357 mm (14,06 in) |
| Total depth | 184,5 mm (7,26 in) |
| Flange and gasket thickness | 13,5 mm (0,53 in) |
| Net weight | 7,6 kg (16,7 lb) |
| Shipping weight | 9 kg (19,84 lb) |
| Packaging Dimensions | 405 x 405 x 252 mm (15,94 x 15,94 x 9.92 in) |
The 15W750 low frequency transducer meets the specific market demand for a loudspeaker which combines good linearity and efficiency with high power handling capabilities, containing a 75 mm Ø aluminum voice coil. Although primarily intended for use in tuned reflex enclosures, the versatile characteristics of the 15W750 render it suitable for a wide variety of enclosure types, particularly as a subwoofer or as a LF driver in 2 systems. When used in a 2-way system, we recommend a 1.4" or 2" exit compression driver in order to obtain the best sound quality. The deep profile curvilinear paper cone has been made using a special high strength wood pulp and designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by an unusually deep profile, triple-roll suspension formed of a linen-like material which is more resistant to aging and fatigue than the traditional cotton-based materials used in conventional surrounds. The 75 mm Ø aluminum voice coil employs the Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. The magnetic structure has been optimized using our in-house FEA CAD resource that has maximized the flux density in the voice coil gap. Excellent heat dissipation has also been achieved by incorporating air channels between the basket and the magnetic top plate. Due to the increase in use of audio systems at outdoor events, the ability of the 15W750 to perform in adverse weather conditions or in areas of high humidity is a great advantage. This has been achieved using exclusive treatments which enable the cone and the magnetic plate to resist corrosion and render the cone water repellent at the same time.
