EMINENCE KAPPA PRO 15LF2
Šifra: 9032
Na stanju
Regularna cena:
28.680,00 rsd
14.100,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
22.680,00 rsd
Novogodišnja cena *:
16.920,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
11.760,00 rsd
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Svetogorska 9, Beograd
novgodisnja Akcija

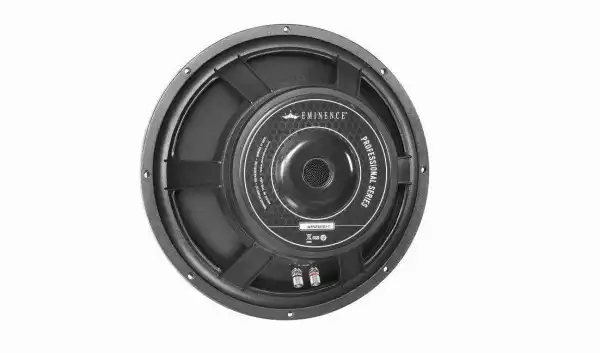

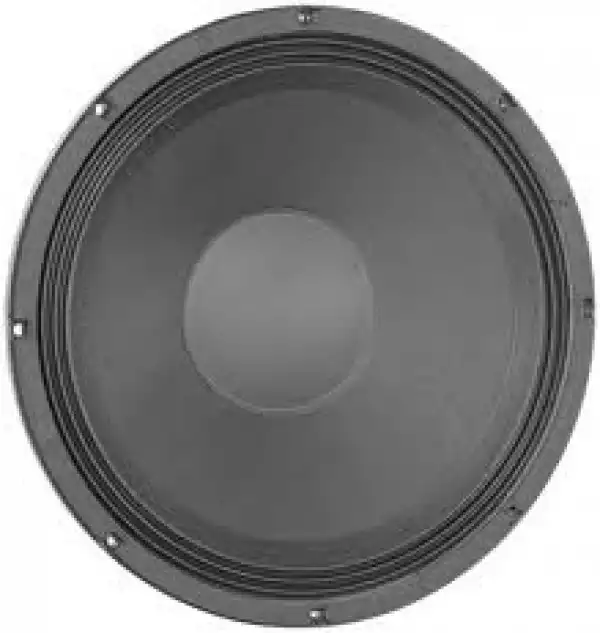

Eminence KAPPA PRO 15LF2
Long throw, low frequency woofer recommended for pro audio in a vented bass enclosure.
Eminence KAPPA PRO 15LF2
Long throw, low frequency woofer recommended for pro audio in a vented bass enclosure.
Specification |
|
| Nominal Basket Diameter | 15", 381mm |
| Nominal Impedance* | 8 ohms |
| Power Rating** | |
| Watts | 600W |
| Music Program | 1200W |
| Resonance | 35Hz |
| Usable Frequency Range | 38Hz - 1.8kHz |
| Sensitivity*** | 97.8dB |
| Magnet Weight | 120 oz. |
| Gap Height | 0.37", 9.53mm |
| Voice Coil Diameter | 3", 76.2mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 35Hz |
| DC Resistance (Re) | 6.5 |
| Coil Inductance (Le) | 1.4mH |
| Mechanical Q (Qms) | 7.3 |
| Electromagnetic Q (Qes) | 0.32 |
| Total Q (Qts) | 0.3 |
| Compliance Equivalent Volume (Vas) | 198.8 liters / 7 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 571.2cc |
| Mechanical Compliance of Suspension (Cms) | 0.2mm/N |
| BL Product (BL) | 21.6 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 102 grams |
| Efficiency Bandwidth Product (EBP) | 112 |
| Maximum Linear Excursion (Xmax) | 6.7mm |
| Surface Area of Cone (Sd) | 856.3 cm2 |
| Maximum Mechanical Limit (Xlim) | 18mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 76.5-164 liters / 2.7-5.8 cu.ft. |
| Driver Volume Displaced | 262.8 cu.in. / 4.31 liters |
| Overall Diameter | 15.21", 386.4mm |
| Baffle Hole Diameter | 14", 355.5mm |
| Front Sealing Gasket | Fitted as standard |
| Rear Sealing Gasket | Fitted as standard |
| Mounting Holes Diameter | 0.28", 7.1mm |
| Mounting Holes B.C.D. | 14.56", 369.9mm |
| Depth | 6.57", 167mm |
| Net Weight | 22.3 lbs, 10.1 kg |
| Shipping Weight | 24.8 lbs, 11.3 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented and extended core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
