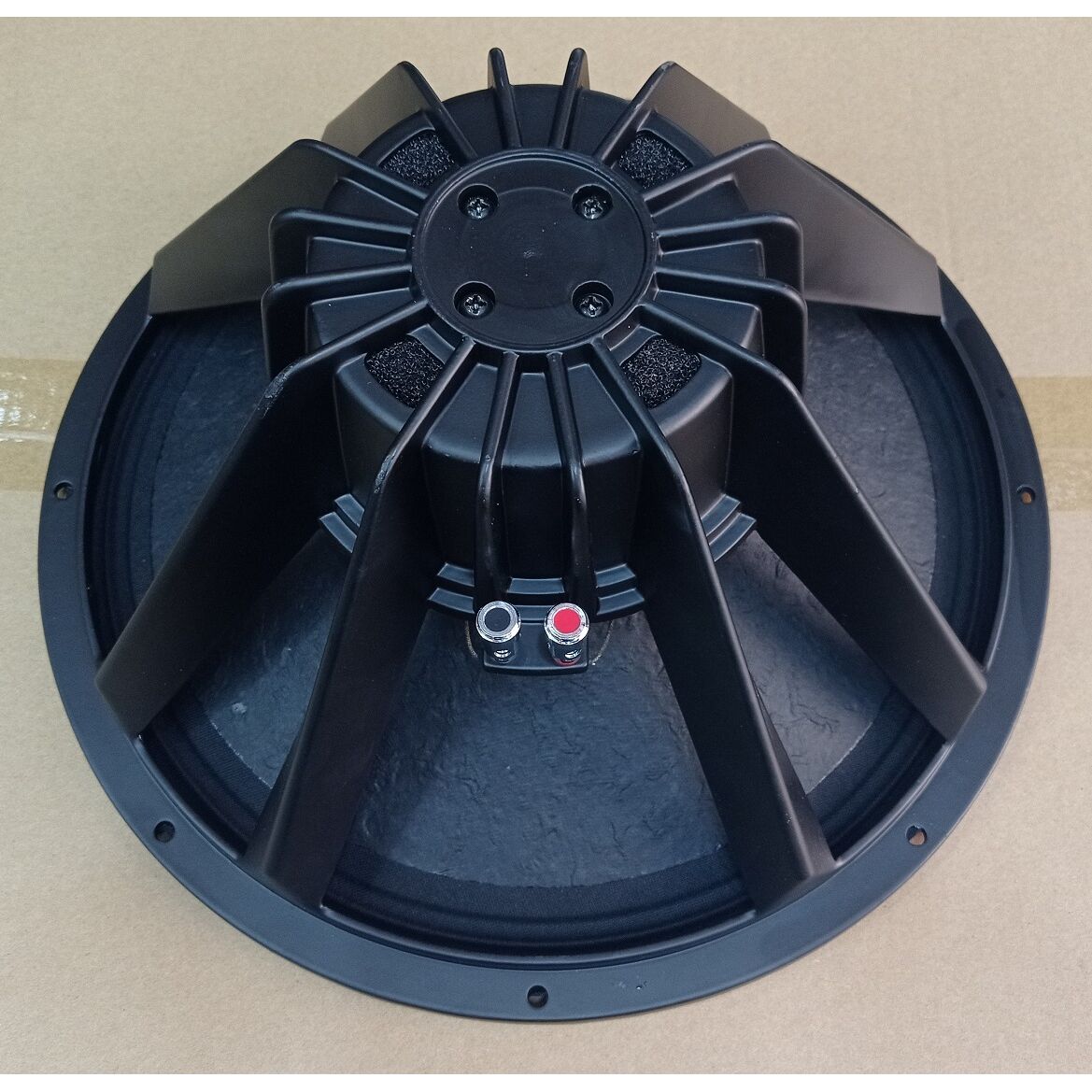

FBT (B&C) Loudspeaker 15/223B 8ohm
Šifra: 6064
Na stanju
30.798,00 rsd
25.665,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Centralni magacin
15/223B-8 (equivalent) Woofer Neodymium Speaker 15” Inch 38 Cm 800W 8 Ohm
NOMINAL SPECIFICATIONS
Nominal diameter 380 mm (15 in)
Maximum External Diameter 393 mm (15.47 in)
Distance between fixing holes 374 mm (14.72 in)
Recess Hole Diameter 356 mm (14.02 in)
Depth 165 mm (6.50 in)
Flange and Gasket Thickness 13.1 mm (0.52 in)
TECHNICAL PARAMETERS
Nominal Impedance 8 Ohms
Rated Power (AES) (1) 400W
Maximum Power (2) 800W
Efficiency (1W/1m) 99dB
Frequency Range 35÷4000 Hz
Coil diameter 77 mm (3 in)
Support Material Glass fiber
Winding Height 15 mm (0.59 in)
Air gap height 10.5 mm (0.41 in)
Flux Density 1.15T
Magnet Type Neodymium pad
Basket material Aluminum
