MARTIN WISMAN HPLX 15 - Zvučnik
Šifra: 14101
Na stanju
Regularna cena:
16.680,00 rsd
6.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
8.280,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
8.400,00 rsd
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Cara Dušana 85, Niš
- Svetogorska 9, Beograd
- Centralni magacin

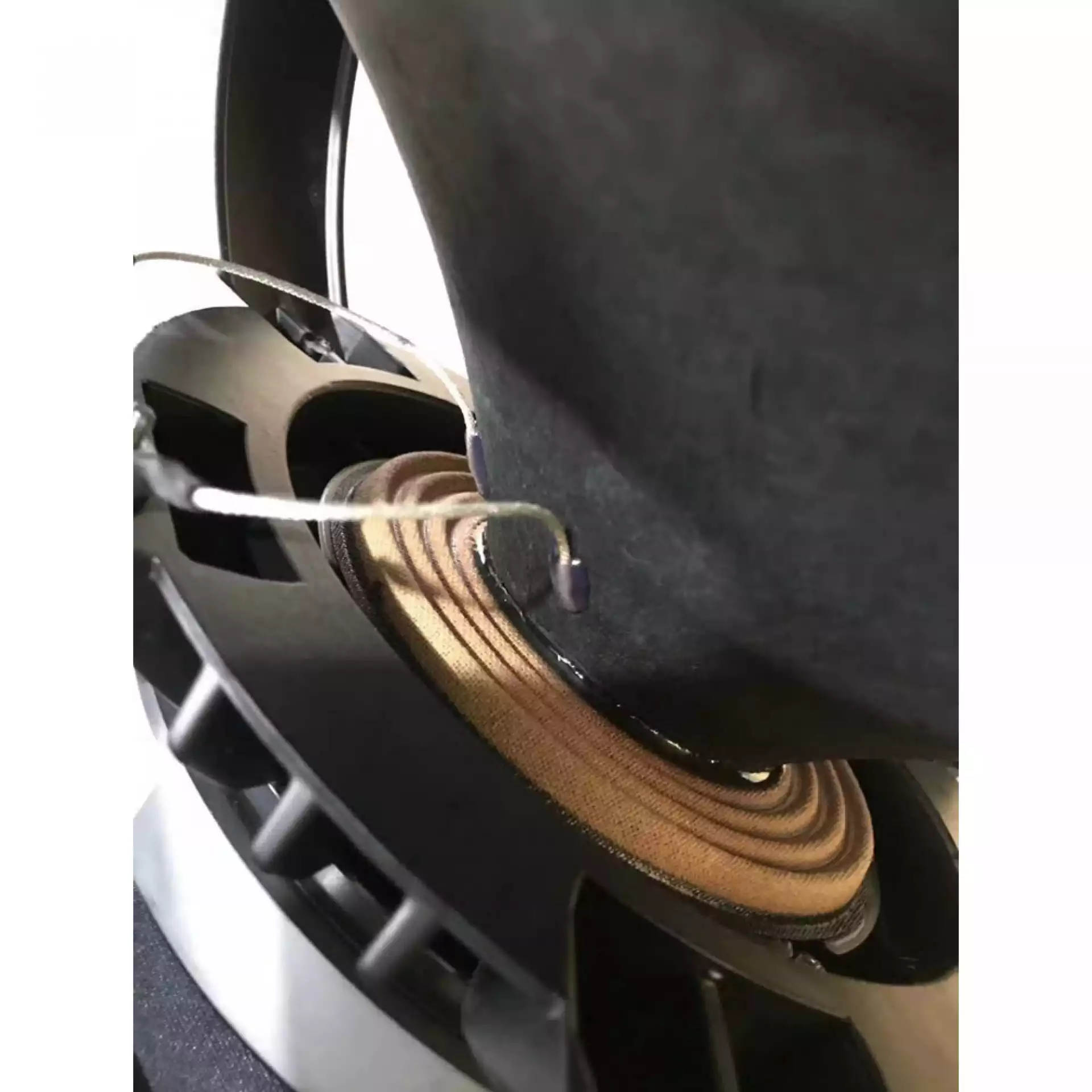

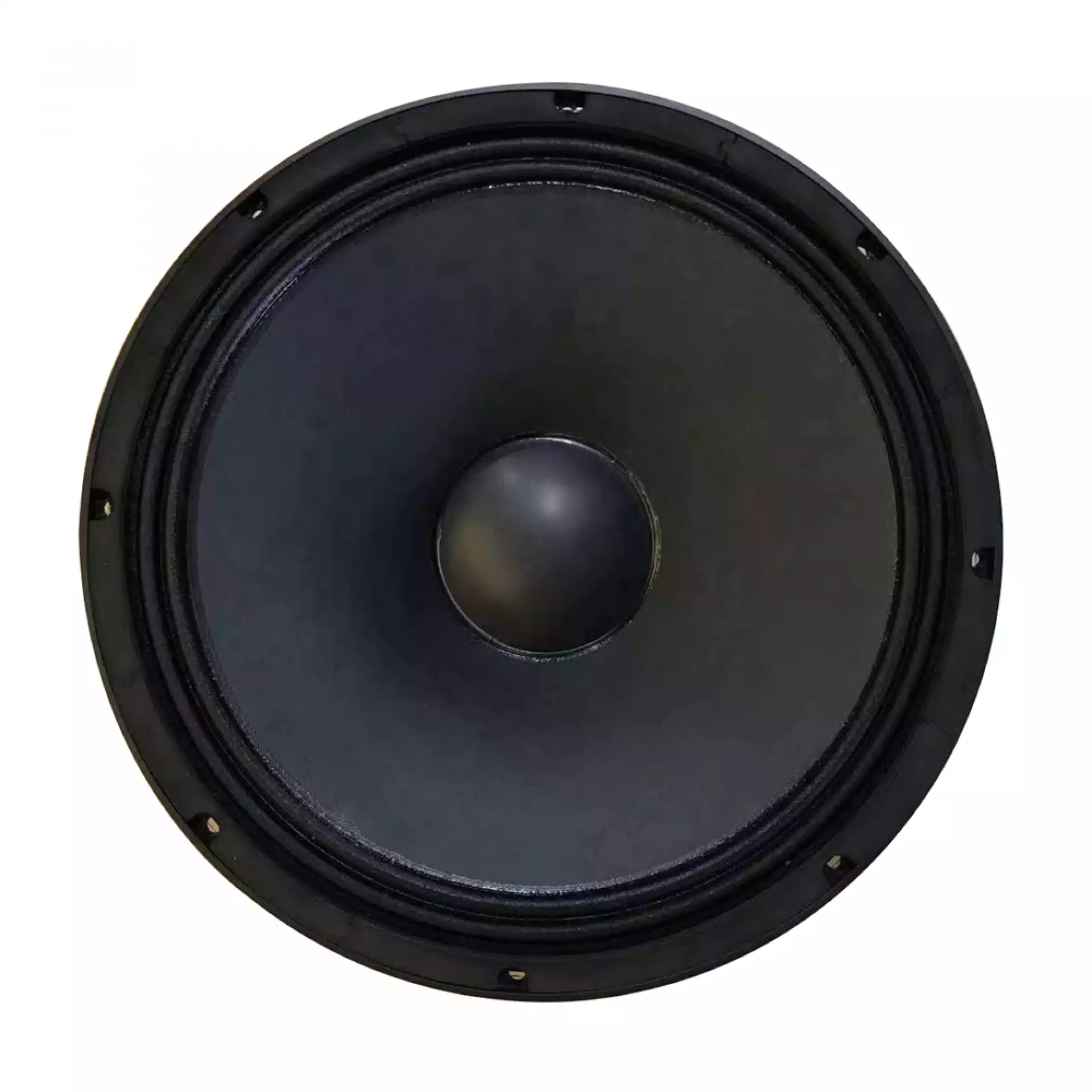

Introduce：15 inch Loudspeaker
1- Model: HPLX 15
2- Rated Impedance: 8Ω
4- Power Handling: 300 W
5- Voice Coil Diameter: 75.5mm / 3 inch
6- Magnet:Φ190mm Ferrite Ring
| General Specifications | ||
| Nominal Diameter | 380mm/15 inch | |
| Nominal Impedance | 8Ω | |
| AES Power Handing | 300W | |
| Continuous Program Power | 600W | |
| Sensitivity 1W/1M | 95.4dB | |
| Frequency Range | 39-4KHz | |
| Voice Coil Diameter | 75.5mm/3 inch | |
| Windinig Material | Copper | |
| Former Material | Kapton | |
| Winding Depth | 16mm | |
| Magnetic Gap Depth | 8mm | |
| surround material | Polycotton | |
| surround Design | M-roll | |
| Magnet | Φ190 | Ferrite Ring |
| Thiele & Small Parameters | ||
| Resonance Frequency | Fs | 39Hz |
| DC Resistance | Re | 5.1Ω |
| Mechanical Factor | Qms | 8.89 |
| Electrical Factor | Qes | 0.44 |
| Total Factor | Qts | 0.42 |
| BL Factor | BL | 17.34T.m |
| Effective Moving Mass | Mms | 105.07gr |
| Compliance | Cms | 157.24μ M/N |
| Equivalent Cas Air Load | Vas | 163.34dm3 |
| Effettive Piston Area | Sd | 855.3cm2 |
| η(Eta Zero) | η0 | 2.16% |
| Mountiong & Shipping Information | ||
| Overall Diameter | 396mm | |
| Bolt circle diameter | 378mm | |
| Baffle Cutout Diameter | 356mm | |
| Depth | 155mm | |
| Net Weight | 6.96kg | |
| Shipping Weight | 67.5kg | |
| Shipping Box(Single) | 39.5x39.5x18cm | |
