Eighteensound 18LW1400 8 Ohm
Šifra: 12463
Na stanju
Regularna cena:
32.280,00 rsd
21.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
26.280,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
6.000,00 rsd
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Svetogorska 9, Beograd

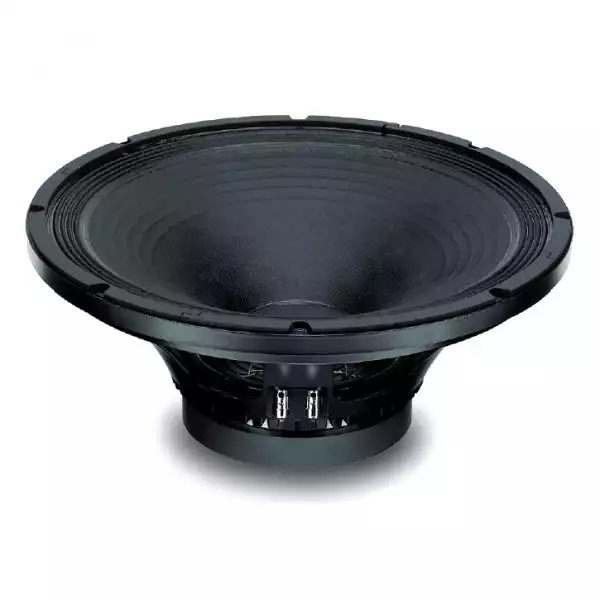

18” Ferrite Chassis Driver
18” Ferrite Chassis
- 1000 Watt AES
- 8 Ohm
- 98 dB 1W/1M
- 28 - 2500 Hz
- Voice coil 4”
- Qts 0.29
- Fs 31 Hz
- Weight: 13.3 kg
General Specifications
| Nominal Diameter | 460 mm (18 in) |
| Rated Impedance | 8 Ohm |
| AES Power | 1000 W |
| Program Power | 1400 W |
| Peak Power | 7000 W |
| Sensitivity | 98 dB |
| Frequency Range | 28 - 2500 Hz |
| Power Compression @-10dB | 0,8 dB |
| Power Compression @-3dB | 2,1 dB |
| Power Compression @Full Power | 3,0 dB |
| Max Recomm. Frequency | 500 Hz |
| Recomm. Enclosure Volume | 130 - 350 lt. (4,59 - 12,36 cuft) |
| Minimum Impedance | 6,4 Ohm at 25°C |
| Max Peak To Peak Excursion | 50 mm (1,97 in) |
| Voice Coil Diameter | 100 mm (4 in) |
| Voice Coil winding material | copper |
| Suspension | Triple roll, Polycotton |
| Cone | Straight Ribbed, carbon fiber reinforced paper |
Thiele Small Parameters
| Fs | 31 Hz |
| Re | 5 Ohm |
| Sd | 0,1225 sq. mt. (189,88 sq. in.) |
| Qms | 7,2 |
| Qes | 0,31 |
| Qts | 0,29 |
| Vas | 297 lt. (10,49 cuft) |
| Mms | 190 gr. (0,42 lb) |
| BL | 24,7 Tm |
| Linear Mathematical Xmax | ± 9 mm (± 0,35 in) |
| Le (1kHz) | 2,3 mH |
| Ref. Efficiency 1W@1m (half space) | 96,5 dB |

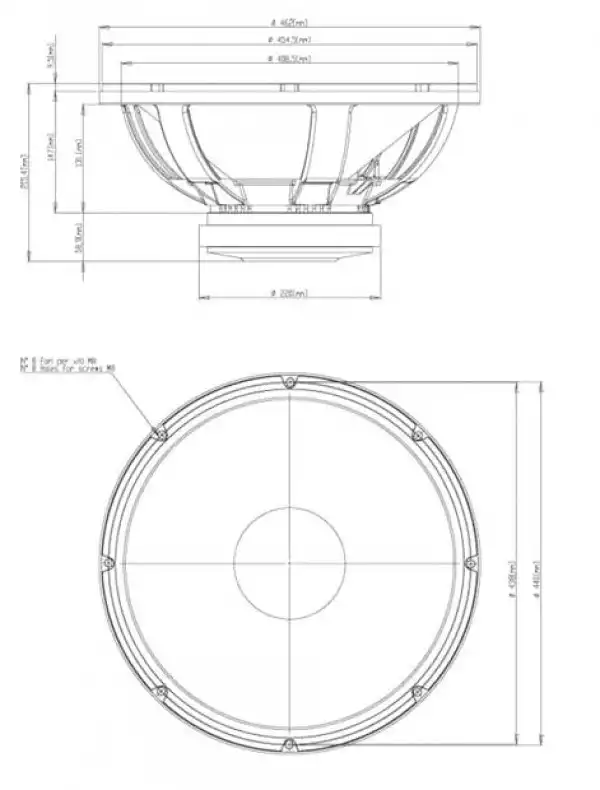

Mounting information
| Overall diameter | 462 mm (18,18 in) |
| N. of mounting holes and bolt | 8 |
| Mounting holes diameter | 8,5 mm (0,33 in) |
| Bolt circle diameter | 438-440 mm (17,24-17,32 in) |
| Front mount baffle cutout ø | 416 mm (16,38 in) |
| Rear mount baffle cutout ø | 422 mm (16,61 in) |
| Total depth | 215,4 mm (8,48 in) |
| Flange and gasket thickness | 26 mm (1,02 in) |
| Net weight | 13,3 kg (29,36 lb) |
| Shipping weight | 14,9 kg (32,9 lb) |
| Packaging Dimensions | 482 x 482 x 257 mm (19 x 19 x 10,1 in) |
