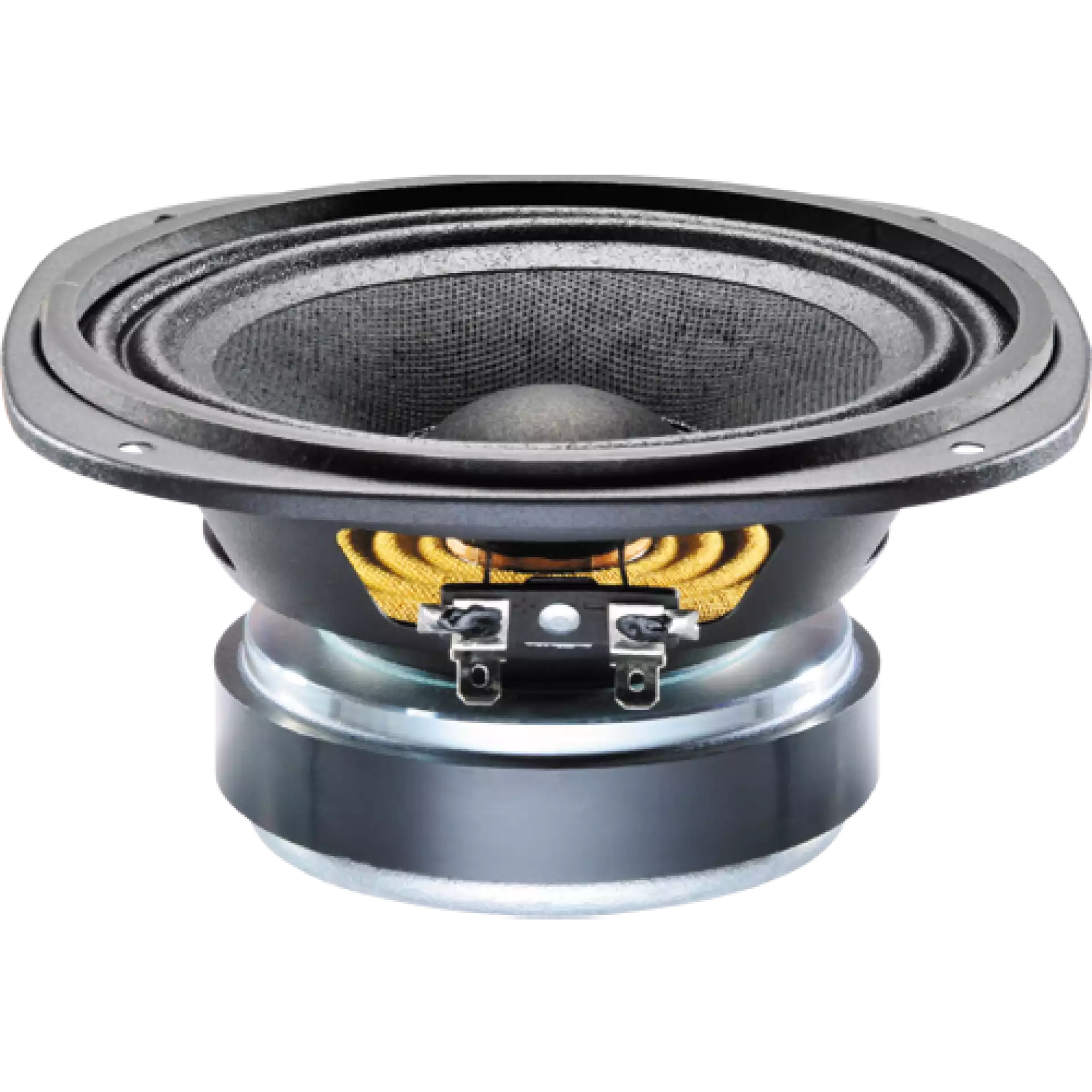

CELESTION TF 0510 - Zvučnik
Šifra: 3287
Na stanju
4.200,00 rsd
3.500,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Ugrinovački Put 10n, Zemun
- Svetogorska 9, Beograd
- Centralni magacin
Multi-purpose 5" speaker drive unit delivering clear bass and mid frequencies.
Frequency Response and Impedance Curves
- Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
- Continuous Power Rating is defined as 3dB greater than the AES rating.
- Tested as per the EIA-426-A standard.
- Measured on axis at 1W, 1m in 2Π anechoic environment.
- Xmax derived from: (voice coil winding width-gap depth)/2.
- Small signal parameters measured after unit subjected to pre-conditioning signal.
General Specifications
Nominal diameter
127mm/5in
Power rating1
30Wrms
Continuous power rating2
60W
EIA power rating3
50W
Nominal impedance
8Ω
Sensitivity4
91dB
Frequency range
130-8,000Hz
Voice coil diameter
25mm/1in
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
0.37kg/13oz
Coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Xmax5
1.1mm/0.04in
Gap depth
5mm/0.20in
Voice coil winding width
7.3mm/0.29in
Small Signal Parameters
D
0.10m/3.94in
Fs
128.1Hz
Mms
7.02g/0.25oz
Qms
2.376
Qes
0.768
Mmd
5.3g/0.187oz
Qts
0.6580
Re
6.32Ω
Vas
7.38lt/0.26ft3
BI
6.82Tm
Cms
0.22mm/N
Rms
2.38kg/s
Le (at 1kHz)
0.33mH
Mounting Information
Overall diameter
136 x 151mm/5.35in x 5.94in
Overall depth
68mm/2.68in
Cut-out diameter
117mm/4.61in
Mounting slot dimensions
Ø 4.5mm/0.18in
Number of mounting slots
4
Mounting PCD range
140mm/5.51in
Unit weight
1.0kg/2.2lb
Packed Dimensions & Weight
Single pack size W x D x H
170mm x 180mm x 70mm
/6.7in x 7.1in x 2.8in
Single pack weight
1.5kg/3.3lb
Multi pack size W x D x H
320mm x 550mm x 190mm
/12.6in x 21.7in x 7.5in
Multi pack weight
15kg/33lb
