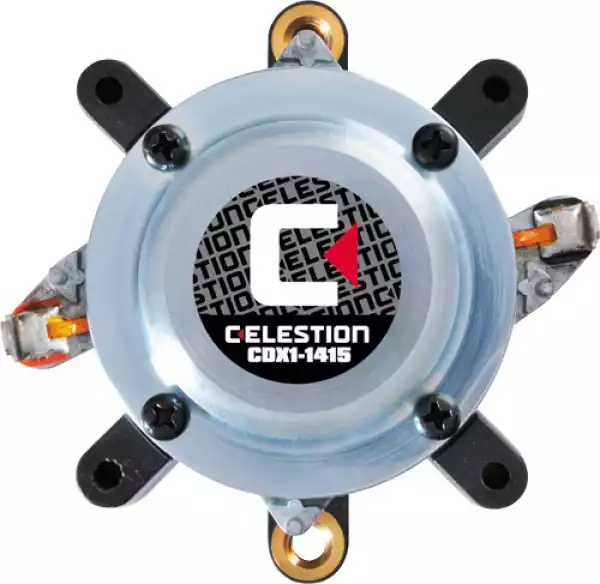

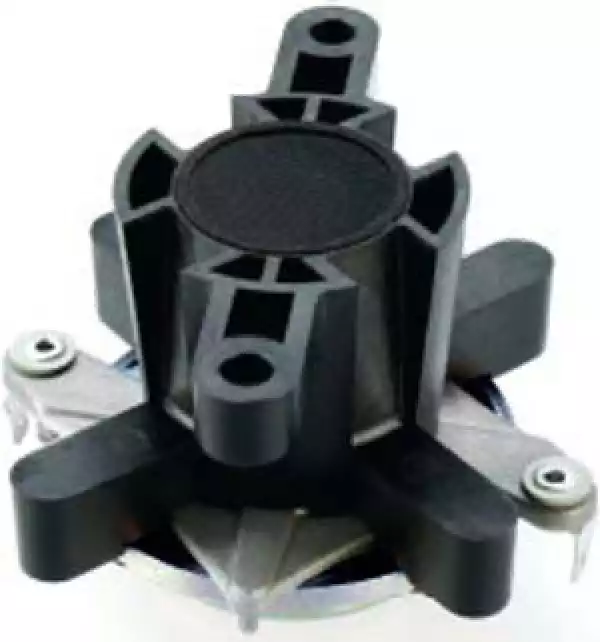

CELESTION CDX1 1415 - Visokotonac
Šifra: 2293
Na stanju
3.480,00 rsd
2.900,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Svetogorska 9, Beograd
1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil
20Wrms power handling (AES standard) and 104dB sensitivity
Copper sleeve on pole reduces inductive rise for improved HF performance
Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
Aluminium diaphragm combined with elastomer surround delivers lower distortion performance
Compact pot magnet design reduces weight and minimises stray flux
Suitable for 2-way and 3-way systems
General Specifications
Power rating1 20Wrms
Nominal impedance 8Ω
Frequency range 2000-20,000Hz
Sensitivity2 104dB
Recommended min. crossover (12dB/oct) 2500Hz
Voice coil diameter 35mm/1.4in
Voice coil material Copper clad aluminium
Magnet type Neodymium
Diaphragm material Aluminium
Surround material Elastomer
Mounting Information
Overall width 90mm/3.5in
Overall depth 57mm/2.2in
Fitting Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit 25.4mm/1in
Unit weight 0.25kg/0.6lb
Packed Dimensions & Weight
Single pack size W x D x H 90mm x 90mm x 60mm
/3.5in x 3.5in x 2.4in
Single pack weight 0.5kg/1.1lb
Multi pack (24) size W x D x H 250mm x 350mm x 290mm
/9.8in x 13.8in x 11.4in
- Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
- Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment
