Featuring the unique Eighteen Sound elliptical shape (ESS technology), the XT1086 Constant Coverage High Frequency Horn has been designed for use in sound systems where the highest sound quality is required. With a 1 inch throat entry, the XT1086 has been designed to match the Eighteen Sound 1 inch exit high frequency compression drivers perfectly.The XT1086 maintains nominal 80° Horizontal x 60° Vertical pattern control. It provides consistent on-axis and off-axis frequency response from 1,4kHz to 16kHz in the horizontal plane and from 1,5kHz to 16kHz in the vertical plane. Horn directivity is constant from 1,4kHz. Thanks to its compact vertical mouth dimension, the XT1086 can easily be staked vertically when lower frequency control is required.The main innovation that the XT1086 introduces, is the improved external shape, providing high structural rigidity. This has been developed using exclusive a computer aided vibration analysis system. This product provides low distortion and a spherical wave-front, avoiding reflections and other disadvantages usually associated with diffraction horns. The die-cast aluminum construction provides optimum heat transfer, lowering the driver power compression and improving its general power handling capability.
- 1 inch throat entry
- Unique Eighteen Sound elliptical shape (ESS)
- Flat front and compact size
- Die-cast aluminum construction for best heat transfer
- Uniform on-axis and off-axis frequency response
- 80° x 60° horizontal and vertical constant coverage
- Improved structure strength by exclusive computer aided vibrational analysis
Featuring the unique Eighteen Sound elliptical shape (ESS technology), the XT1086 Constant Coverage High Frequency Horn has been designed for use in sound systems where the highest sound quality is required. With a 1 inch throat entry, the XT1086 has been designed to match the Eighteen Sound 1 inch exit high frequency compression drivers perfectly.
The XT1086 maintains nominal 80° Horizontal x 60° Vertical pattern control. It provides consistent on-axis and off-axis frequency response from 1,4kHz to 16kHz in the horizontal plane and from 1,5kHz to 16kHz in the vertical plane. Horn directivity is constant from 1,4kHz. Thanks to its compact vertical mouth dimension, the XT1086 can easily be staked vertically when lower frequency control is required.
The main innovation that the XT1086 introduces, is the improved external shape, providing high structural rigidity. This has been developed using exclusive a computer aided vibration analysis system. This product provides low distortion and a spherical wave-front, avoiding reflections and other disadvantages usually associated with diffraction horns. The die-cast aluminum construction provides optimum heat transfer, lowering the driver power compression and improving its general power handling capability.
| GENERAL SPECIFICATIONS | |
| Throat Diameter | 25,4 mm (1 in) |
| Horizontal Coverage (-6 dB) | 80° (1 ÷ -8) average range(1,6kHz - 12,5kHz) |
| Vertical Coverage (-6 dB) | 60° (18 ÷ -7) average range(1,6kHz - 12,5kHz) |
| Directivity Index | 15 dB (1.3 ÷ -0,4) average range (1.6kHz - 12.5kHz) |
| Usable Frequency Range | Above 800 Hz |
| Recomm. Cross. Frequency | 1200 Hz or more |
| Sensitivity (on axis) | 110 dB |
| Frequency Range | 1200 Hz ÷ 18kHz |
| Material | Die-cast aluminum |

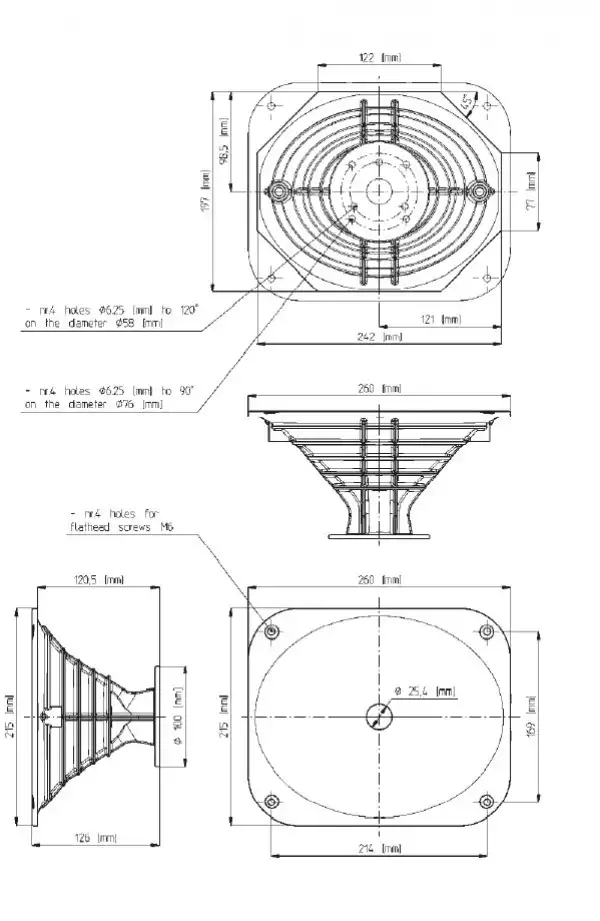

| MOUNTING INFORMATIONS | |
| Mouth Height | 215 mm (8,5 in) |
| Mouth Width | 260 mm (10,2in) |
| Depth | 126 mm (5 in) |
| Mouth Mounting Dimensions | 4 ø 6 holes on the edge of rectangle with 214 mm x 169 mm (8,43 x 6,65 in) sides |
| Net weight | 1 Kg (2,20 lb) |
HORIZONTAL BEAMWIDTH - RED PLOT - VERTICAL BEAMWIDTH - BLUE PLOT - A
DIRECTIVITY INDEX - B
HORIZONTAL POLAR DIRECTIVITY MAP - C
VERTICAL POLAR DIRECTIVITY MAP - D
HORIZONTAL 1/3 OCTAVE POLARS
VERTICAL 1/3 OCTAVE POLARS
