FBT VENTIS 112MA - Aktivni zvučnik
12" + 1" Conical 700w + 200w With DSP Active Stage Monitor
The Ventis 112MA is a dedicated floor monitor for use on small to medium-sized stages. This Active speaker features a a 12" coaxial custom woofer with 2,5" voice coil and 1" exit throat B&C with 1,7" voice coil. The built in amp module features 700W + 200W Delivering 129dB SPL. optional brackets for installation are available
The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12”) coaxial custom woofer with a 64mm (2.5’’) voice coil, 25mm (1”) B&C throat and 44mm (1.7”) voice coil.

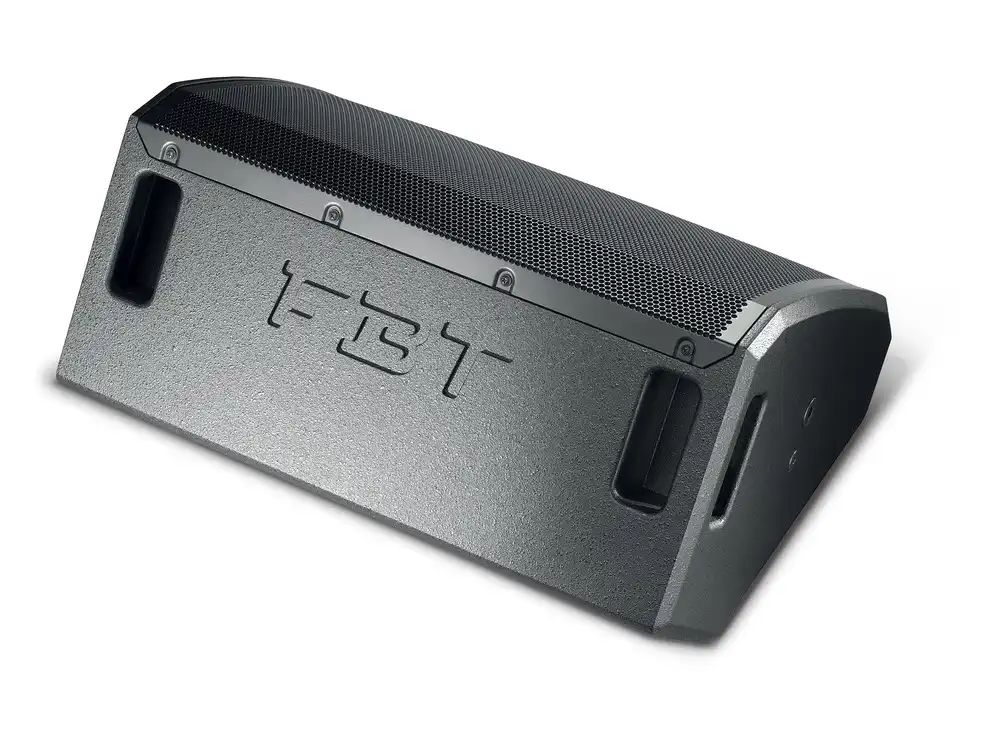

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38’’) stand socket, two integrated carrying handles and an optional wall mount bracket.
Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.
KEY FEATURES
Bi-amped
Speakers equipped: 12" Woofer and 1" tweeter
Performance: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 presets and 2 freely configureable memory slots
Housing material: 15 mm birch plywood
Coverage pattern (nominal): 90° conical
Frequency range: 55 Hz - 20.000 Hz (-6 dB)
Max SPL: 133 dB

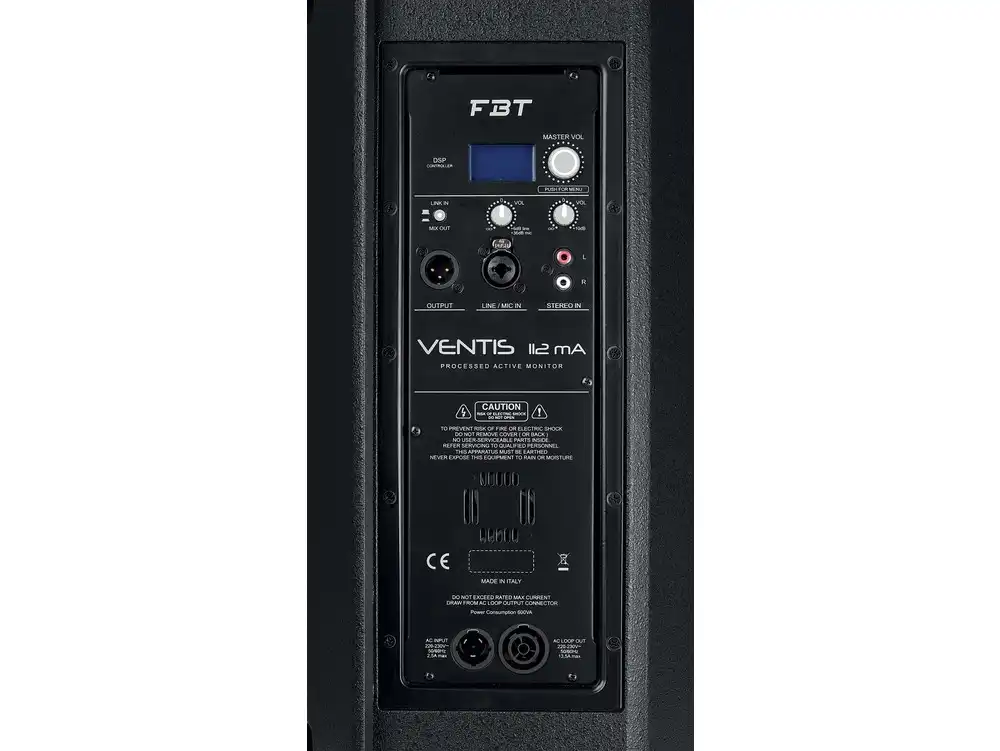

Inputs: XLR / Jack combined input and RCA ("Cinch" stereo)
Left output: XLR male
Dimensions: (W x H x D): 563 x 311 x 452 mm
Weight: 17.5 kg
Colour: Black
