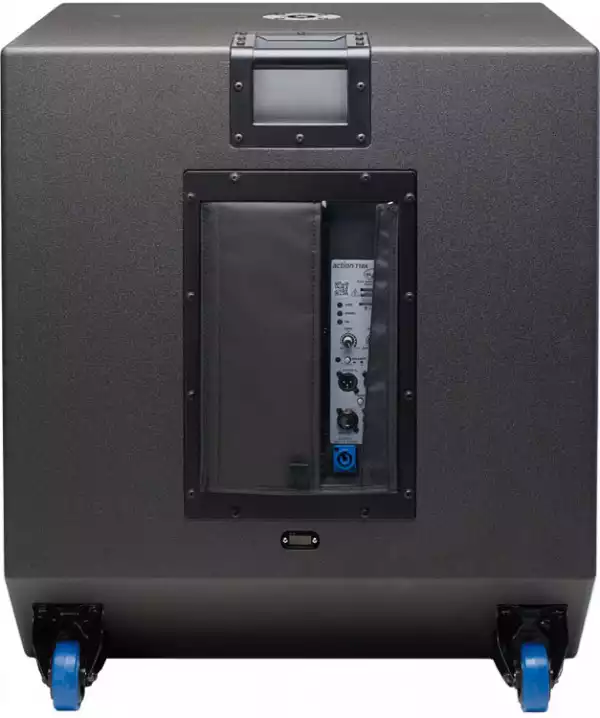

The Action 118A is a powered horn-bass subwoofer system designed to provide extended bass response for the Action full-range cabinets. A powerful 3200 Wpeak Class D amplifier drives a D.A.S. 18LX long excursion bass loudspeaker incorporating a 4″ voice coil for high power handling and output.

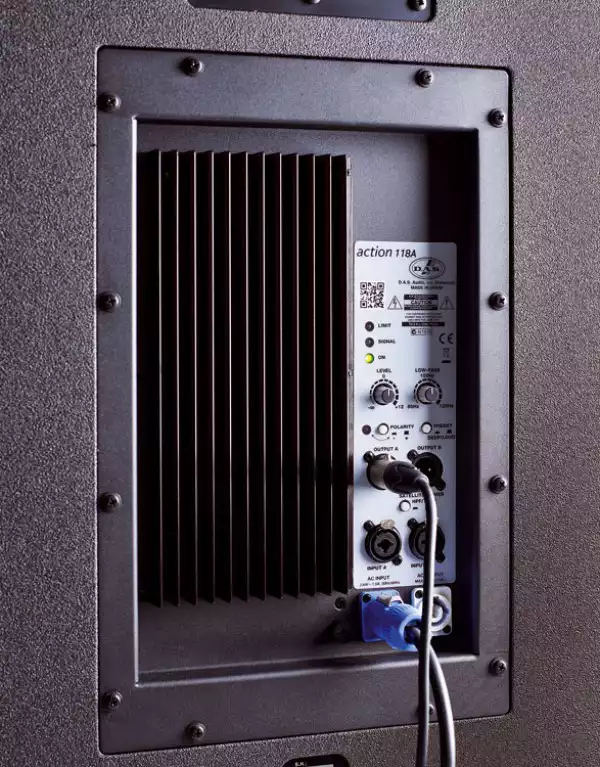

The Action 118A is powered by a Class D amplifier with switch mode power supply (SMPS), digital signal processing (DSP) and a 3200 Wpeak power. The amplifier has a unique EQ switch which allows the user to select a Deep subbass response or a Loud bass response. The system includes two balanced inputs with stereo filtered output connections for satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system.

Nominal LF Amplifier Power 3200 Wpeak,1600 Wcontinuous
(Class D)
Frequency Range (-10 dB) Loud: 50 Hz – 125 Hz
Deep: 45 Hz -125 Hz
Rated Peak SPL at 1 m 137 dB
Internal Crossover Variable LPF 80 Hz-125 Hz
Connectors INPUT: 2 x Female
XLR LOOP THRU: 2 x Male XLR
AC INPUT: powerCON
AC OUTPUT: powerCON
AC Requirements 115 V, 5.4 A, 50 Hz/60 Hz
230 V, 2.7 A, 50 Hz/60 Hz
Enclosure Material Birch Plywood
Color/Finish Black ISO-flex Paint
Dimensions (H x W x D) 79.1 x 69.0 x 56.7 cm
31.14 x 27.17 x 22.32 in
Weight 55 kg (121 lb)
