Class D 1,000W RMS Powered Subwoofer
2,000W Peak Power
Generates up to 128dB SPL
Frequency Response Down to 35 Hz
DLP Digital Processor
Precision Digital Variable Crossover
Flexible Connectivity
Compact Design and Durable Construction
PA Speaker
| Configuration |
Active Subwoofer
|
| Total Power Capacity |
1000 W RMS
2000 W Peak
|
| Amplifier Class |
Class-D
|
Drivers
| LF Driver |
1x 12" / 305 mm Woofer
|
| LF Voice Coil |
3" / 76 mm
|
| Magnet |
Ferrite
|
Performance
| Frequency Response |
35 Hz to 135 Hz -10 dB
|
| Maximum SPL |
128 dB
|
| I/O Impedance |
Input:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
|
| Total Harmonic Distortion/Noise |
< 1%
|

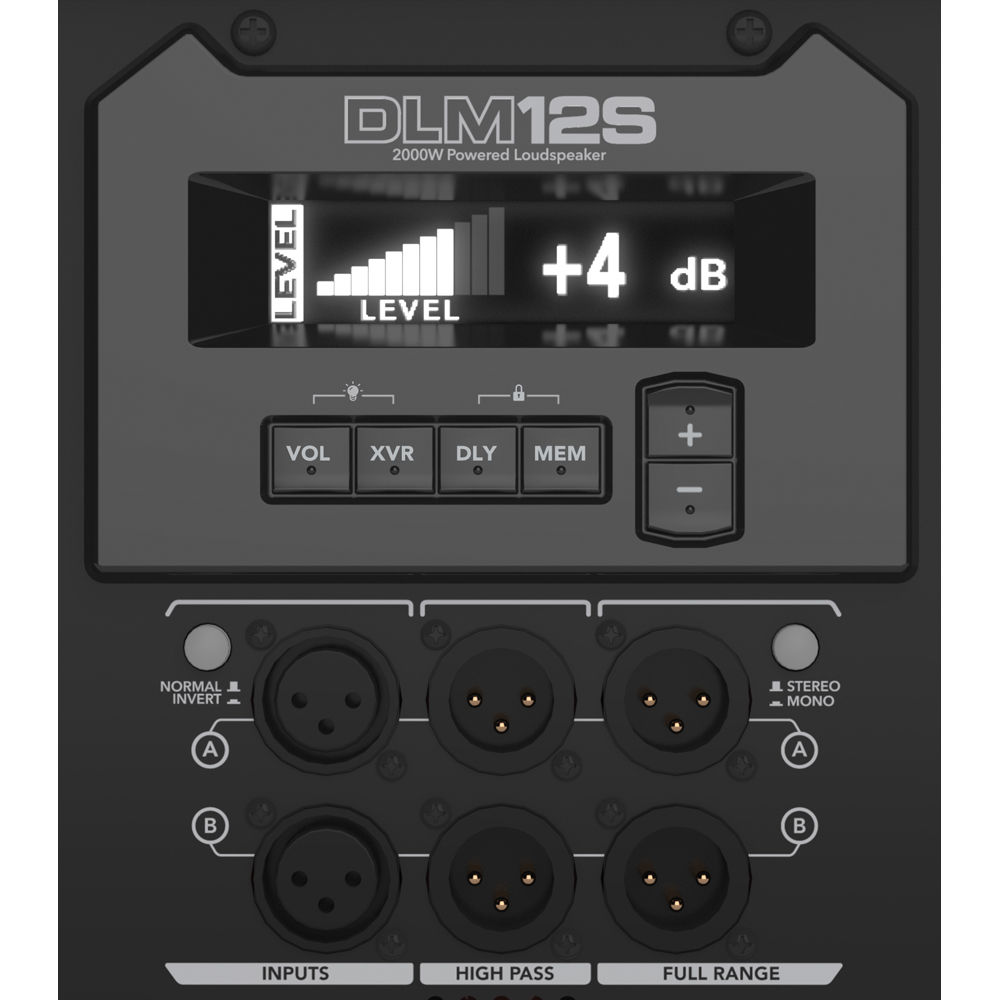

Connectivity
| Audio I/O |
2x XLR 3-Pin Balanced Input
2x XLR 3-Pin Balanced Output
2x XLR 3-Pin Balanced High-Pass Output
|
Signal Processing
| Crossover |
60 to 120 Hz
|
| Alignment Delay |
0 to 300 ms
|
Power
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
|
| AC Power I/O |
1x IEC
|
| Power Consumption |
250 W
|
Physical
| Handles |
2x Side
|
| Cooling |
Fan (Variable Speed)
|
| Construction Material |
Metal Grille, Wood
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
17.9 x 16.4 x 20.8" / 455 x 417 x 529 mm
|
| Weight |
48 lb / 21.7 kg
|
Packaging Info
| Package Weight |
58.2 lb
|
| Box Dimensions (LxWxH) |
27.5 x 23.5 x 23"
|
