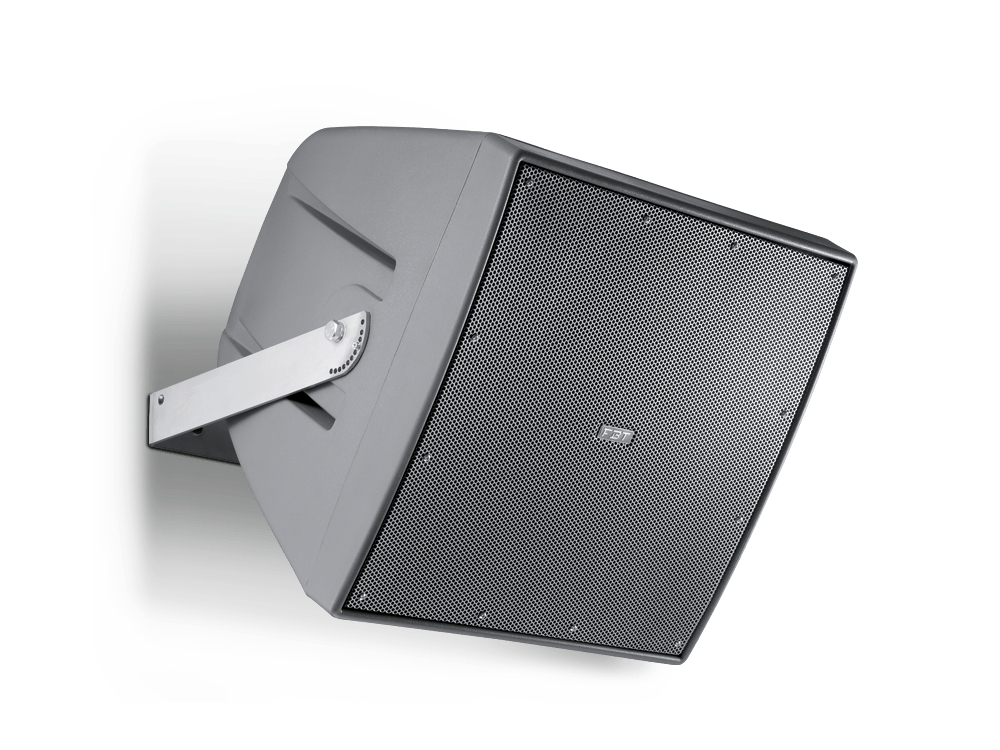

FBT SHADOW 112HC IP55
HIGH PERFORMANCE 12” COAX HORN LOADED, MEDIUM/LONG THROW 600W/8OHM - 132DB SPL
This is a very high performance horn loaded system, to provide maximum intelligibility from the same compact enclosure, with the same dimensions of SHADOW 112CT. Extremely powerful system for voice announcements and music reproduction.
SHADOW 112HC can act as both a musical entertainment loudspeaker and a voice PA loudspeaker at the same time. The wide range, smooth frequency response and high efficiency of SHADOW 112HC ensure excellent quality music reproduction and clear intelligible speech with very low distortion. High performance 12” coax horn loaded, medium/long throw 600W/8ohm - 132dB SPL
12” woofer with 2.5” coil horn loaded
Constant directivity horn 1” HF driver with 1.7” coil
An optional transformer model, SHADOW 112HCT, is also available with 200W/100W power tapping selection
90x60° coverage
4 wires cable to select the desired power tapping
Sturdy molded polyethylene curved enclosure
Water-stop grill with 3 layers of protection
Steel U bracket and other included hardware accessories IP55 weather resistant
Standard grey finish RAL 7011
Configuration: 2 way
Recommended amplifier: 600 W RMS
Long Term power: 300 W
Short term power: 1200 W
Nominal impedance: 8 ohm
Frequency response: 95Hz - 20KHz -6dB
Low Frequency woofer: 12 - 2.5 coil inch
High frequency driver: 1 - 1.7 coil inch
Sensitivity (@1W/1m): 101 dB
Maximum SPL cont/peak: 128/132 dB
Dispersion: 90°x60° HxV
Crossover Frequency: 1.6 KHz
Recommended HP filter: 70hz - 24dboct
Recommended external filter:
Input connector: 4 wire cable
Net Dimension (WxHxD): 430x430x400 - 16.92x16.92x15.74 mm/inch
Net Weight: 21/46.3 kg/lb
