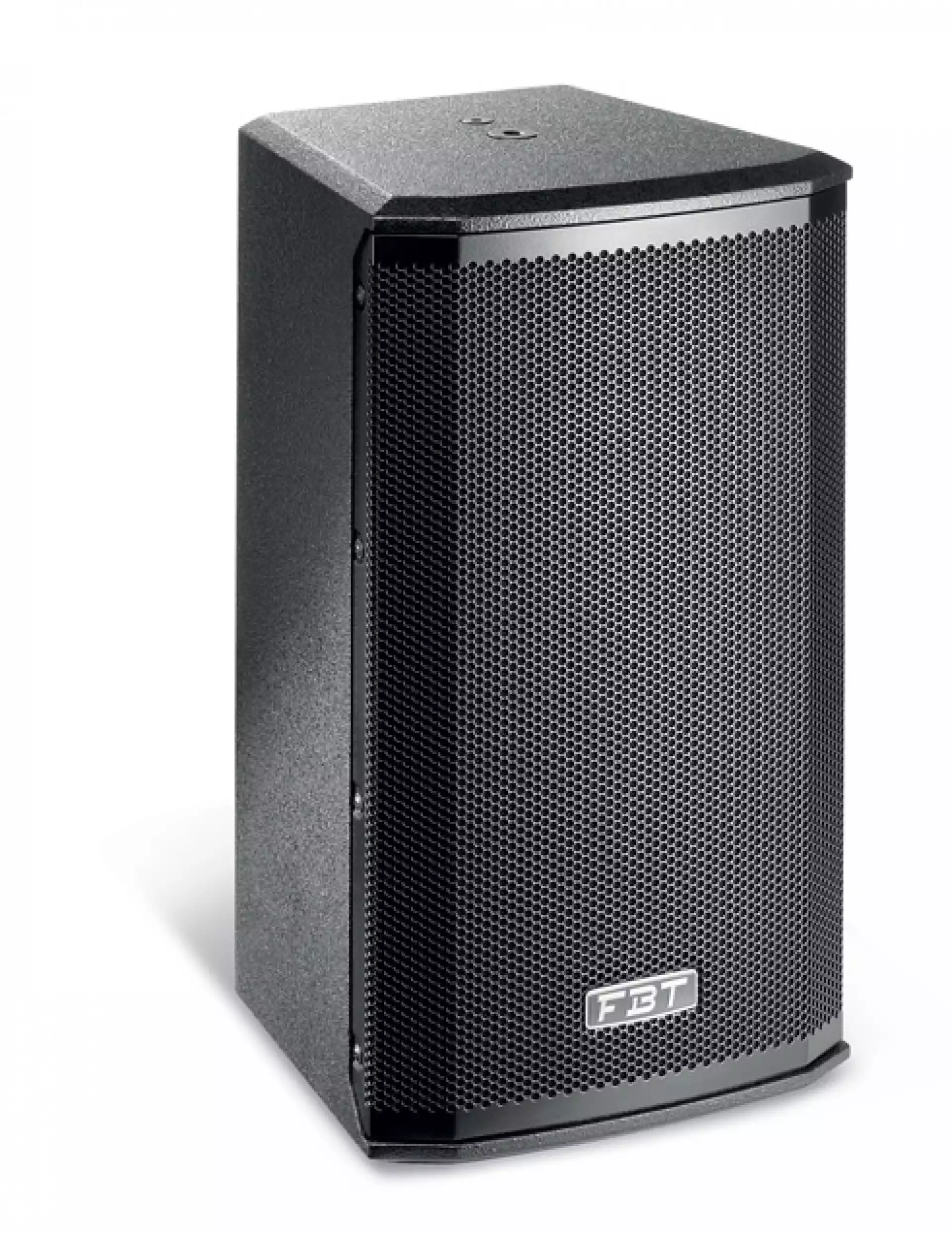

2 Way Passive Speaker 8"+ 1" - 250w
Ventis 108 is part of the Ventis range which are ideal for portable performance or fixed installation. This Passive speaker Features an 8" woofer and a 1" exit 1.4"VC compression driver. Recommended amplifier of 250 Watts at 8 Ohm will deliver 126dB SPL. Connections via 2x Speakon NL4 In + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. Optional brackets for installation are available.
TALY’S AUDIO SPECIALIST INTRODUCES VERSATILE RANGE OF ENCLOSURES FOR PORTABLE PERFORMANCE AND FIXED INSTALLATION
Available in either passive or bi-amplified versions, each of the models - the VENTIS 115, 112, 110, 108 and 206 - has been designed to meet the highest standards in both performance and aesthetic appeal.
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112, 110 and 108 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
The five enclosures are as suitable for fixed installation as they are for use on the stage. M10 points are included as standard while an optional U-bracket can be used for wall-mounting. For use on the road, the VENTIS models include aluminum handles with rubber inserts, a 35mm polemount socket, and a 45° sloped profile for unobtrusive placement on-stage as a monitor.
Meanwhile the multi-purpose VENTIS 206 can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech
intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.
The new coaxial monitors in bass reflex Ventis 112MA and Ventis 115MA expand the active and passive range of the series. Thanks to the B&C custom transducers they are capable of a 132dB SPL. The two enclosures are built with a 15mm birch plywood and they can also be used for fixed installation and FOH thanks to 35mm pole mount socket and to the inserts for optional mounting bracket.
Power for the active VENTIS models comes ourtesy of a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H / AB design.
Finally, DSP on-board the VENTIS enclosures is both user friendly and powerful. Located on the rear of each enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. A total of 6 pre-optimised settings are available (see below), plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.
- ORIGINAL / LIVE The renowned, smooth FBT sound
- VOCAL A special EQ setting to maximise speech intelligibility
- DJ Designed to keep the energy high and your audience dancing
- TOURING The reliability and the roar of the industry’s most popular touring systems
- LOUDNESS The ultimate preset for listening at a medium or low volume
- WARM A special setting to emphasise full-bodied, low-mid frequencies.
- Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
- Speakon NL-4 IN and LINK OUT connectors
- 4 x M5 threaded rigging points and optional mounting hardware
Code: | 41213 |
Configuration: | 2 way |
Recommended amplifier: | 250 W RMS |
Long Term power: | 125 W |
Short term power: | 500 W |
Nominal impedance: | 8 ohm |
Frequency response: | 70Hz - 18KHz -6dB |
Low Frequency woofer: | 8 - 2 coil inch |
High frequency driver: | 1 - 1.4 coil inch |
Sensitivity (@1W/1m): | 95 dB |
Maximum SPL cont/peak: | 120/126 dB |
Dispersion: | 80°x50° rotatable HxV |
Crossover Frequency: | 1.8 KHz |
Recommended HP filter: | 50Hz - 12-24db/oct |
Recommended external filter: | FBT DLM 26 |
Input connector: | 2 x SPEAKON |
Net Dimension (WxHxD): | 274x500x300 / 10.8x19.7x11.8 mm/inch |
Net Weight: | 12.3 / 27.1 kg/lb |
Transport Dimension (WxHxD): | 395x620x375 / 15.5x24.4x14.7 mm/inch |
Transport Weight: | 14.3/31.5 kg/lb |
