MARTIN AUDIO Blackline F10+ - Pasivni zvučnik
Garantujemo najnižu cenu!

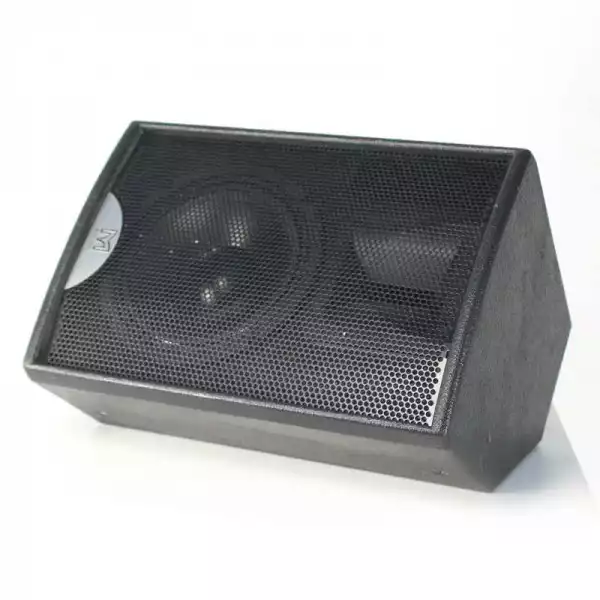

The Blackline F10+ is a versatile, two-way passive system, designed to provide exceptional sound reinforcement and stage monitoring from a very compact enclosure.
It features a powerful 10” (250mm) low frequency driver and a 1” (25mm) HF compression driver mounted on a constant directivity 90° x 50° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation. A demodulating ring fitted to the LF driver reduces distortion and improves the performance at the upper end of the LF driver’s range at high levels. Additionally, the directivity of the LF driver has been matched to the HF horn by a combination of optimisation of the water-resistant LF cone profile and improved crossover design.
Use of a controller with the F10+ is optional. For demanding applications, an M3+ or DX1.5 controller configured to perform EQ and limiter functions is recommended.
- Compact two-way system
- User rotatable 90° x 50° horn
- Flexible mounting options
- Five year limited warranty
| TYPE | Compact, two-way passive |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB -10dB @ 56Hz |
| DRIVERS | 10” (250mm)/2.5” (63.5mm) voice coil LF driver 1” (25mm) exit HF compression driver |
| RATED POWER (2) | 300W AES, 1200W peak |
| RECOMMENDED AMPLIFIER | MA2.0 |
| SENSITIVITY (6) | 96dB |
| MAXIMUM SPL (9) | 121dB continuous, 127dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION (-6dB) | 90 ̊ horizontal, 50 ̊ vertical |
| CROSSOVER | 2.5 kHz passive |
| ENCLOSURE | 27.7 litre, multi-laminate birch ply |
| FINISH | Textured black paint |
| PROTECTIVE GRILLE | Black perforated steel |
| CONNECTORS | 2 x Neutrik NL4 |
| PIN CONNECTIONS | FR+,- : 1+,1-, Link thro’: 2+,2- |
| FITTINGS | 10 x M8, 4 x M8 threaded inserts 1 x mounting pole socket 1 x pocket handle |
| DIMENSIONS | (W) 351mm x (H) 500mm x (D) 317mm (W) 13.8ins x (H) 19.7ins x (D) 12.5ins |
| WEIGHT |
17kg (37lbs)
|
